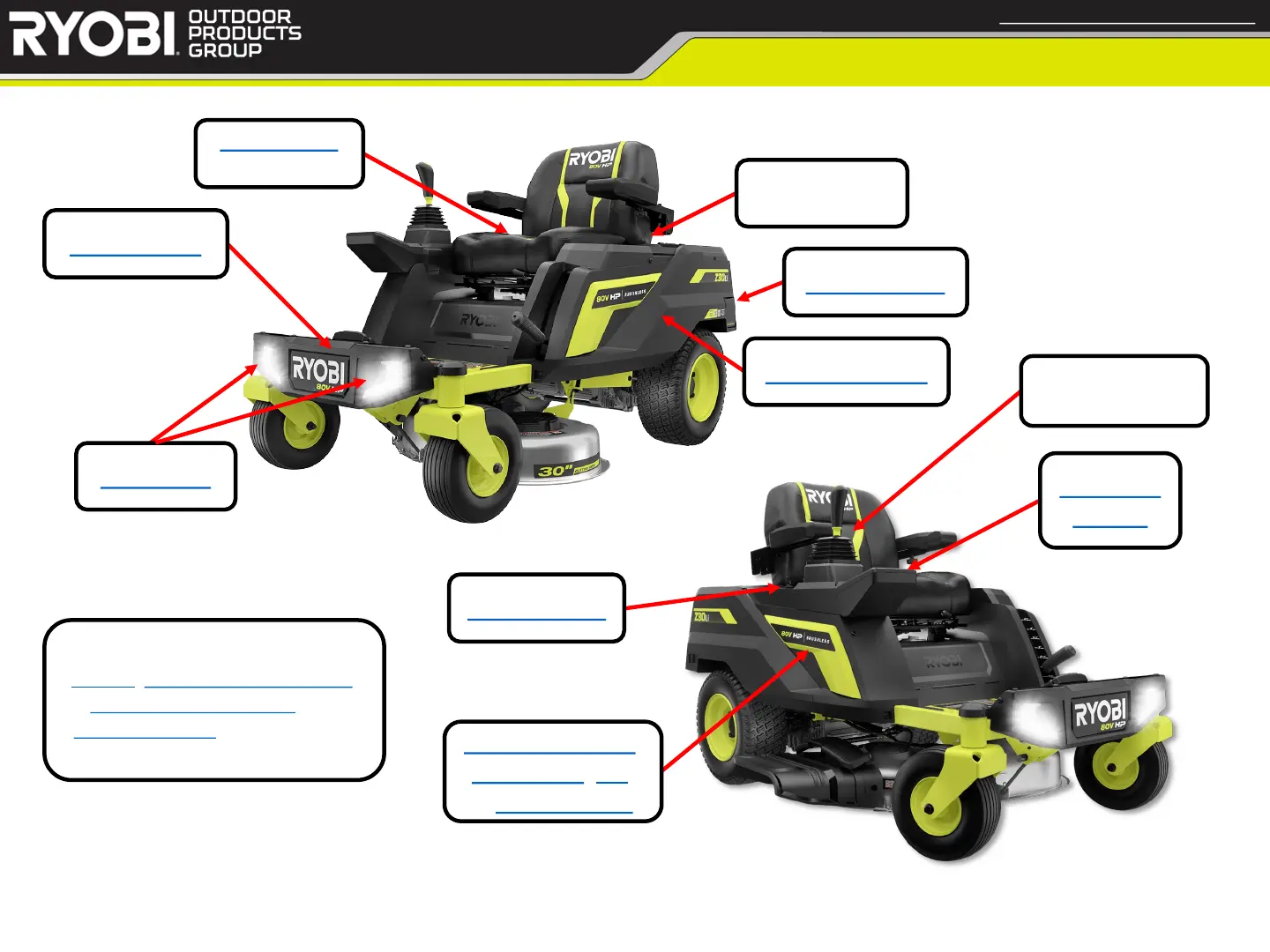

Component Locations
< Return to Table of Contents
RYRM8010 30” ZTR Mower
Access Port*
under seat
Charging Port
Headlights
Brake Switch
*NOTE
Beeper, Drive Motor Controllers,
Deck Motor Controllers
, and
Battery Booster
are accessed via
the Access Port.
Battery Booster
DC-DC Converter,
Main Relay
, TIC,
& Mixing Board
iDRIVE Joystick
LCD Panel
Display
Seat Switch
under seat
Confidential and Proprietary - Property of Techtronic Power Equipment - DO NOT COPY or DISCLOSE
Control Panel
