SYSTEM OVERVIEW—CONTROL PANEL
SYSTEM OVERVIEW
CONTROL PANEL
The Rytec System 3 Drive and Control is a solid-state,
microprocessor-based control system designed exclu-
sively to operate your Rytec high-performance door.
(See Figure 1.) It combines an AC drive with the latest
in door control technology.
The AC drive system controls the drive motor through
soft accelerations and soft decelerations. The operating
parameters are accessed through the up (
▲
), down
(
▼
), and enter (
●
) keys located on the keypad on the
front of the control panel. A two-line display shows all
corresponding control and door status messages.

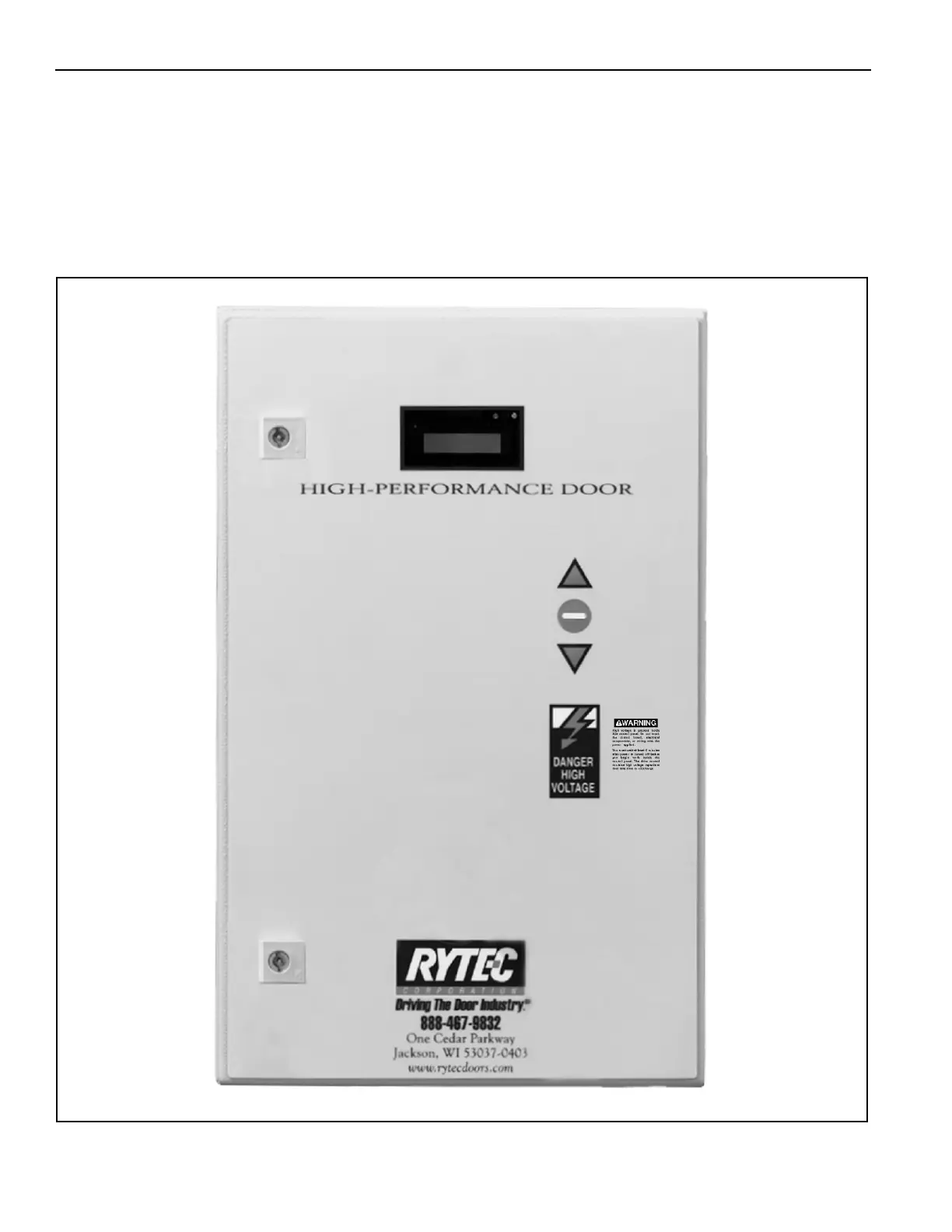

Figure 1
A5500005

RYTEC System 3 Specifications

General

Brand	RYTEC
Model	System 3
Category	Controller
Language	English
