5 Initial Startup
Once mounting and installation of the con::cube have been completed and checked (see section 4) the initial startup of the
s::can monitoring system will require the following actions, in the order presented below:
Connect the s::can spectrometer probes (see section 5.2).
Connect the s::can ISE probes, i::scan and sensors (see section 5.3).
Connect the cleaning devices to the proper terminal connections in the cable terminal compartment (see section 5.4).
 Connectofoptionaldevicesusedforthes::cannano::stationormicro::station,e.g.owdetectorF-45-ALARMorpressure
sensor F-500-P.
Establish main power supply to the con::cube (see section 5.5) and wait until the operation software moni::tool has started
up (see section 5.6).
 Pleasenoteallinformationinthemoni::toolmanualforfurtherstartupandcongurationofthemonitoringsystem.
5.1 Plan of Terminal Connections
Once the housing cover has been opened (four hexagonal head screws removed) you have access to the cable terminal
compartment of the con::cube.
Opening of the cable terminal compartment must be carried out by authorised persons only (see section 2) and after
disconnecting the power supply!
Be aware that cable clamps of relay contacts you have connected to the device might also have power supply
(230 VAC), depending on how they have been interconnected!
The con::cube is equipped with spring terminals that enable quick and easy wiring.

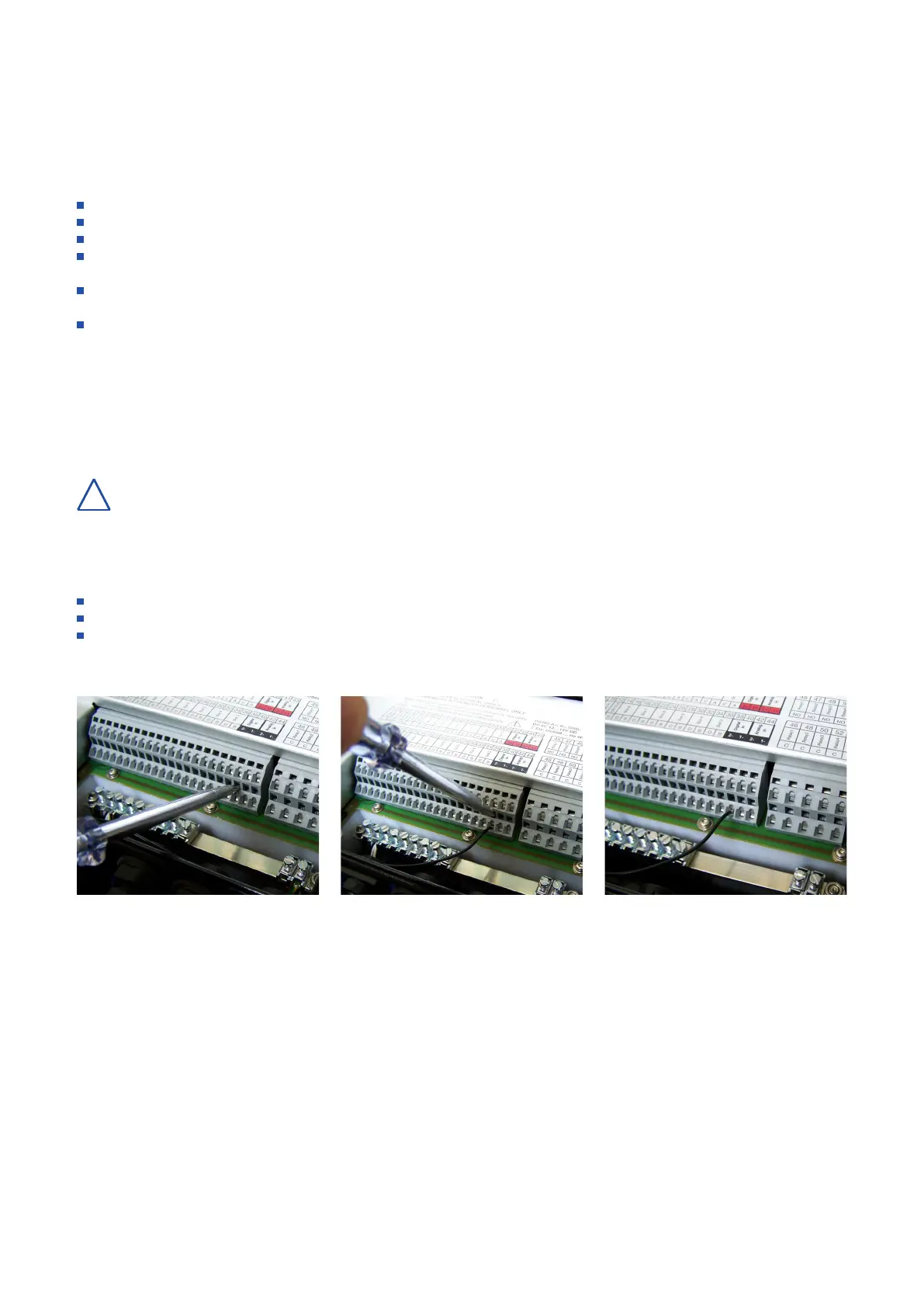

Insert a small screwdriver into the slot above the cable clamp you want to connect (see left picture below).
Move the screwdriver upwards, which opens the cable clamp, and insert the wire (see middle picture below).
Move the screwdriver downwards and remove it. Now wire is locked in the cable clamp (see right picture below).
s::can recommends to use wires with isolated end sleeves for power supply and dater transfer.
