s::can con::cube D-330 - 12.1 Terminal Connections for optional I;O Modules; 12.2 Pin Assignment for optional Profibus DP connector (Sub-D9)

Name Specication Remark
Digital OUT
(relay change)
for 2 cleaning devices

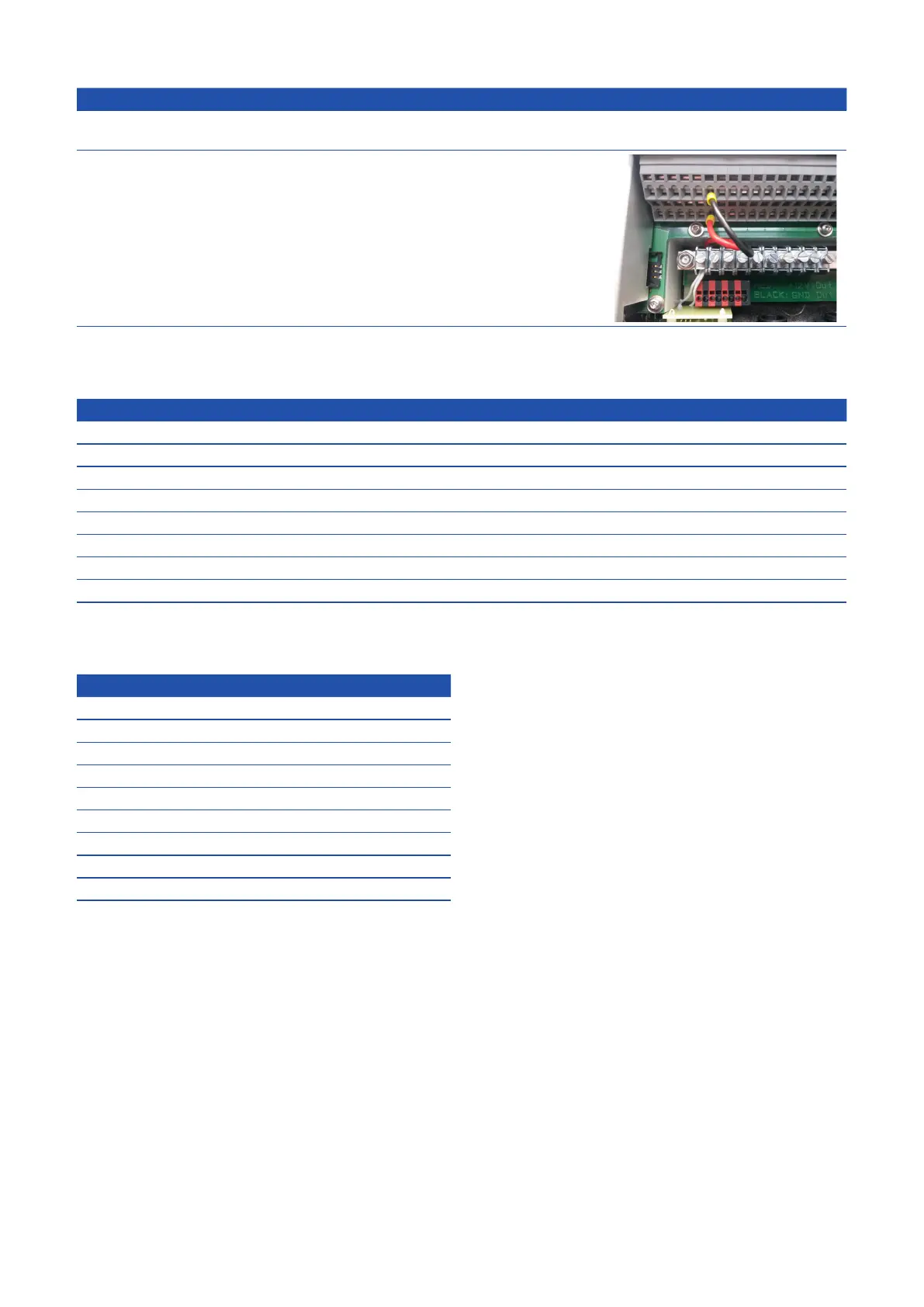

Power supply output 12 V 12 VDC, max. 8 W
via red (+12 V) and black (-12 V)
terminal block on bottom which are
connected to the terminals 11 and 12
see picture on the right
12.1 Terminal Connections for optional I /O Modules
Slot mA Output mA Input Digital Input
Slot 1 49 (+) and 50 (-) 17 (+) and 18 (-) not to be used
Slot 2 51 (+) and 52 (-) 19 (+) and 20 (-) 35 (+) and 36 (-)
Slot 3 53 (+) and 54 (-) 21 (+) and 22 (-) 37 (+) and 38 (-)
Slot 4 55 (+) and 56 (-) 23 (+) and 24 (-) 39 (+) and 40 (-)
Slot 5 57 (+) and 58 (-) 25 (+) and 26 (-) 41 (+) and 42 (-)
Slot 6 59 (+) and 60 (-) 27 (+) and 28 (-) 43 (+) and 44 (-)
Slot 7 61 (+) and 62 (-) 29 (+) and 30 (-) 45 (+) and 46 (-)
Slot 8 63 (+) and 64 (-) 31 (+) and 32 (-) 47 (+) and 48 (-)
12.2 PinAssignmentforoptionalProbusDPconnector(Sub-D9)
Pin Specication
1 not connected
2 not connected
3 PB +
4 not connected
5 ProbusGND
6 Probus5V
7 not connected
8 PB -
9 not connected
con::cube D-330, 01-2020 Release Copyright © s::can Messtechnik GmbH
