11.2 Automatic Cleaning

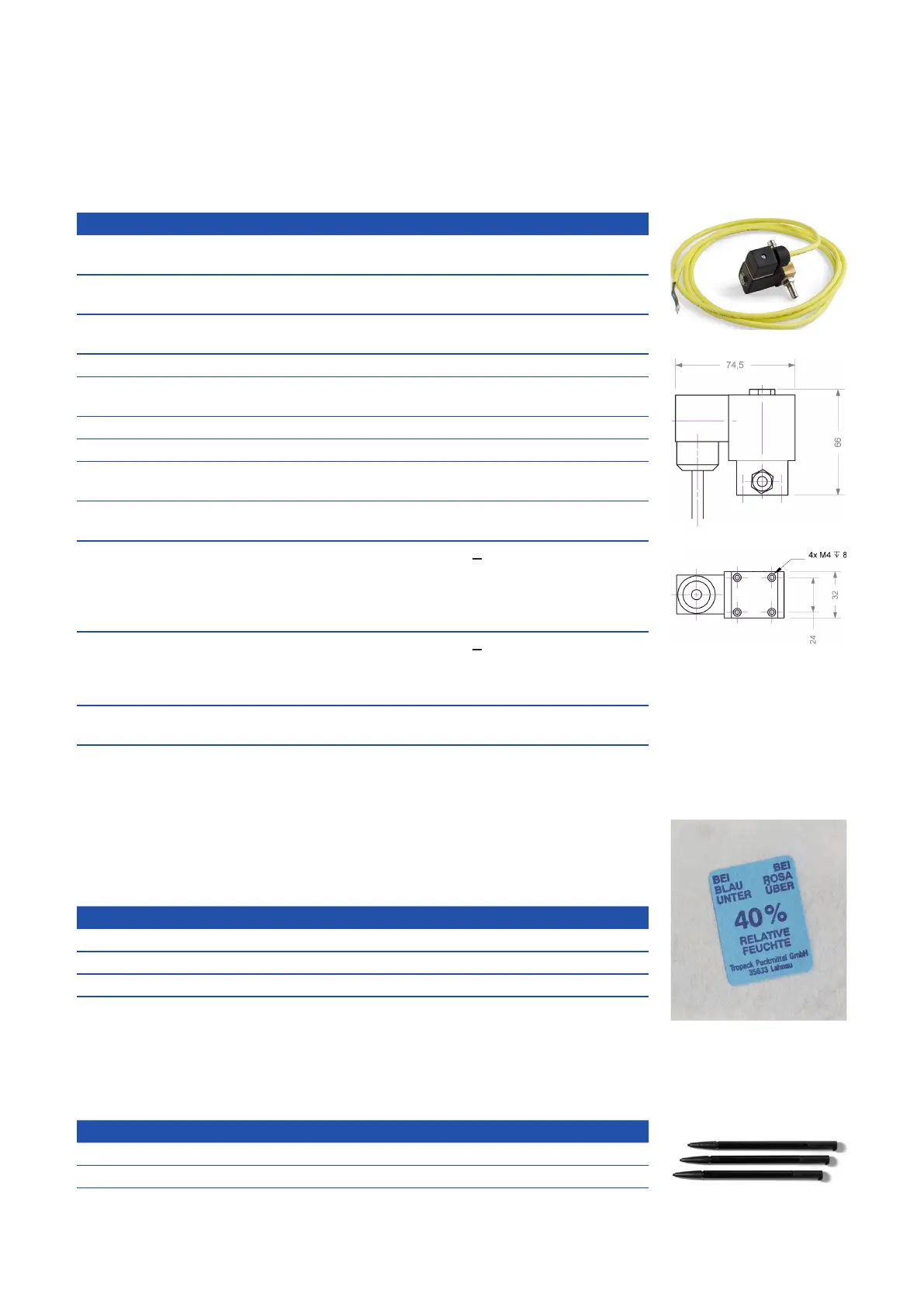

11.2.1 Cleaning Valve
For operation of the automatic compressed air cleaning system, a cleaning valve is
available.
Name Specication Remark
Part-no. B-44
B-44-2
Cable length 2.5 m
1.0 m
B-44
B-44-2
Assembling ex works, with cable end
sleeves
+ blue
- brown
Dimensions 85 / 75 / 70 mm W / H / D
Material Brass,stainless steel 1.4305
FPM
Housing
Sealing material
Environment rating (IP) IP 65
Media that can be handled neutral gases and liquids
Temperature limits -10 to 90°C (14 to 194°F)
-30 to 60°C (-22 to 140°F)
of medium
of environment
Operation voltage 12 VDC supply by controller for
operation
Connectiontting
compressed air side
B-44:
Standard DIN 7.2 coupler
B-44-2:
coupler screw connection
6/4 mm, nickel-plated brass
P inlet pipe compressor
(compressed air side)
Connectiontting
probe side
B-44:
Hose ID
3
/
8
inch
B-44-2:
plug-intting(6mmOD)
A inlet pipe probe
(probe side)
Direct connection valve
1
/
8
inch ifttingssuppliedexworks
are removed
11.3 Spare Parts
11.3.1 Desiccant Package
To avoid condensing humidity inside the con::cube a desiccant package is built in. The
desiccant packages are available as spare part.
Name Specication Remark
Part-no. B-43-2 10 pieces
Dimensions 70 / 5 / 80 mm W / H / D
Weight approx. 10 g
11.3.2 Touch Pen
For easy operation of the touch screen a touchscreen is included in delivery of the con::cube.
Further touch pens can be ordered as spare part.
Name Specication Remark
Part-no. D-312-PEN 3 pieces
Dimensions 87 mm Length
