s::can con::cube D-330 - 11.4.5 SDI 12 Output Module; 11.4.6 Analog Input Module; 11.4.7 Digital Input Module

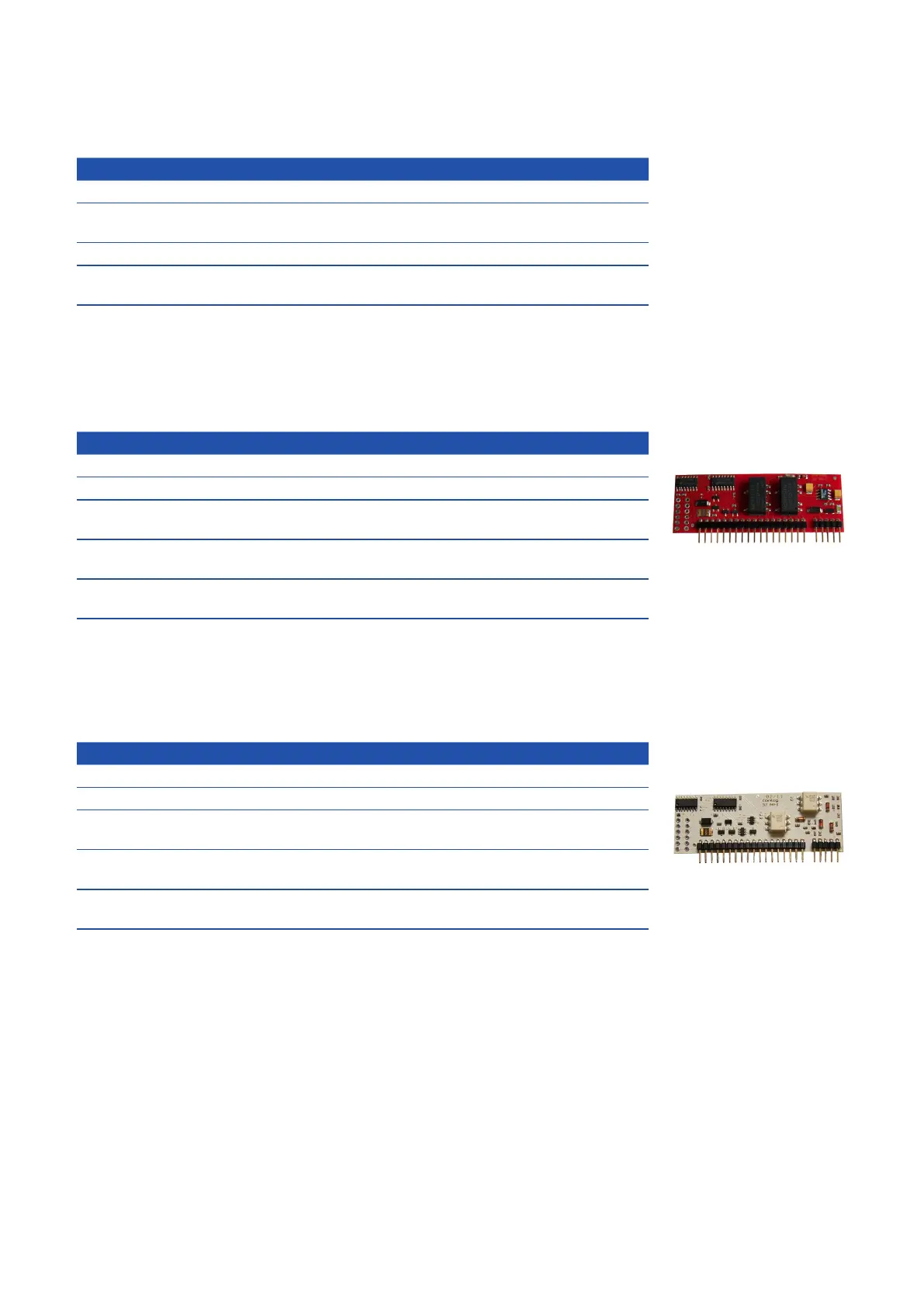

11.4.5 SDI 12 Output Module
This optional module provides SDI 12 an interface for data transfer to PLC systems.
Name Specication Remark
Part-no. D-315-OUT-SDI12
Interface via terminal block, see sec-
tion 5.1 for correct wiring
Conguration via moni::tool software
Assembling onlybyqualiedpersonal
authorized by s::can
con::cube can be equipped
with 1 module at slot no. 8
11.4.6 Analog Input Module
This optional module provides two analog inputs for integration of third party sensors into the
s::can monitoring system.
Name Specication Remark
Part-no. D-315-IN-MA
Input 2 x 4 - 20 mA
Interface AWG 28-12,
stripped wire
via terminal block, see sec-
tion 5.1 for correct wiring
Conguration via moni::tool software see section 12.1 for address
mapping
Assembling onlybyqualiedpersonal
authorized by s::can
con::cube can be equipped
with max. 8 modules
11.4.7 Digital Input Module
This optional module provides two digital inputs for integration of third party sensors into the
s::can monitoring system.
Name Specication Remark
Part-no. D-315-IN-RELAY
Input 2 x digital in
Interface AWG 28-12,
stripped wire
via terminal block, see sec-
tion 5.1 for correct wiring
Conguration via moni::tool software see section 12.1 for address
mapping
Assembling onlybyqualiedpersonal
authorized by s::can
con::cube can be equipped
with max. 8 modules
con::cube D-330, 01-2020 Release
www.s-can.at
Copyright © s::can Messtechnik GmbH
37 / 42
