4 Installation
4.1 Environment
The con::cube is designed according to environmental protection rating IP 65 and is resistant against environment
e󰀨ects.Indooruse is preferred. Incaseof outdoor use theinstallationin a cabinet orontheseparately available
weather shield is highly recommended to protect the device (housing cover has to be securely closed).
Enclosureclass IP65protection isonlyguaranteedifthe housingcover isxedtightlywiththefourscrews, anoperative
desiccant package is mounted inside the housing and the sealing of the housing cover is undamaged and placed correctly. In
addition all cable glands have to be sealed correctly in that way they are closed tightly with the appropriate cables or dummy
caps. All connectors must be covered with corresponding caps when not in use. Any damage caused by intrusion of water will
not be covered by the warranty.
The correct installation of measuring instruments is an important prerequisite for satisfactory operation. Therefore the following
checklist for the installation can be used to ensure that all sources for potential operational problems can be ruled out to the
greatest possible extent during the installation, allowing the s::can monitoring system to operate properly.
Installation site:
Easy accessibility (mounting, sampling, functional check, demounting)
 Availabilityofsu󰀩cientspace(probe/sensor,installationtting,controllerforoperation,etc.)
 Adherencetolimitvalues(seetechnicalspecicationslocatedattheendofthismanual)
Best possible weather and splash water proof set-up
Infrastructure (energy, data and compressed air):
Power supply for controller for operation (operational reliability, voltage, power, peak free)
Oil- and particle free compressed-air supply (optional for automatic probe / sensor cleaning)
Shortest possible distances between system components (probe – controller – compressed-air supply – energy supply)
Correct dimensioning, mounting and protection of all cables and lines (non-buckling, no risk of stumbling, no damage etc.)
4.2 Mounting
For mounting and electrical installation the following tools and materials are necessary:
Hexagonal wrench key (size 5) to open housing cover
 Torxwrenchkey(sizeTX25)forxingscrewsofmountingrails
2 s::can mounting rails (included in delivery)
 4screws(M5)and4washersforxingthetwomountingrailsontothecon::cube(included
in delivery)
4 screws for fastening the con::cube on the wall (if required)
Weather shield (F-51, if required)
Power supply cable (C-31-xx, if required)
Stripping tool for power supply line
Cable end sleeves and crimper

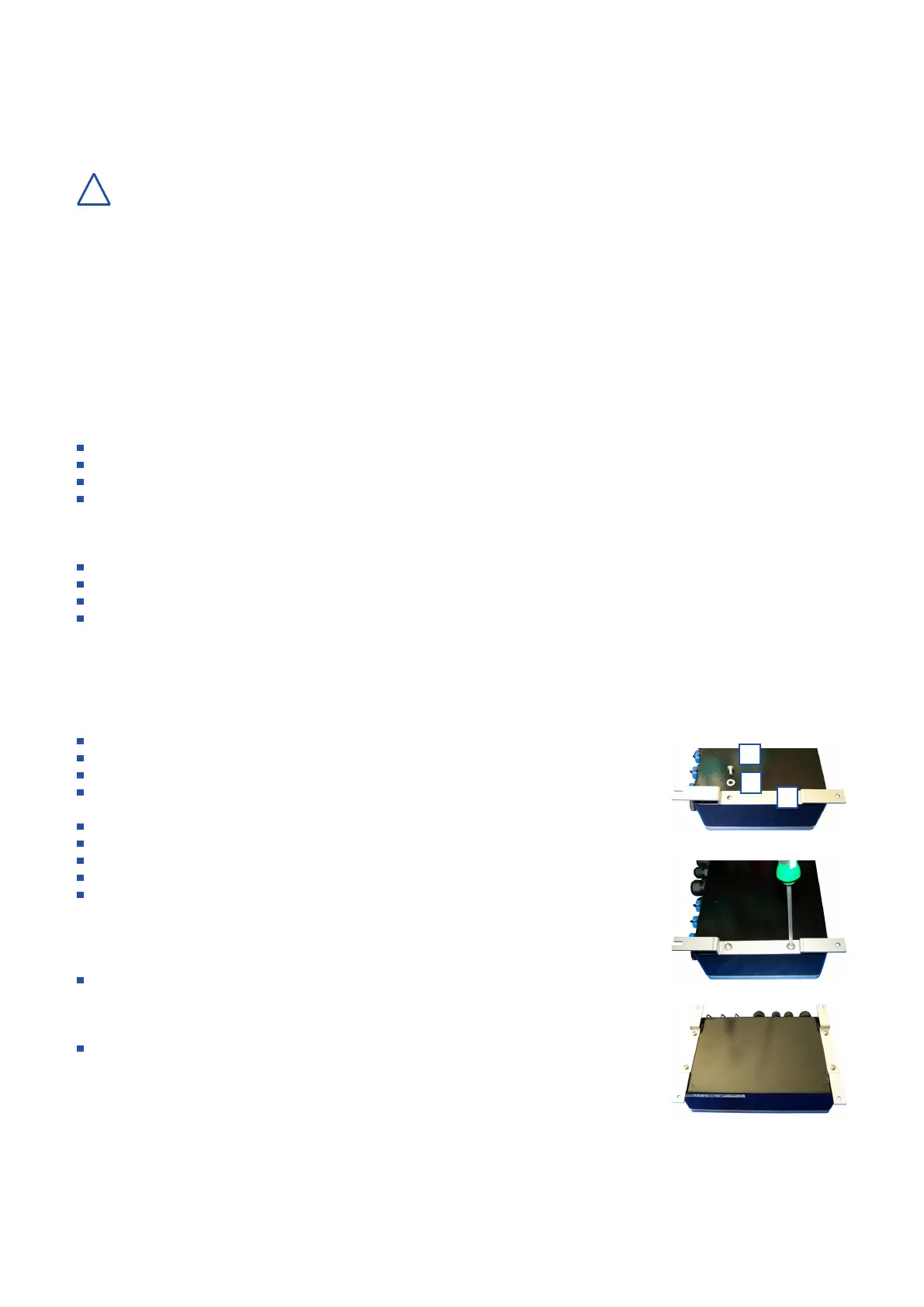

Thecon::cubecanbemountedquicklyandeasilyontoaatwallusingoneofthefollowing
methodes:
With the two mounting rails [1] included in delivery. Fasten the two mounting rails onto
the backside of the con::cube using the four screws [2] and the four spring washers [3] as
shown on the right.
With the four threaded holes on the backside of the con::cube to mount the device directly
from the backside (M5 screws, not included in delivery).
Forthecorrectdimensioningandspacerequiredformountingpleaserefertotheguresin
section3.3andthetechnicalspecications.
con::cube D-330, 01-2020 Release Copyright © s::can Messtechnik GmbH
www.s-can.at12 / 42
1
2
3
!
