10 LRF interface tools
10.1 LRF Interface Kit
SAFRAN VECTRONIX AG can assist the integration of LRF modules by supplying an LRF Interface Kit (part
number 914752). The aim of the LRF Interface Kit is to enable connection and powering the LRF module
before integration begins and to increase personnel safety. The Interface Kit and the LRF Integrator Manual
is enough to get a first impression of the LRF Module.
The Interface Kit consists of:
Suitcase
SAFRAN VECTRONIX AG USB stick (incl. manual and terminal software and drivers)
USB to LRF Interface cable including connector to an external power supply
Eye Safety Kit
Screws to mount the LRF
As an alternative to the SAFRAN VECTRONIX AG Terminal Software, other terminal programs can be used
for testing and PC communication with the LRF. We recommend PTronix SimpleTerm SE. For further
information, please visit http://www.ptronix.com/products/ststandard.htm.
10.2 Interface Cable
An Interface Cable (part number 914225) is available that provides a connection to the LRF via a DUBOX 12
pin shrouded header (Figure 32). The interface cable is connected to the LRF system connector as shown in
Figure 19.

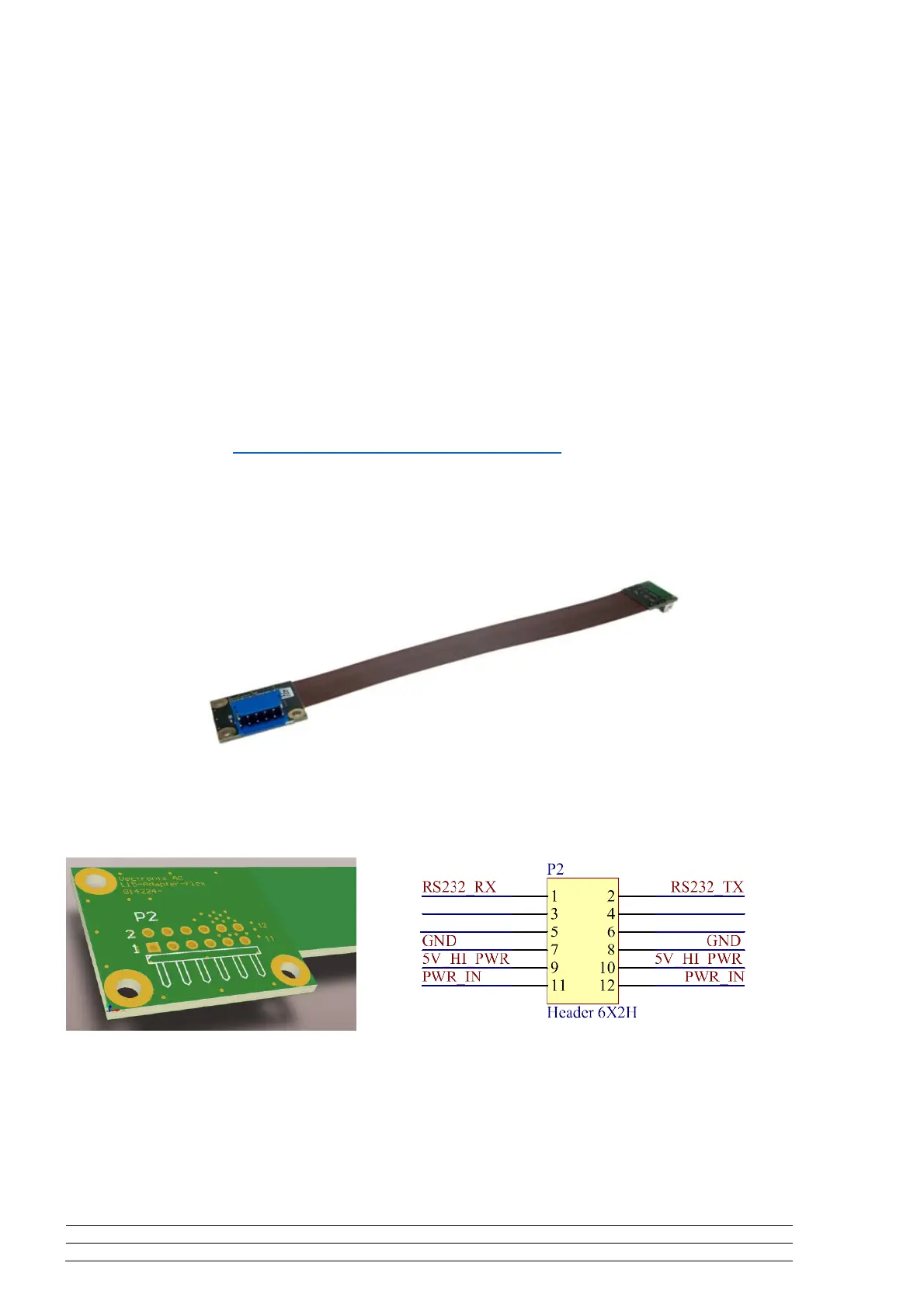

Figure 19: Interface Cable
The following figures indicate the connector pin-out
Figure 20: Pin out of 914225 Interface Cable connected to the LRF
