User Manual
9
4.2 Mounting Instructions

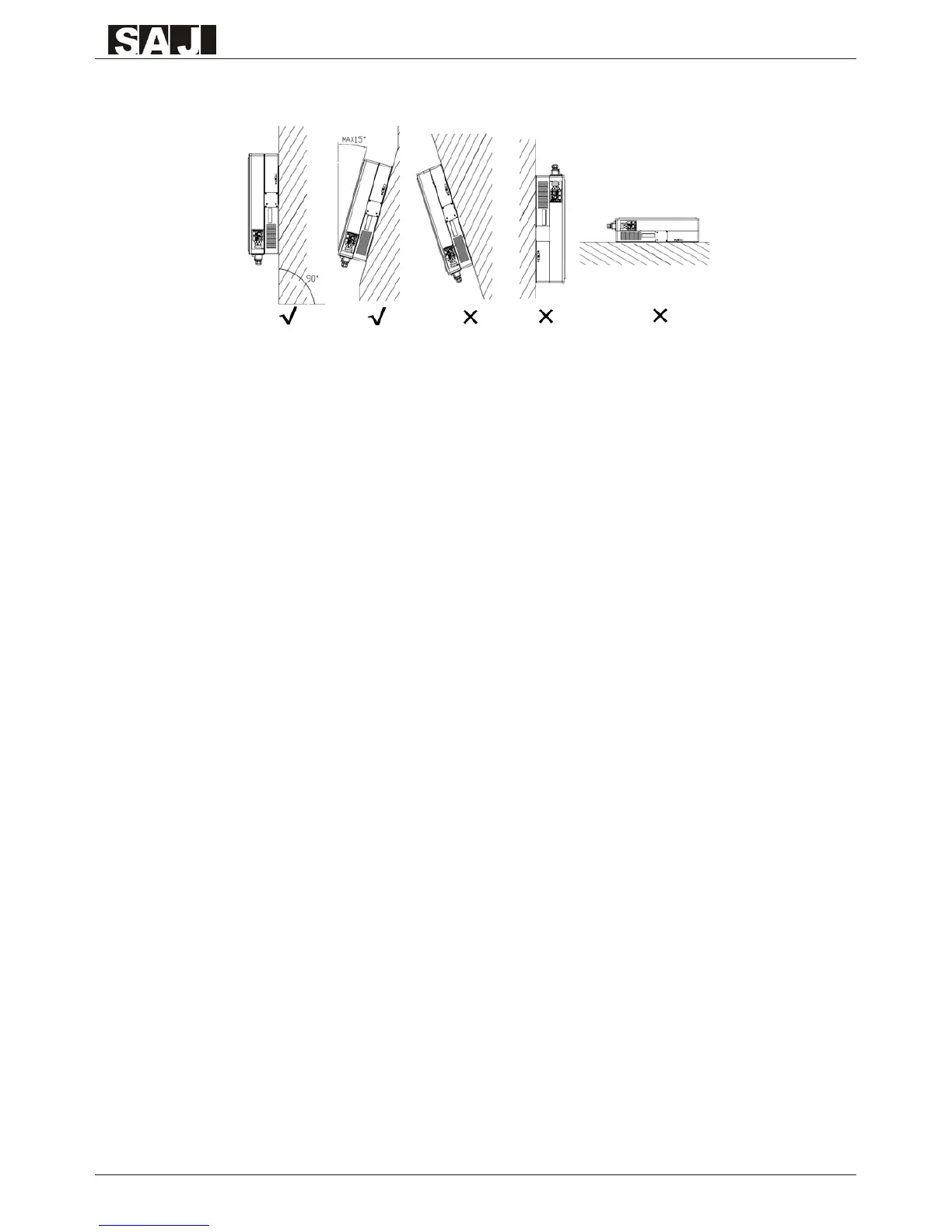

Figure 4.2 Mounting Instructions
Mounting on a solid surface out door or indoor.
● Site altitude is less than 2,000m above the sea level.
● The mounting location must be clear and safely accessible at all times without the use
of additional aids such as scaffolding or lifting platforms. If this is not the case, service
work may be restricted.
● Mount vertically or tilted backwards by max. 15°
● The connection area must point downwards.
● Never install the inverter forward tilt, sideways tilt, horizontally or even upside down.
● Install the inverter at eye level for convenience checking the LCD display and possible
maintenance activities.
● Given the weight of the device, this will facilitate disassembly for service work.
● The ambient temperature should be below 45°C to ensure optimum operation. Choose
locations with sufcient air exchange. Ensure additional ventilation, when necessary.
● Do not expose the inverter to direct solar irradiation as this could cause power
derating due to overheating.
● In order to avoid audible vibrations in living areas, do not mount the unit on
plasterboard walls or similar.
● Observe the recommended clearances to walls, other inverters or other objects, as
shown in the follow diagram. That ensures sufcient heat dissipation and gives you
enough space to unplug the PV Connector, communication port and operate the DC-
switch.
