User Manual
11
4.3 Mounting Procedure

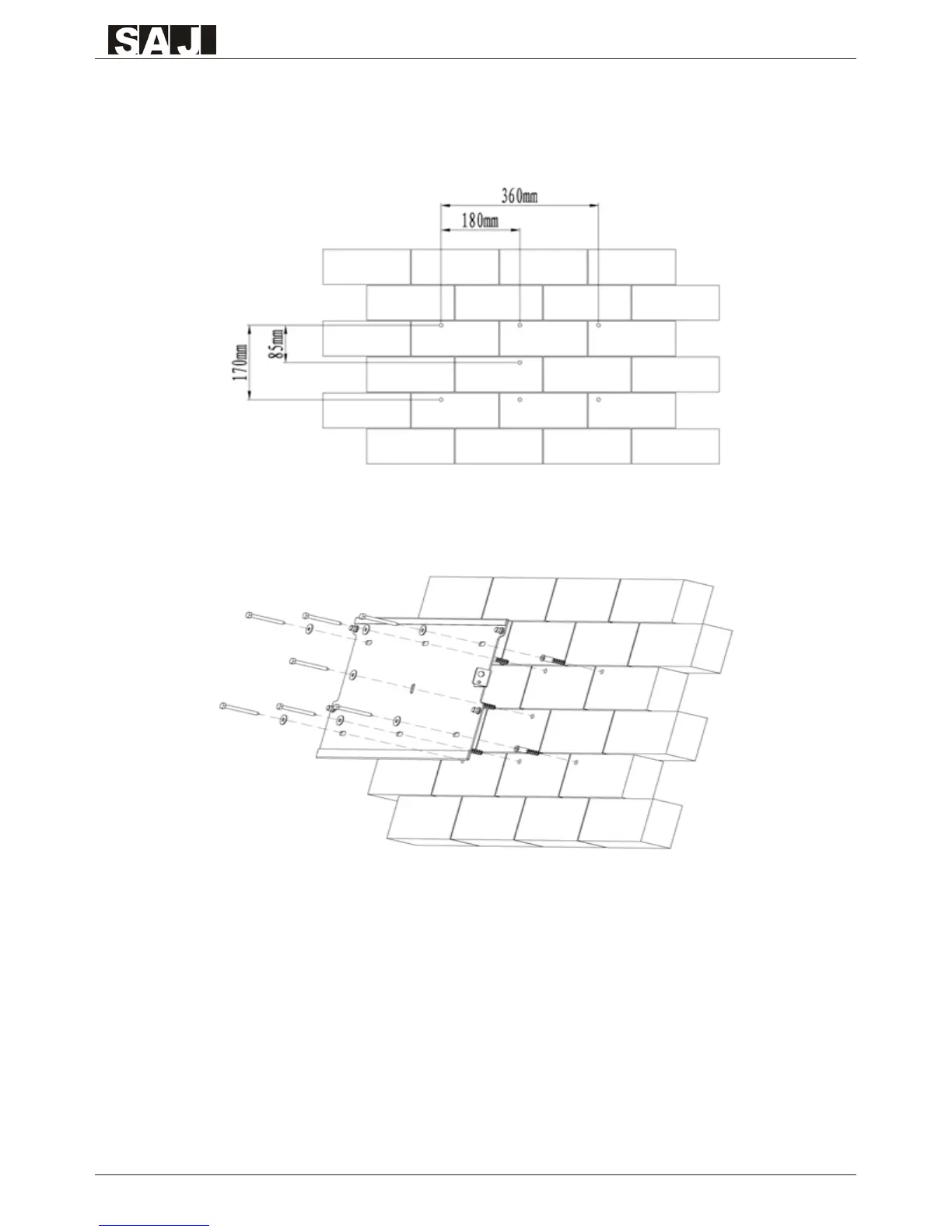

1) Use the rear panel in the package as a drilling template and drill 7 holes with 8mm diameter
and depth in 50mm, as illustrated below, (Units: mm)
Figure 4.5 Holes Position
2) Fix the rear panel on the wall with the expansion tubes and expansion screw.
Figure 4.6 Mounting Real Panel
