5.6.2 Connection Procedures by H4:
Connect the PV generator and the inverter using H4 connectors, as follows.
Note: If using MC4 connector, the operating procedures are similar to that of H4 connector.

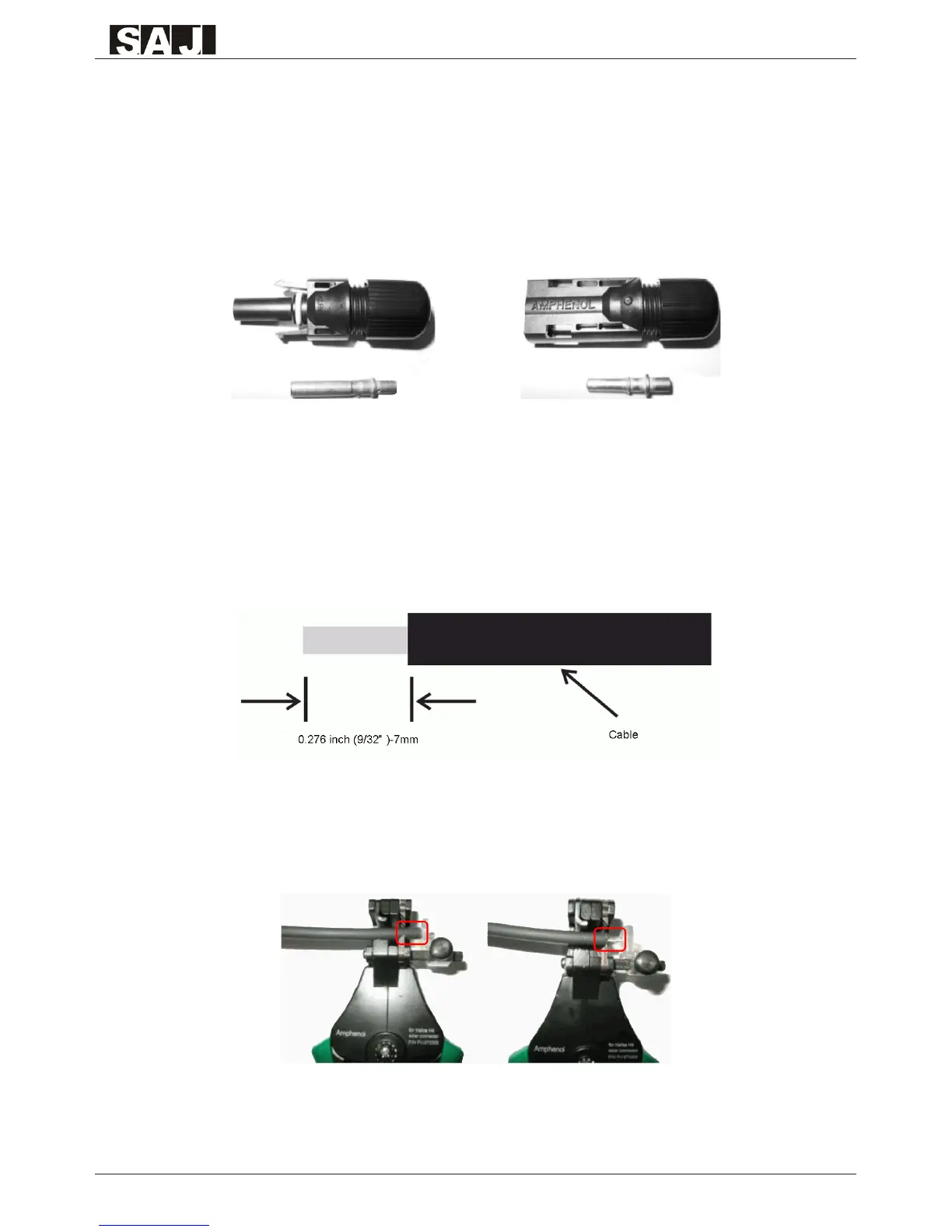

The DC connectors come pre-assembled and the caps are loose. The whole connector will
include the male side and female side as showed below:
Male side connector (M) Female side connector (F)
Assembly Instructions:
1)Strip the cable with the length of 0.276 inches (9/32”)-(7mm) and please be careful NOT to
nick conductors.
2)Use specied strip tool in this step. Adjust the strip stopper and put the cable in corresponding
notch to strip the length of 7mm.
