5.7.4 Communication Cable Assembly InstructionsAll cables
All cables mentioned in this mentioned in this Manual are 5E Shielded Cable, as shown in
Figure 5.22.

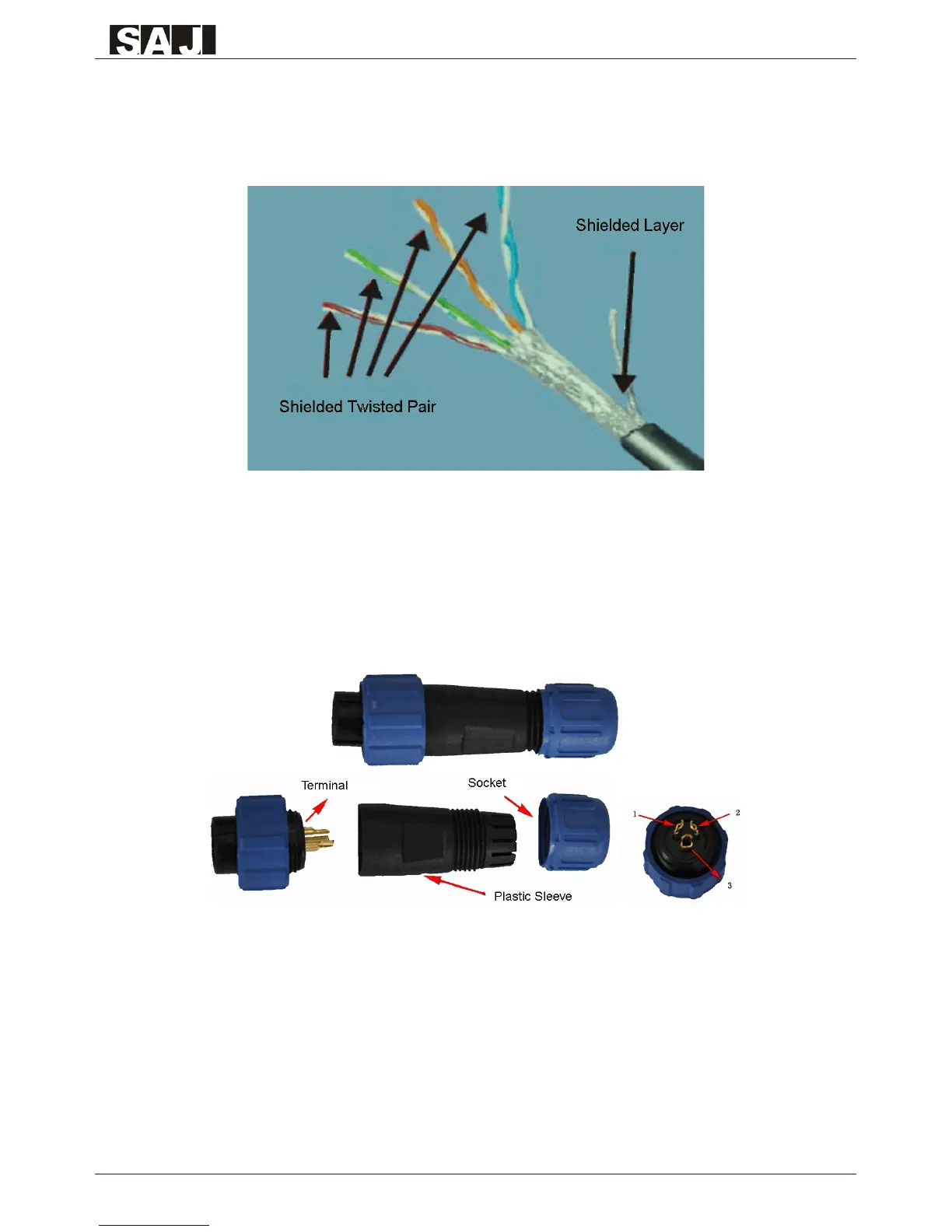

Figure 5.22 5E Shielded Cable
Terminals:
According to different communication solutions, users may need at least one of the below
terminals. They are 3Pin Connector and RJ45 Plug as shown in Figure 5.23 and Figure 5.24
Figure 5.23 3Pin Connector
