5.3 Connection Cables Requirements
The user can select connection cable according the table below.
Model
DC Side AC Side
cross section (cu) Mini cross section (cu)
Suntrio-TL6K/8K 4mm
2
/ 6mm
2
4mm
2
Suntrio-TL10K/12K 4mm
2
/ 6mm
2
4mm
2
Suntrio-TL15K 4mm
2
/ 6mm
2
6mm
2
Suntrio-TL17K 4mm
2
/ 6mm
2
6mm
2
Suntrio-TL20K 4mm
2
/ 6mm
2
6mm
2
Table 5.2 Connection cables requirements
Note:The cable loss due to the cross section and the length, to avoid too much power loss,
user can select the proper cable according the actual situation. The below chart specic the
relationship among the Cable Loss, cross section, cable length.

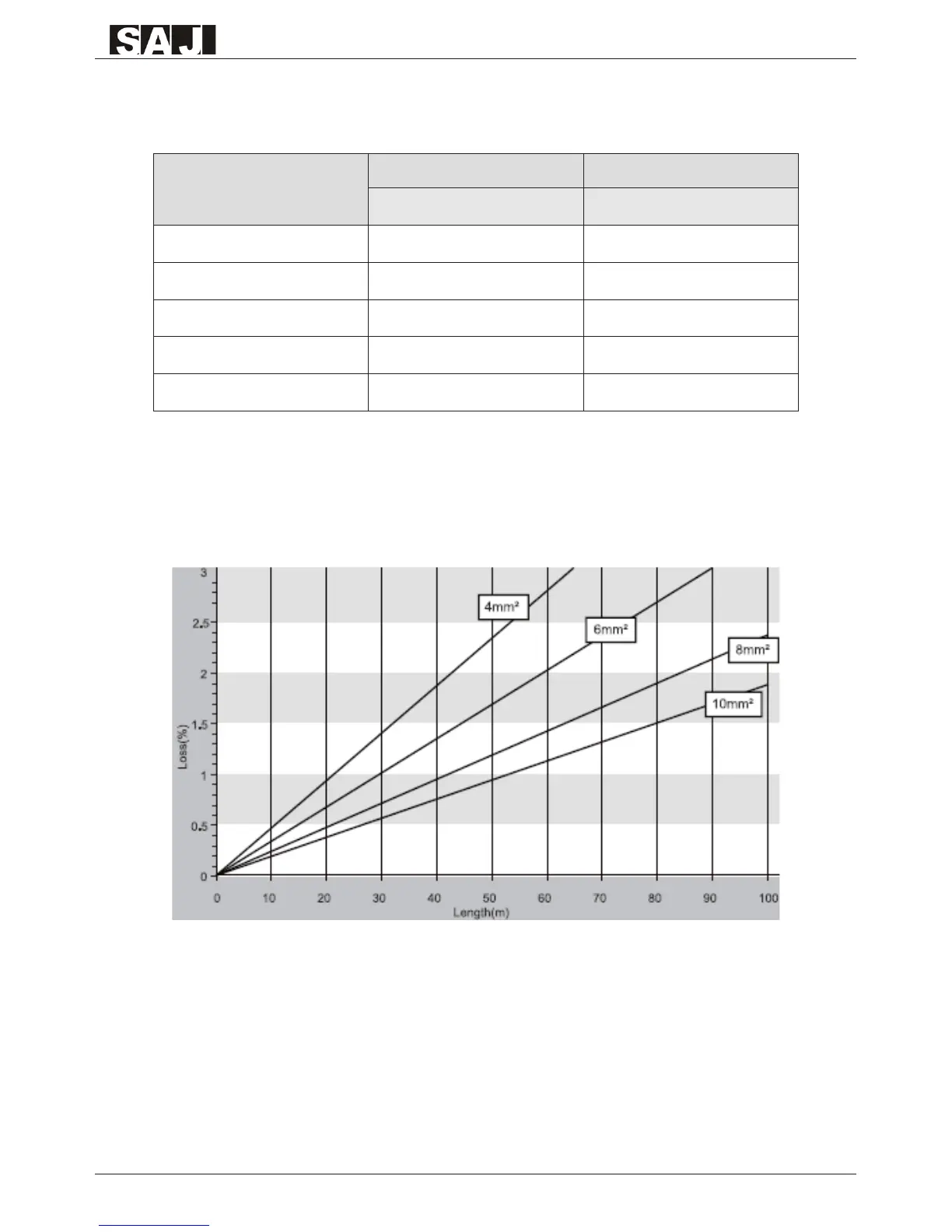

Figure 5.3
