Figure 6.2 Connect to the Gird Countdown

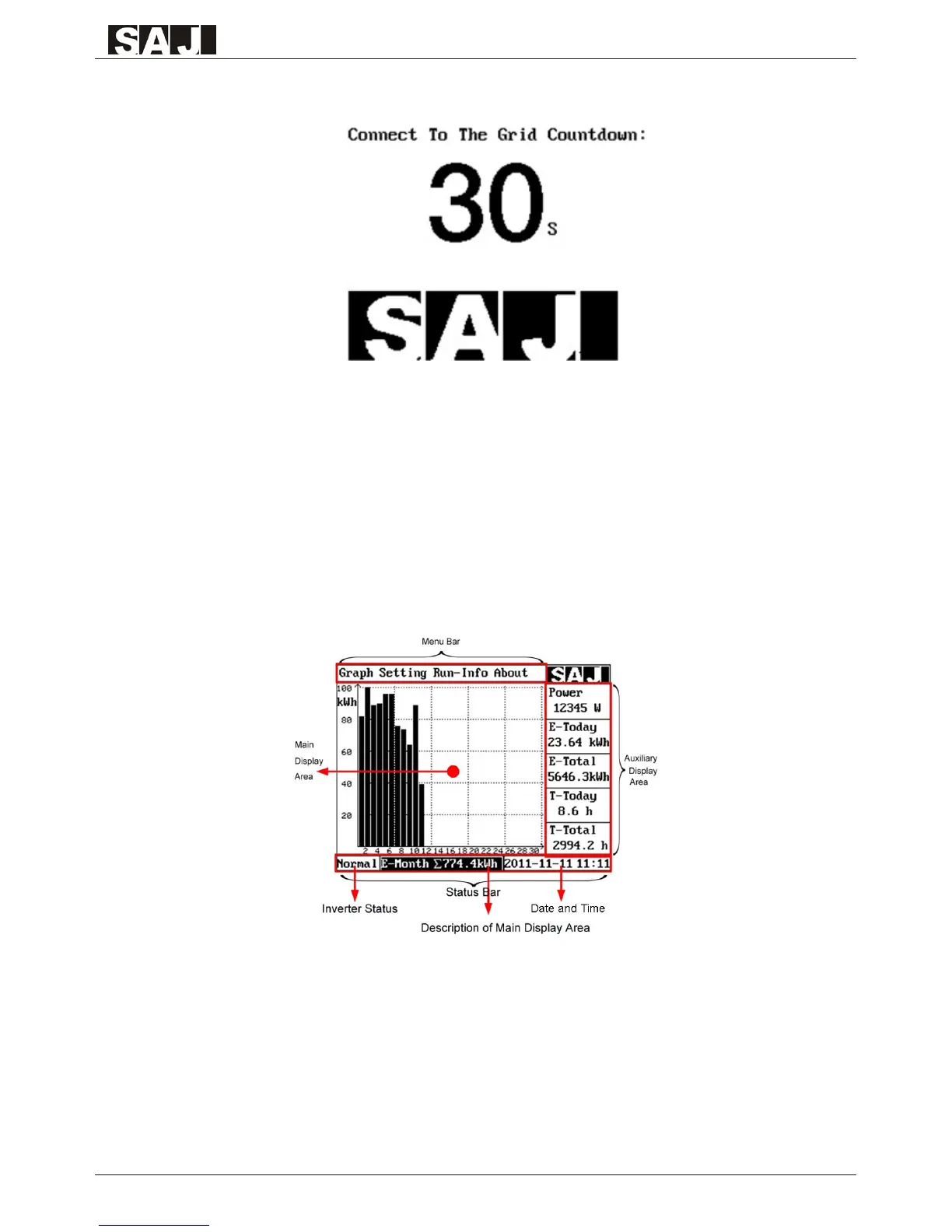

6.3 LCD Main Screen
When inverter countdown nishes and starts to connect to grid, LCD will display the main screen
as below. The main screen consists of menu bar, main display area, auxiliary display area, status
bar (including inverter status, description of main display area, data and time). Please refer to
Table 6.2 for inverter status description, Table 6.3 for auxiliary display area items description.
Information in main display area varies according to menu selected. Please refer to the next
section.
Figure 6.3 LCD main Screen
To Next Page
