6.4.1 LCD Graph Submenu
Graph submenu consists of E-Today, E-Month, E-Year and E-Total. LCD main display area will
display the corresponding information after conrming the Graph submenu by pressing ‘Enter’.
The Figure 6.5 below is the E-Month Screen.please refer to the Table 6.4 for E-Today, E-Month,
E-Year and E-Total display information explanation.

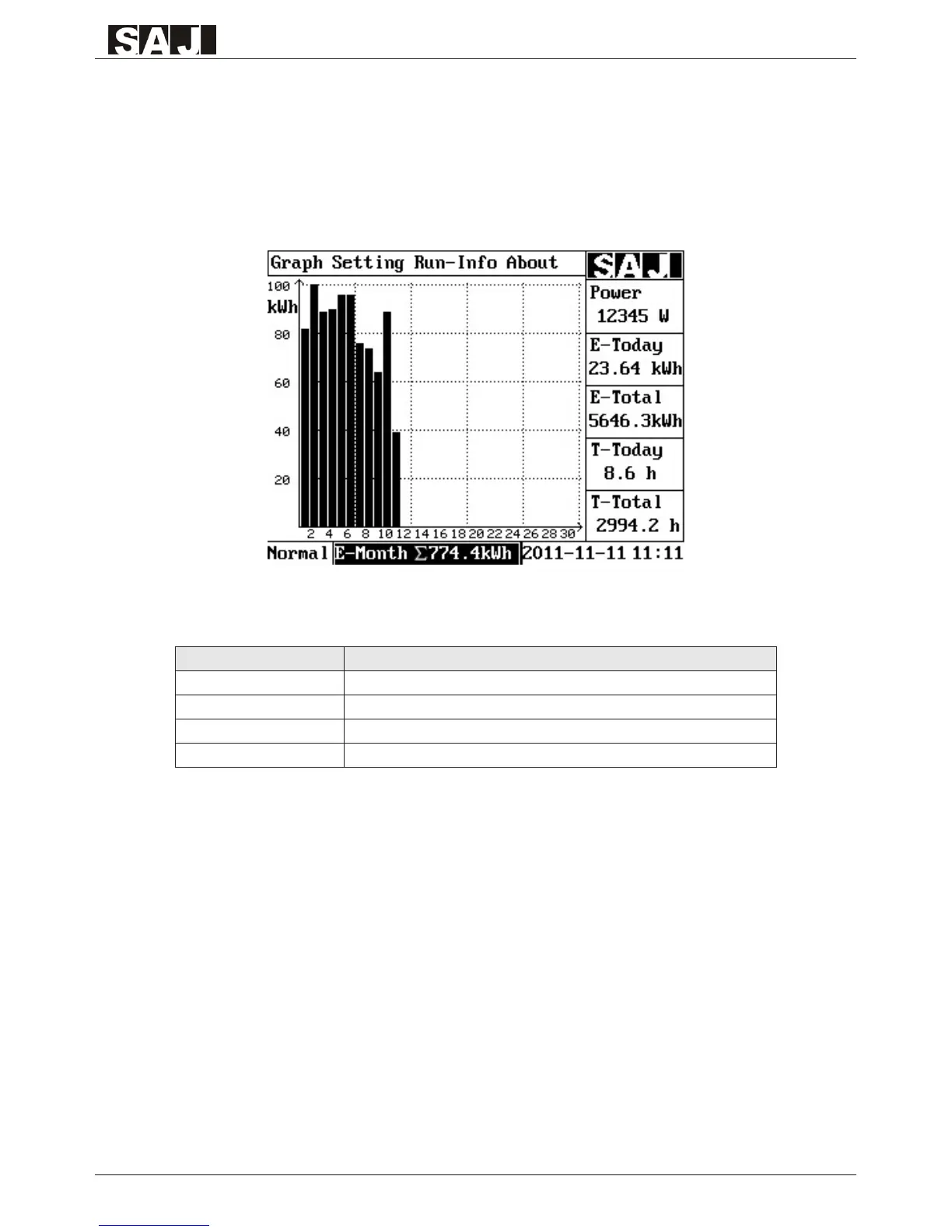

Figure 6.5 E-Month Screen
Item Display information explanation
E-Today Bar chart of energy yield today
E-Month Bar chart of energy yield every day of this month
E-Year Bar chart of energy yield every month of this year
E-Total Bar chart of energy yield every year
Table 6.4 Graph submenu explanation
