5.7.2 Communication through Ethernet RJ45
When users choose Ethernet communication solution, users can access to Inverter real-time
information through Inverter IP address, or through SAJ Logger IP address. The conguration is
shown in Figure 5.21 as below:

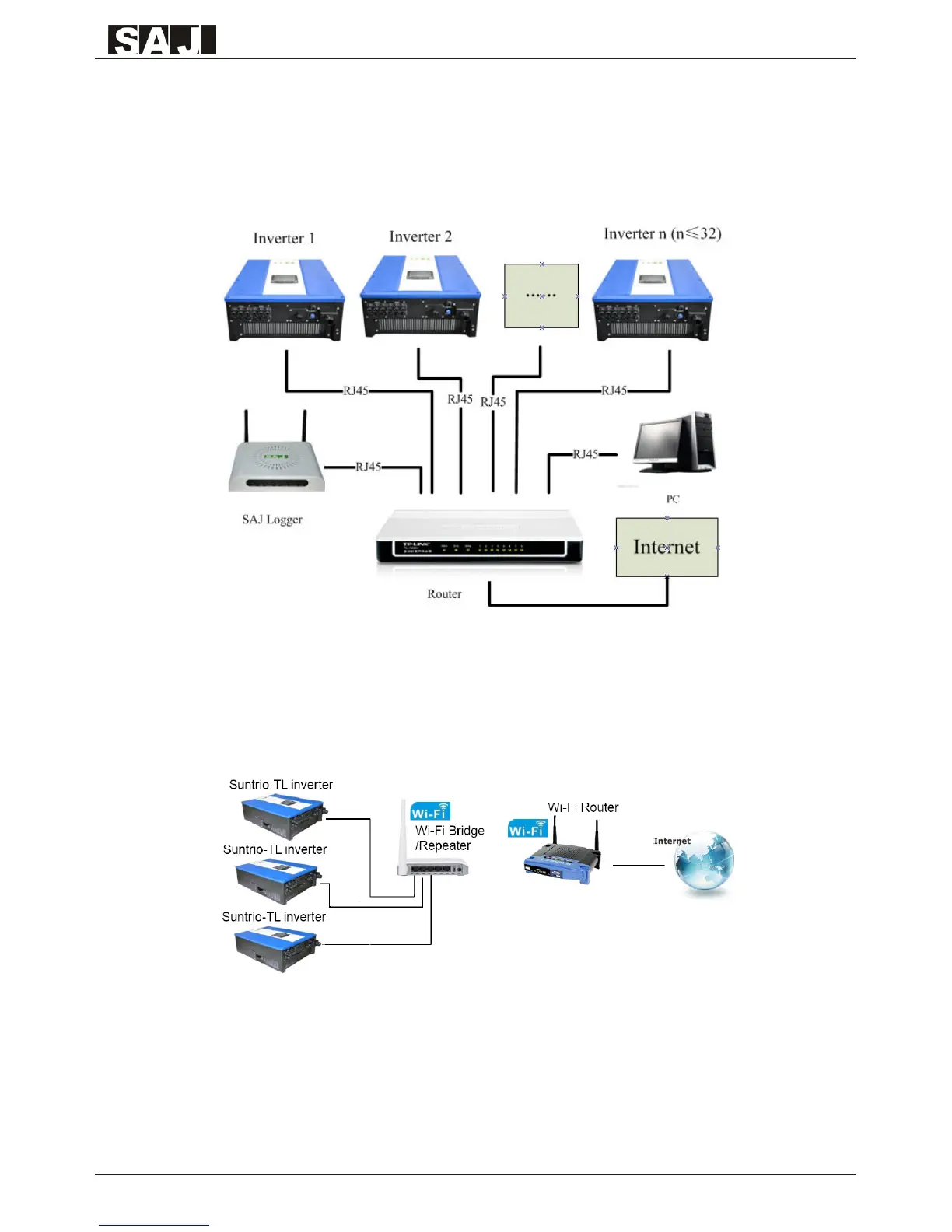

Figure 5.21 Communications through Ethernet RJ45
5.7.3 Extended Wi-Fi Solution with Wi-Fi Bridge
We choose EW-7228APn of EDIMAX as the Wi-Fi bridge reference
All the Wi-Fi bridge or repeater(For example, Edimax EW-7228APn) which has Ethernet RJ45
port can connect to SAJ solar inverters with RJ45 cable and to Wi-Fi router wirelessly.(For
details please refer to the document “SAJ Monitoring Solution with Integrated RJ45 Plus Wi-Fi
Bridge.pdf” from www.saj-solar.com)
