PC+SAJ Logger Multi-point Monitoring

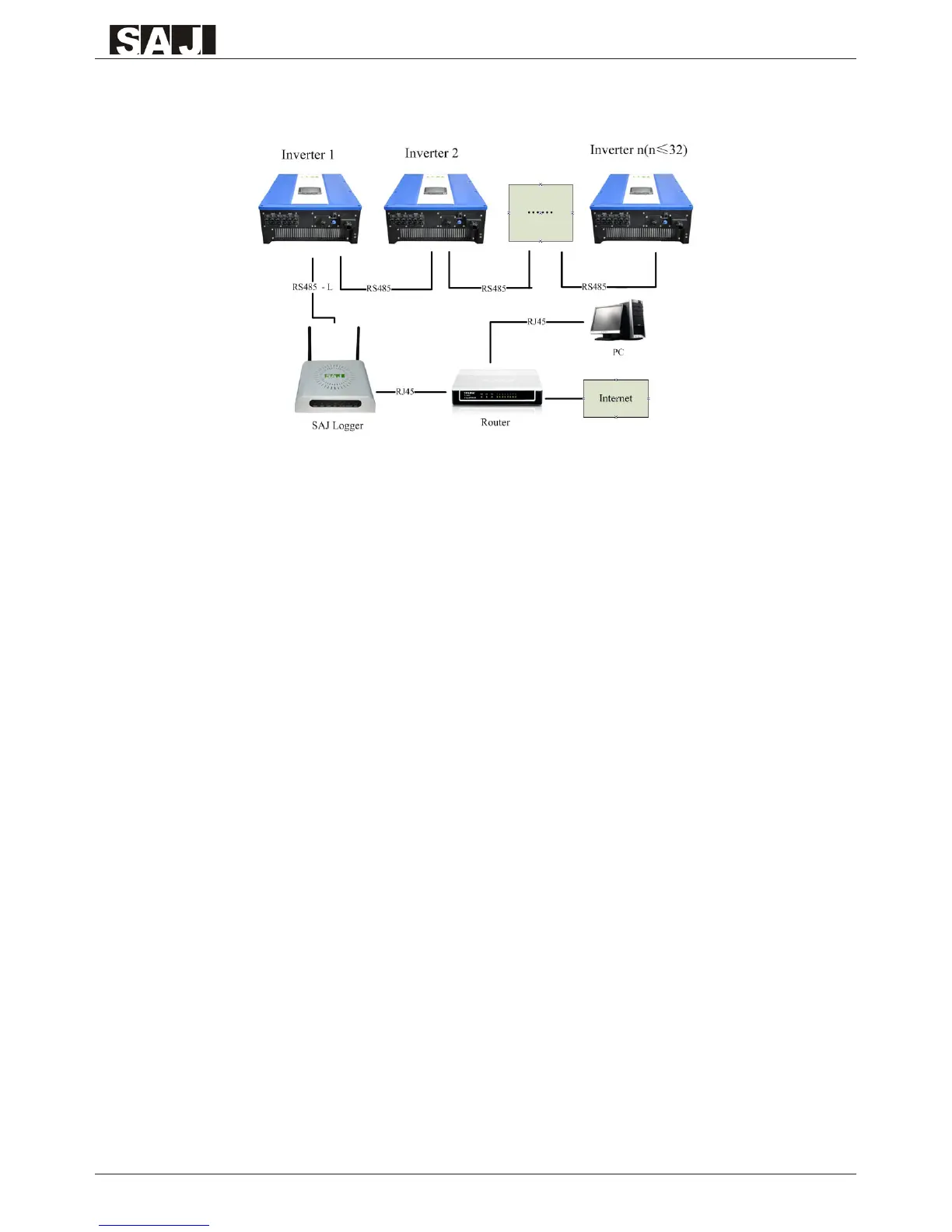

Figure 5.20 PC+SAJ Logger Multipoint Monitoring
Connection Procedures
1)Inverter 1 connects to Inverter 2 through RS485 cable; Inverter 2 connects to Inverter 3 through
RS485 cable. In the same way to connect all inverters.
2)Inverter 1 connects to SAJ Logger through RS485-L cable.
3)Connect SAJ Logger to PC through Router.
4)Open the internal Web Server of SAJ Logger for plant and inverter monitoring.
