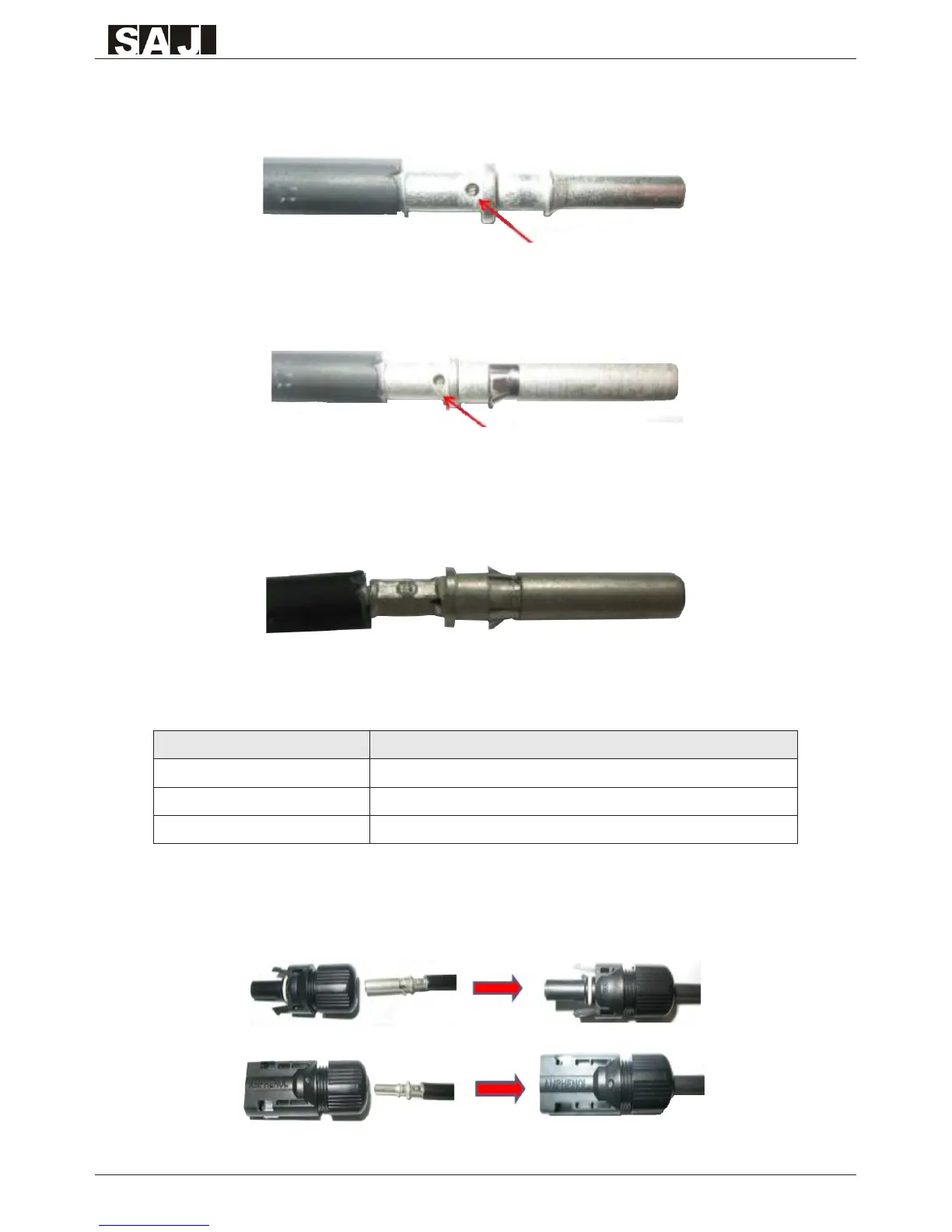

3)Insert stripped cable into contact barrel and insure all conductor strands are captured in the
contact barrel and the conductors are visible in the contact barrel observation hole.
Barrel observation hole
Conductor should be visible
Barrel observation hole
Conductor should be visible
4)Crimp contact barrel by using the hex crimping die. Ensure it is xed.
Crimped socket contact
Cable Requirements
Cable Size Cable pull – out force requirement
4 mm² Min. 400 N.m(90Lbs)
6 mm² Min.450N.m(100Lbs)
10 mm² Min.500N.m(110Lbs)
5)Insert contact cable assembly into back of male and female connector. A“click” should be
heard or felt when the contact cable assembly is seated correctly.
