9 Exploded Views and Parts List

SAM4S ER-5200 Series 9-9

9-2 Printer (STM-210)

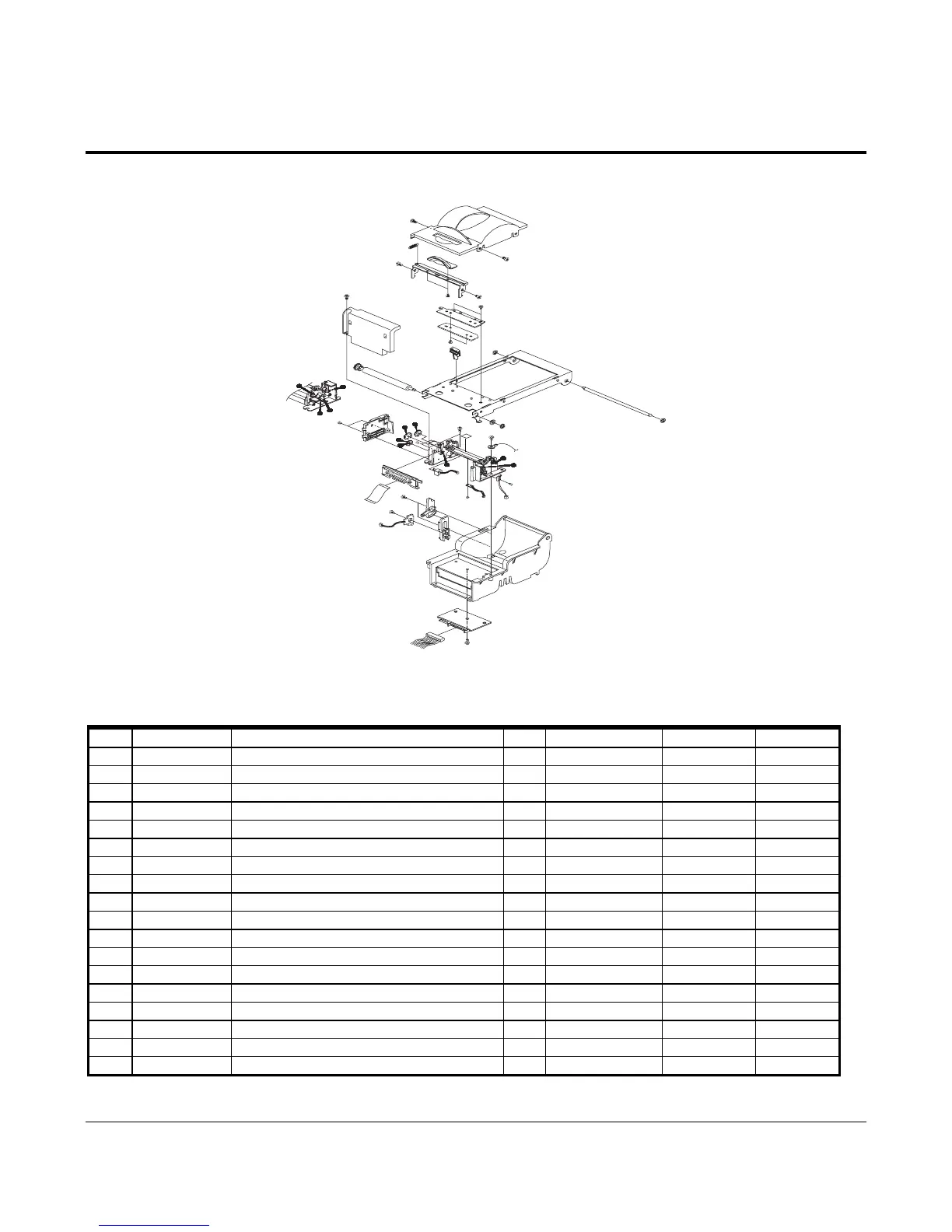

9-2-1 Exploded View (Continue)

Figure9-8 Lubrication Points of the Printer (STM-210)

9-2-2 Parts List

No. Parts No. Description / Specification Q`ty Design-Location Serviceable Remark

C JK59-20001A UNIT-PRINTER:STM-210 1 Y

C-1 JK72-20001A PMO-COVER TOP: HIPS(HB),IVORY 1 Y

C-2 6001-000665

SCREW-MACHINE: PWH,+,2,M3,L4,ZPC(YEL)

2 Y

C-3 JK70-30001A SPRING-HOOK: SWP 1 Y

C-4 JK72-20003A PMO-CAP LEVER: HIPS(HB),BLUE 1 Y

C-5 JK60-00003A SCREW-SPECIAL: SUM 24L,WHITE 2 Y

C-6 JK70-20003A IPR-BRACKET HOOK: SECC T1.0 1 Y

C-7 JK70-50011A SCREW TAPPING: PH,+,2,M2,L4,WHITE 2 Y

C-8 6001-000665

SCREW-MACHINE: PWH,+,2,M3,L4,ZPC(YEL)

2 Y

C-9 JK70-20002A IPR-FIXED CUTTER: SECC T1.2 1 Y

C-10 JK70-50004A POLY WASHER: Φ3.1,RED 2 Y

C-11 JK70-20001A IPR-COVER HOUSING: SECC T1.0 1 Y

C-12 JK70-70001A ICT-SHAFT HINGE: SUM 1 Y

C-13 JK97-10002A ASSY-PLATEN ROLLER: STM-210 1 Y

C-14 JK70-50002A ICT-BUSHING 1 Y

C-15 JK70-50010A E-RING: Φ2.0, T0.5 1 Y

C-16 6002-000147

SCREW-TAPPING: PH,+,2,M3,L10,ZPC(YEL)

1 Y

C-17 JK70-50009A SCREW-MACHINE: RH,+,2,M2,L4,WHITE 2 Y
