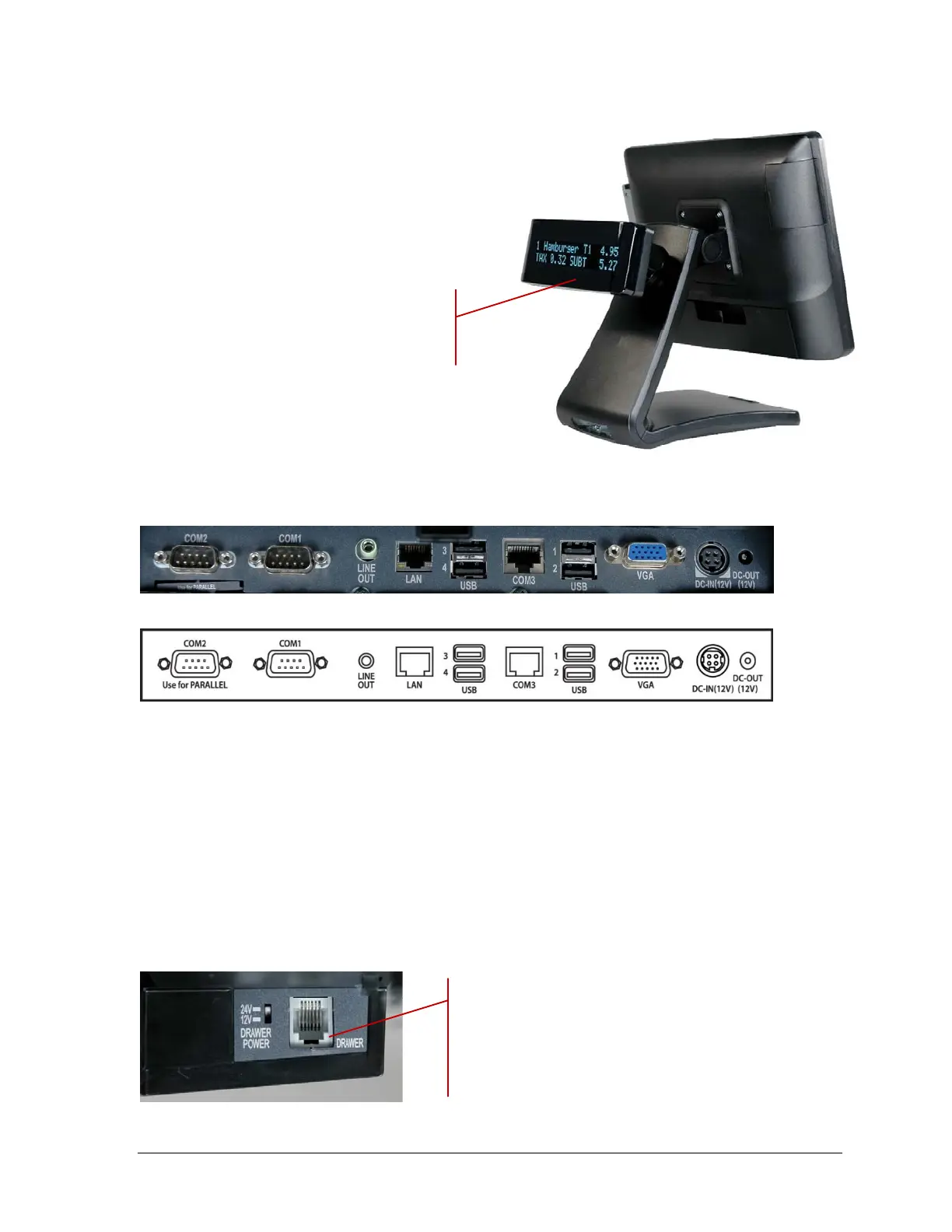

Sam4POS Quick Start v1.1 Introduction - 13 -
Optional Integrated Rear
2 Line by 20 Character
VFD Customer Display
SAP-6600 Connection Panel
COM1, COM2 = DB9M With Pin 9 voltage (+5V)
COM3 = RJ45 Pin 8 (0V / +5V / 12V) Voltage selectable in BIOS
Audio Line-Out port
Four v3.0 USB Ports on I/O / Two on rear/side I/O
LAN Port: RJ45 10/100/1000 Base-T
VGA Port = DB15F for second display (Maximum resolution: 1920 x 1200)
Power Connection for External 60W, 12V / 5A power adaptor 100-240V / 50-60Hz
DC-Out (12V)
Standard Cash Drawer Port
(Located on the right side of the
connection panel near the DC-Out
and the Power Button.)
Selectable 24V / 12V
