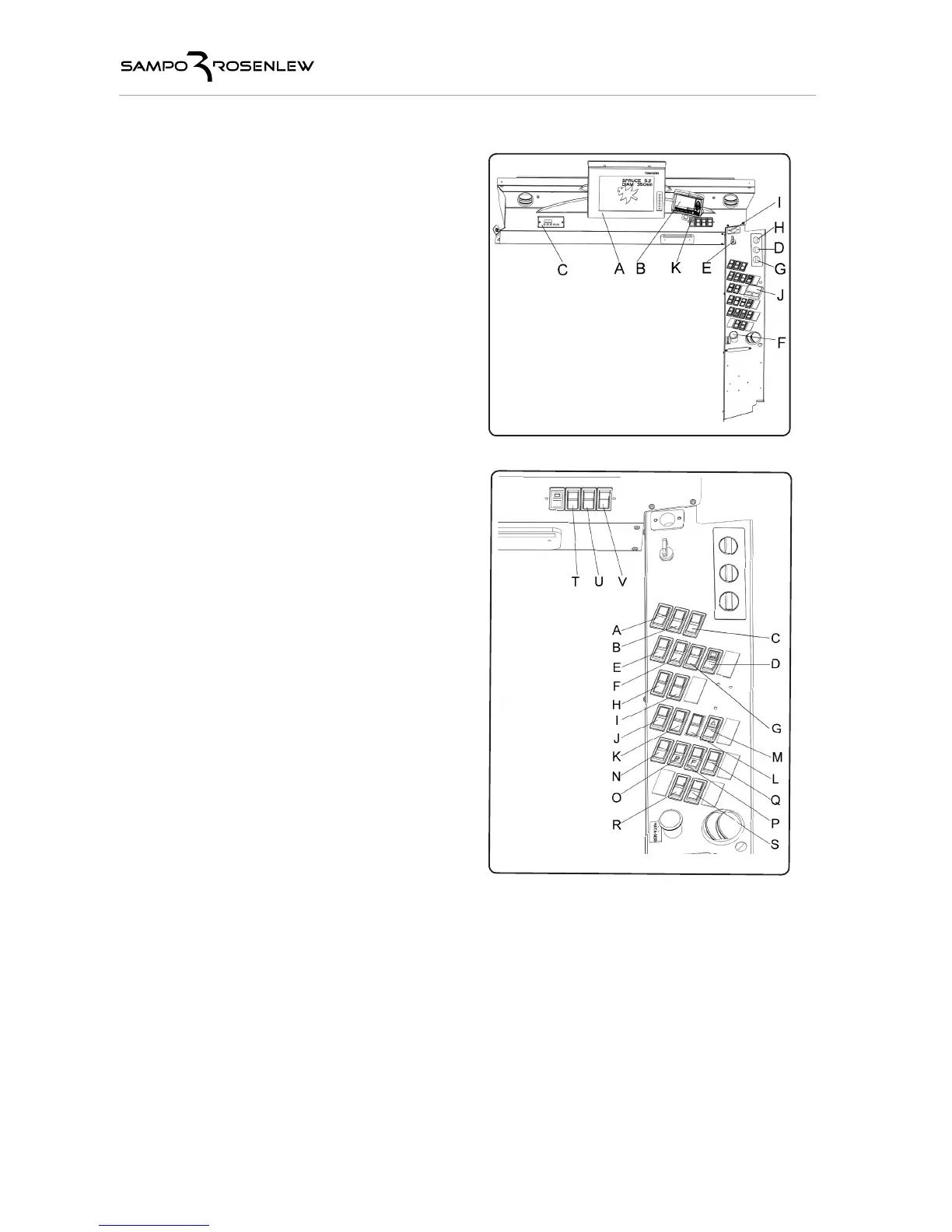

Equipment on the
instrument panel (fig. 1)
A Harvesting computer display
B IQAN system display
C Engine heater display
D AC regulator
E Ignition, starter (and electric stop)
F Emergency stop
G Heater thermostat
H Fan speed regulator
I Phone outlet
J Measuring device touchpad
K Charge indicator light
Switches on the
instrument panel (fig. 2)
A Throttle
B Frame lock
C Brakes
D PC
E Sound signal
F Windscreen wiper
G Windscreen washer
H Harvesting computer
I Seat heating
J Working lights + delayed light
K Working lights
L Working lights
M Emergency flasher
N 4WD
O Rear lock
P Differential lock front
Q Emergencylight (red)
R Working lights, engine
S Master switch
T Turning signal
U Headlights, dipped
V Headlights, full
Operator control instruments
