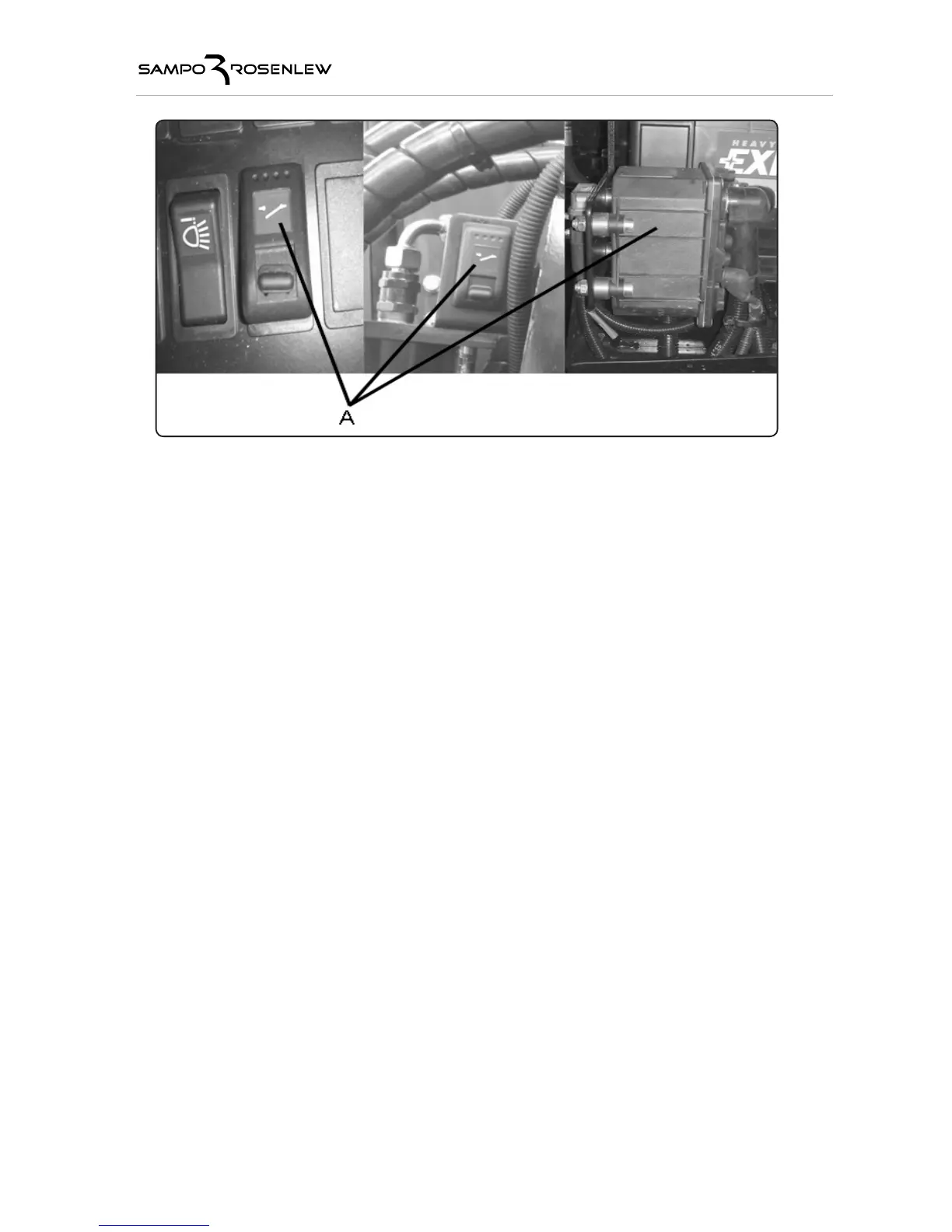

Main power switch (Fig. 15) Controls Electricity for the Whole Forest
Harvester
There is an electric main power switch to control the electrical instruments of the harvester.
It is located on the left-hand side, behind the rear wheel inside a closed box. There are two
power switches. One is inside the cabin on the side instrument panel, and the other one inside
the aforementioned closed box.
When you leave the cab for an extended period of time, always switch the power off from
the main switch as well. Just turning the ignition key to the 0 position leaves several electri-
cal equipment on, including the fan motor. This uses enough power to potentially cause the
battery to empty while you are away.
Emergency stop
When the emergency stop switch (fig. 1, switch F) is depressed all the way, the diesel engine
gets switched off, but there is still current in the electrical system, but the power to the joys-
ticks, the crane control module and harvester head module switches off. This engages the
brakes. When the engine is switched off, the harvester cannot be steered.
