Service measures
daily or every 8 hours
1. Checking of the engine oil level
Stop the engine on level ground and wait for
a few minutes. The oil level shall be between
the marks on the dipstick. Fig. 27.

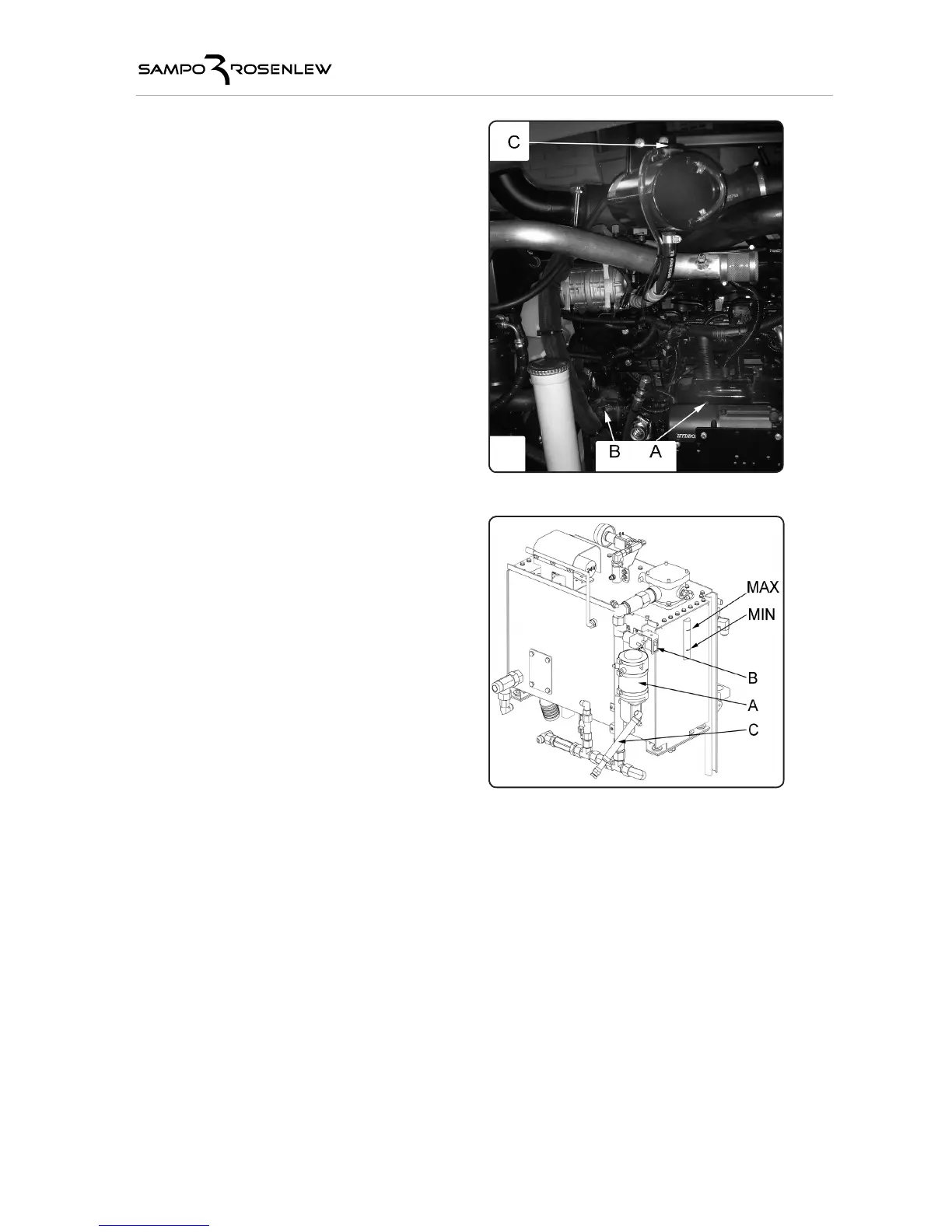

Fig. 27
A Oil measuring dipstick
B Oil filler
C Coolant check / refill
2. Checking of the coolant level
Note! Open the over-pressurised radiator cap
with great care when the engine is hot.
Never use plain water as coolant!
Do not pour cold coolant into a hot engine.
The coolant level shall be approx. half way up
the expansion tank.
Coolant is added through the expansion tank.
Make sure there is anti-freeze in the radiator
in the cold season.
3. Checking of the hydraulic oil level
Check the hydraulic oil level in the measuring
glass on the tank with the lift cylinders in their
inner position.
Note! The oil level shall always be visible in the
measuring glass.
Add oil using the oil refill pump A (figure 28).
The pump starts from switch B and oil is sucked
into the tank through hose C. This will leave all
the impurities in the filter.
4. Daily lubrication
Lubricate the daily lubrication points in compli-
ance with the lubrication table. See Lubrica-
tion Table.
