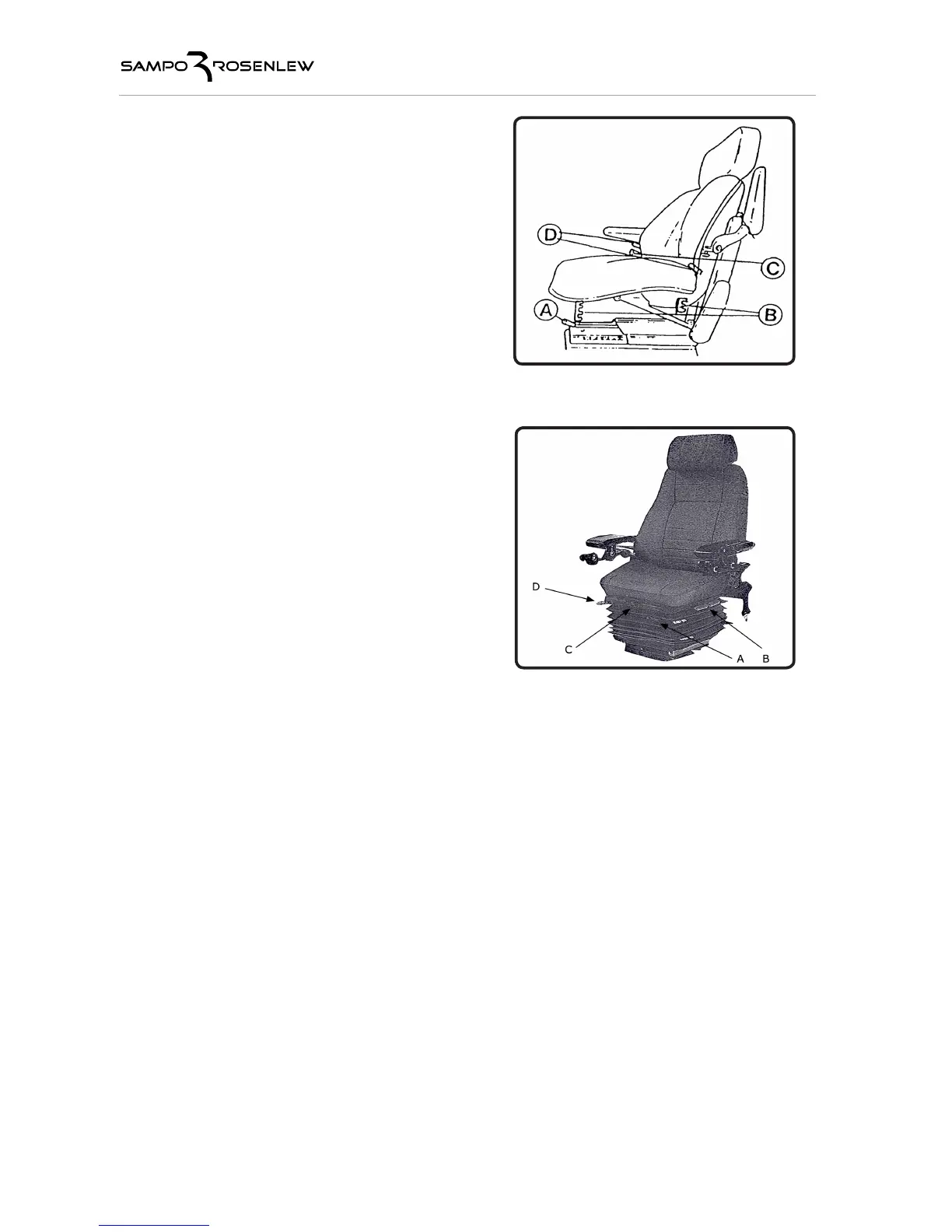

Seat has several
adjustments (fig. 10)
1.
To adjust the fore and aft position of the seat,
lift lever A and move the seat in the required
direction.
2.
Adjust the height using forks B at the front and
back of the seat.
3. Adjust the suspension using lever C.
4. Adjust the backrest angle using lever D.
Air suspended seat has
more adjustments (fig. 11)
1.
To adjust the fore and aft position, unlock
lever A and move the seat in the required
direction.
2. Adjust the height and fore/aft tilt by pressing
levers B on the side of the seat and lifting/
depressing the front or rear of the seat.
3.
Adjust the seat suspension pneumatically by
pressing button C.
4. Adjust the backrest angle using lever D.
5. If the seat has side tilt, it can be tilted using
the regulator unit on the armrest.
