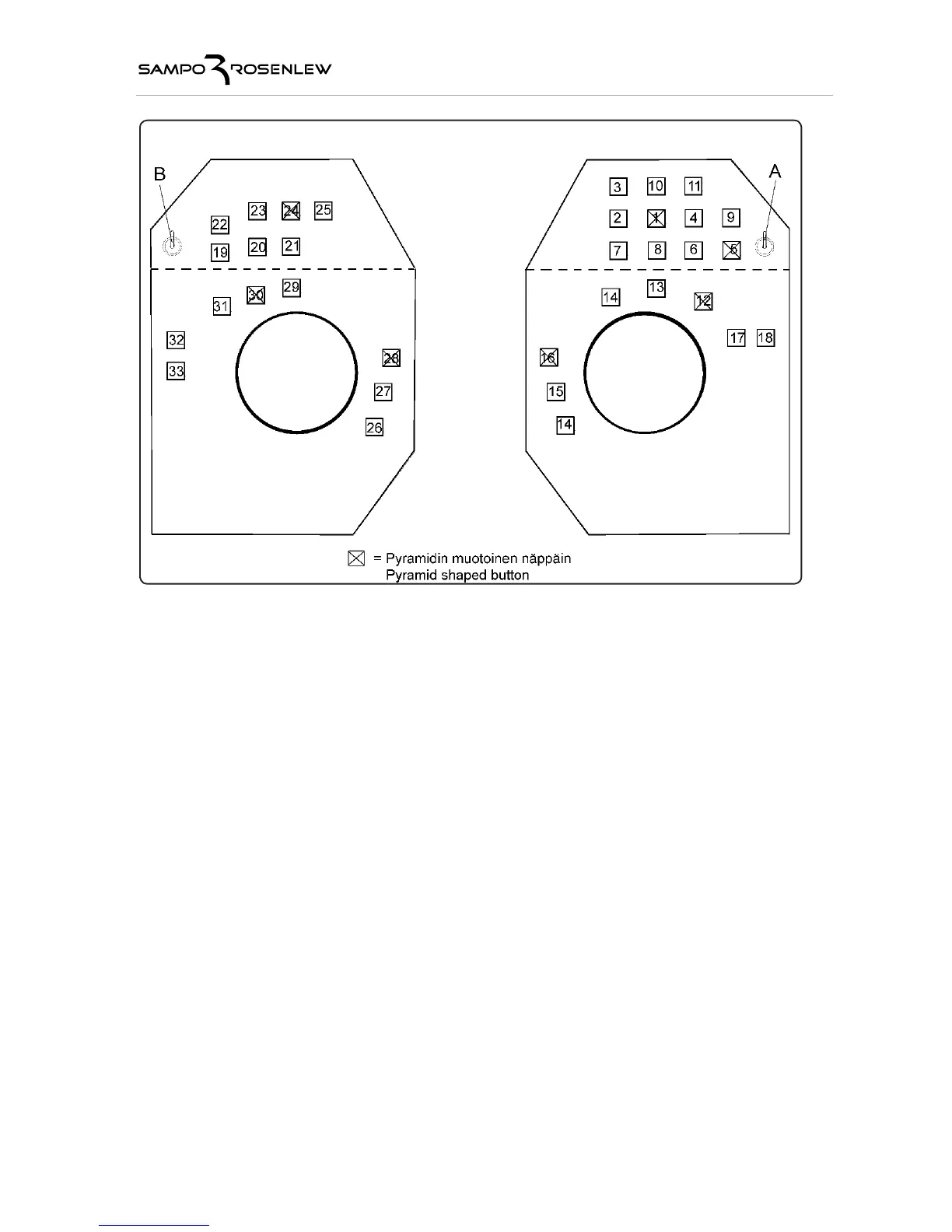

Switches on the push button boards on mini joysticks (fig. 6)
Left-side push button board
19 Programmable (tree species 1)
20 Programmable (tree species 2)
21 Programmable (color B)
22 Programmable (tree species 3)
23 Programmable (tree species 4)
24 Programmable (color A)
25 Programmable (shift)
26 Rear knife open
27 Tracks / rolls open
28 Front knives / knives open
29 Vacant
30 Tilt up
31 Tilt down
32 Boom side tilt vertical straightening
33 Single wipe
B Driving direction
Right-side push button board
1 Programmable (preset)
2 Programmable (preset)
3 Programmable (preset)
4 Programmable (preset)
5 Programmable (down)
6 Programmable (preset)
7 Programmable (preset)
8 Programmable (preset)
9 Programmable (up)
10 Programmable (preset)
11 Programmable (preset)
12 Slow feed backward
13 Slow feed forward
14 Feed backward
15 Feed forward
16 Saw
17 Programmable (color test)
18 Programmable (urea)
A Drive / harvest toggle switch
Functions displayed on this list are usually programmed in the programmable switches.
However, it is possible to tailor the programming for each customer.
