Vertical lever switches when the harvester
head does not have a rear knife B.
1 Tilt up / down
2 Knives open
3 Tracks / rolls open
4 Slow feed forward
5 Slow feed backward
6 Driving direction
7 Programmable (urea)
8 Fast feed forward
9 Fast feed backward
10 Head open / closed
11 Saw
12-15 Programmable (tree species 1-4)
16-27 Programmable (preset)
A Drive / harvest switch
Vertical lever switches when the harvester
head has a rear knife C.
1 Knives open
2 Tracks / rolls open
3 Tilt up / down
28 Rear knives open

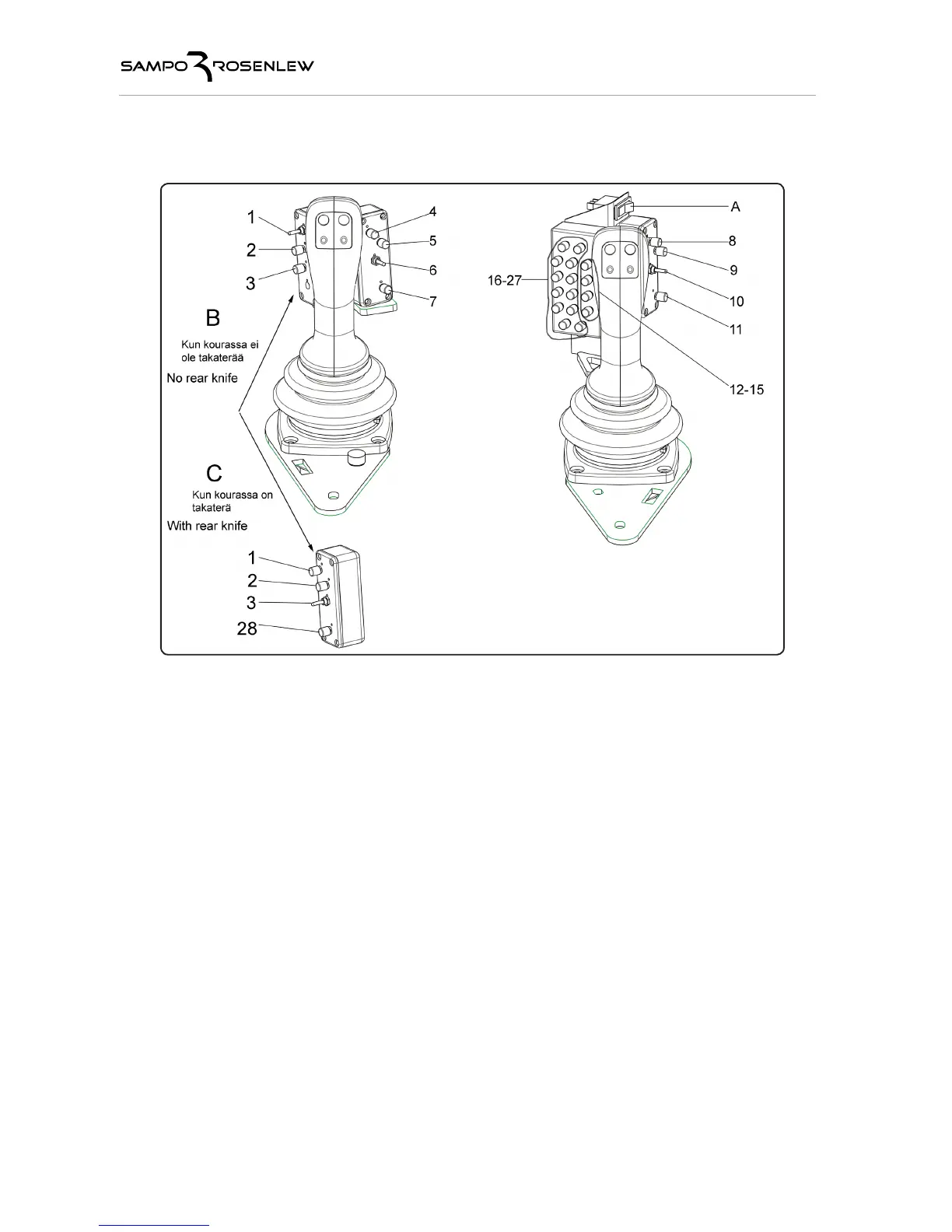

Joystick switches on vertical levers (fig. 7)
Functions displayed on this list are usually programmed in the programmable switches.
However, it is possible to tailor the programming for each customer.
