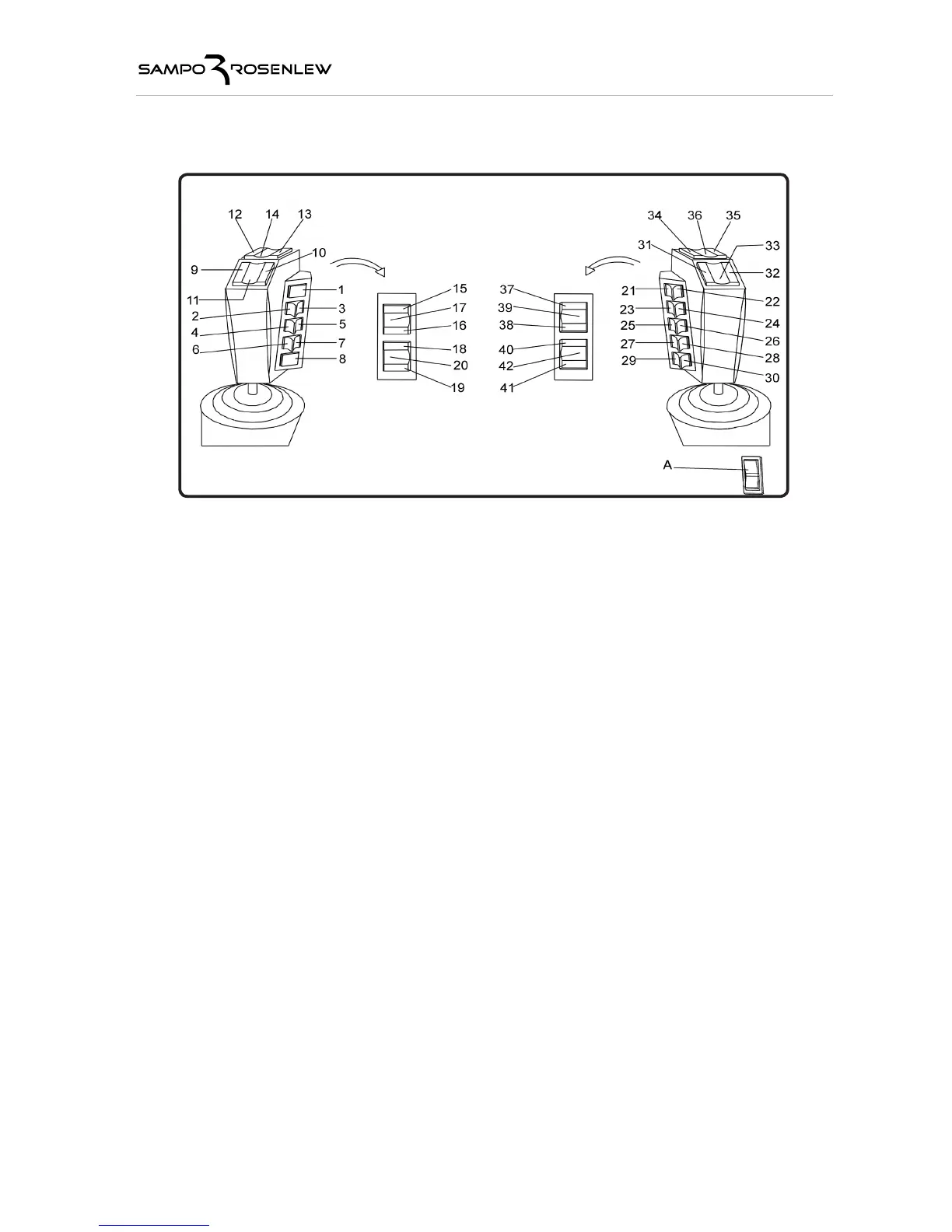

Joysticks switches on the EME levers (fig. 8)
1 Saw
2 Programmable (tree species 1)
3 Programmable (tree species 2)
4 Programmable (tree species 3)
5 Programmable (tree species 4)
6 Driving direction backwards
7 Driving direction forward
8 Single wipe
9 Feed backward
10 Feed forward
11 Vacant
12 Slow feed backward
13 Slow feed forward
14 Vacant
15 Tilt up
16 Tilt down
17 Vacant
18 Boom side tilt vertical straightening,
or side tilt automation reset
19 Boom side tilt vertical straightening or
side tilt automation reset (the same
function as above)
20 Vacant
21 Programmable (quality 1)
22 Programmable (quality 2)
26 Programmable (quality 3)
24 Programmable (quality 4)
25 Programmable (quality 5)
26 Programmable (quality 6)
27 Programmable (color test)
28 Programmable (shift)
29 Programmable (new frame)
30 Programmable (reset)
31 Head open
32 Head closed
33 Vacant
34 Knives open
35 Tracks / rolls open
36 Rear knife open
37 Programmable (up)
38 Programmable (down)
39 Programmable (cross-cutting length)
40 Boom side tilt right
41 Boom side tilt left
42 Vacant
A Drive / harvest switch
