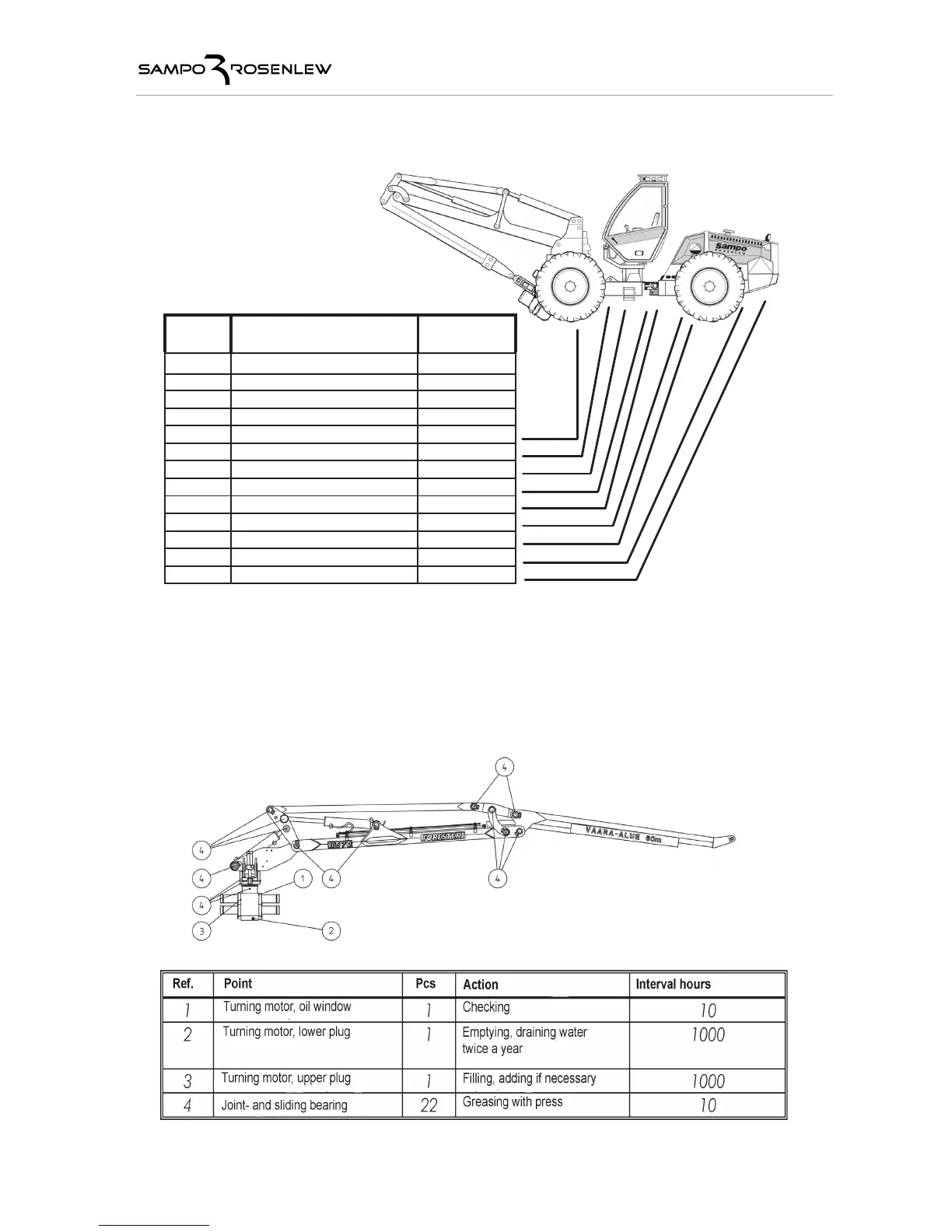

Lubrication diagrams
Ref. Point Interval (h)
Harvester head Daily
Crane 10
Drive shafts 50
Differential lock 50
1 Final drives 1 500
2 Gear box 1 000
3 Brakes 50
4 Steering cylinders 50
5 Joint 50
6 Hydraulics 1 000
7 Frame lock 10
8 Engine 500
9 AC
Lubrication of crane and changing of oil in turning motor
The crane is lubricated every 10 hours. The lubrication points are shown in picture
The oil change interval in the turning motor is 1000 hours.
Hypoid oil type SAE 80W/90, API GL-5 is used in the turning motor. See further instructions
in the Crane Manual.
