Using of auxiliary battery
If additional power is needed for starting, proceed as follows:
As a source of additional power use 24 V input for example: another 24V vehicle, startbooster
or two 12V batteries in series. Make sure the harvester batteries has not frozen; a flat battery
freezes in -10°C.
Follow carefully the connecting sequence given below:
1. Connect the auxiliary starting cable to the positive pole of the additional power source.
Connect other end of the cable to the 30-pole of the main switch (that is +24V cable

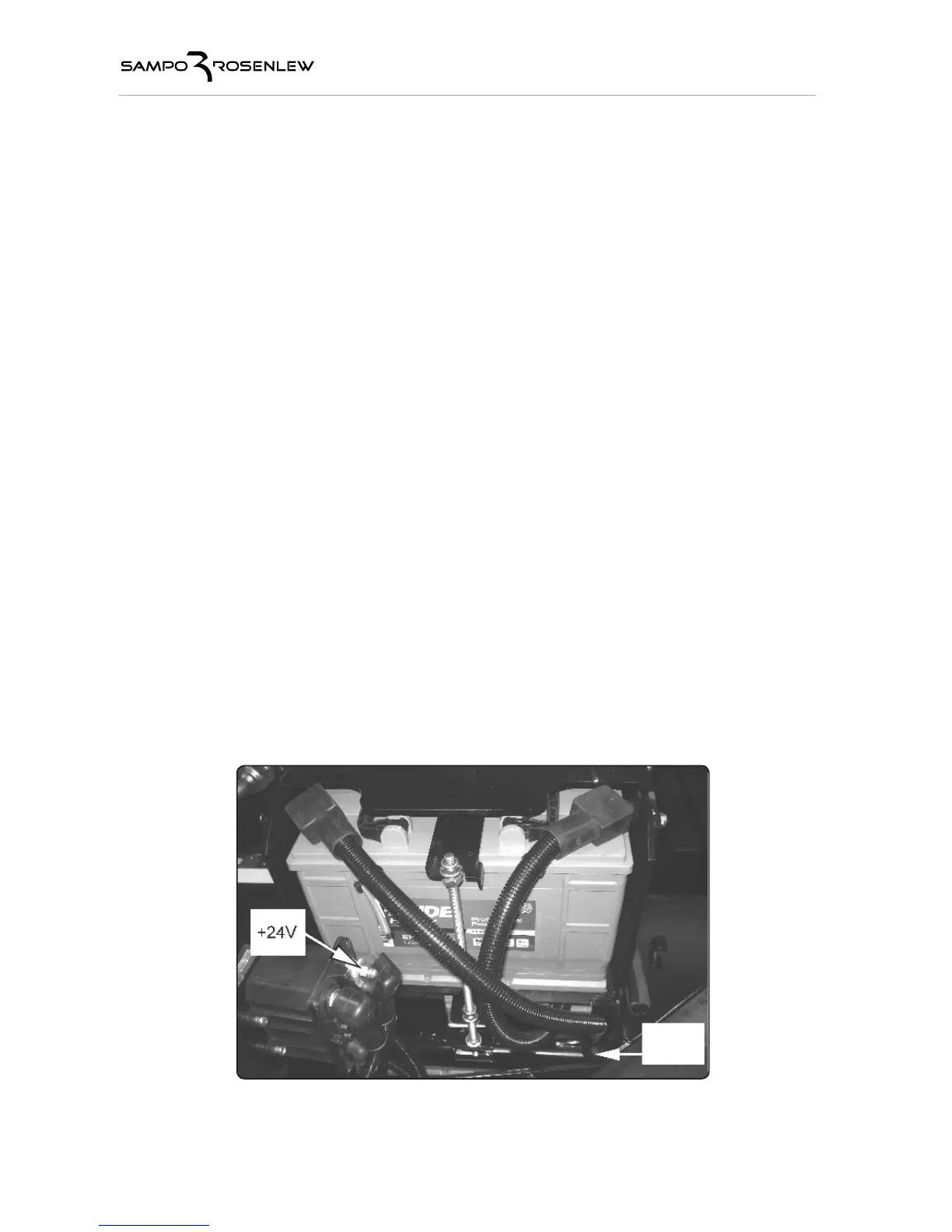

from harvester batteries fig.49).
2. Connect one end of another auxiliary starting cable to the frame of the harvester (same
point where batteries grounding is located fig.49). Connect the last end to the negative
pole of the additional power source.
Do not lean over the batteries while making the connections.
Start the engine.
Disconnect the cables in exactly the opposite order.
Installation of Additional Electrical Instruments
When installing additional electrical instruments to the harvester, make sure the size of the
charge generator is 100 A. The total consumption of a basic forest harvester in the dark is 70-
90 A consisting mainly of the following:
Headlights 6 A
Working lights 40 A
Gauge lights approx. 1 A
Three-speed cab fan 7 A
Harvesting computer 7 A
Hydraulics 8 A
Joystick functions approx. 3 A
