- 73 -

SR 1046PRO

instruction manual

H

a r v e s t e r

2/2012

Table of Contents

Introduction3
Table of Contents4
Safety Precautions5
- Safety Distances When Harvesting under Open - Wire Power Lines7
- In Case of Accident7
- Repair and Service8
- Local Laws and Regulations9
- Fire Safety9
- Danger Symbols10
Marking of Danger Points10
Engine Number12
Type Marking12
Technical Specifications13
Certificate on Conformity to the EU Directives14
Guarantee15
Harvester Head16
Structure and Functions of the Forest Harvester16
Cut - Away Picture of the Forest Harvester17
Equipment on the Instrument Panel18
Operator Control Instruments18
- Equipment on the Ceiling19
- Vertical Levers20
- Mini Levers20
- Switches on the Push Button Boards on Mini Joysticks21
- Left-Side Push Button Board21
- Right-Side Push Button Board21
- Joystick Switches on Vertical Levers22
- Joysticks Switches on the EME Levers23
Signs and Symbols24
- Doorswitch25
- Joystick Positions25
Operation and Adjustments25
- Seat Has Several Adjustments26
- Air Suspended Seat Has more Adjustments26
- Brakes While Driving27
- And Harvesting27
- Parking Brake27
- Frame Lock27
- Traction Transmission28
- Four Wheel Drive28
- Differential and Rear- Wheel Drive Lock28
- Starting of the Engine30
- Stopping of the Engine30
- Main Power Switch Controls Electricity for Whole Forest Harvester31
- Emergency Stop31
- Working Lights32
- Cab Fresh-Air Fan Provides Good Ventilation32
- Heater Provides Additional Heat from the Engine32
- Air Conditioner Cools the Air in the Cab32
- Towing33
- Engine, Source of Power34
- Suction Air Filter34
- Fill the Tank with Fuel Free from Impurities34
- Crane Side Tilt Automation35
- Daily Checks of the Engine35
- Cooling System35
- Lubrication System35
- Fire Extinguishers36
- Opening of the Guards36
Hydraulics37
Electricity39
Safety Symbols40
Iqan Control System40
- Iquan Display Menus41
- Main Menu42
- System Information42
- Settings42
- Measuring43
- Adjustments43
- Adjusting a Parameter44
- Internal Disnostics of the Iquan Display44
- Instrument Panel Display44
- Submenus45
- Adjusting the Diesel Engine Revolution Speed45
- Diesel Temperatures, Oil Pressure and Operating Hours46
- Crane Measurements46
- Parameters in the Iqan Control System47
- Adjustable Parameters48
- Digital Outputs49
- General Instructions50
- Safety50
Service and Maintenance50
- Service Measures Daily or Every 8 Hours51
- Service Measures Weekly or Every 50 Hours53
- Service Measures Every 100 Hours53
- Service Measures Every 500 Hours55
- Service Measures Every 1 000 Hours57
- Service Measures Every 1 500 Hours58
- Service Measures Every 2000 Operating Hours60
- Service Measures Every 4000 Operating Hours60
- Service Measures Every 6 Months61
- Service Measures Every 1 Year61
- Service Measures Every 2 Years61
Lubrication62
- Lubrication Diagrams63
- Lubrication of Crane and Changing of Oil in Turning Motor63
Summary of Periodical Procedures64
Storage When Not in Use65
Recommended Tools and Accessories66
- Checking of the Charge State of the Battery67
- Cleaning of Battery and Other Maintenance67
- Using of Auxiliary Battery68
- Installation of Additional Electrical Instruments68
Hydraulic Diagram69
Hydraulic Diagram Part Catalogue SR1046 Pro70

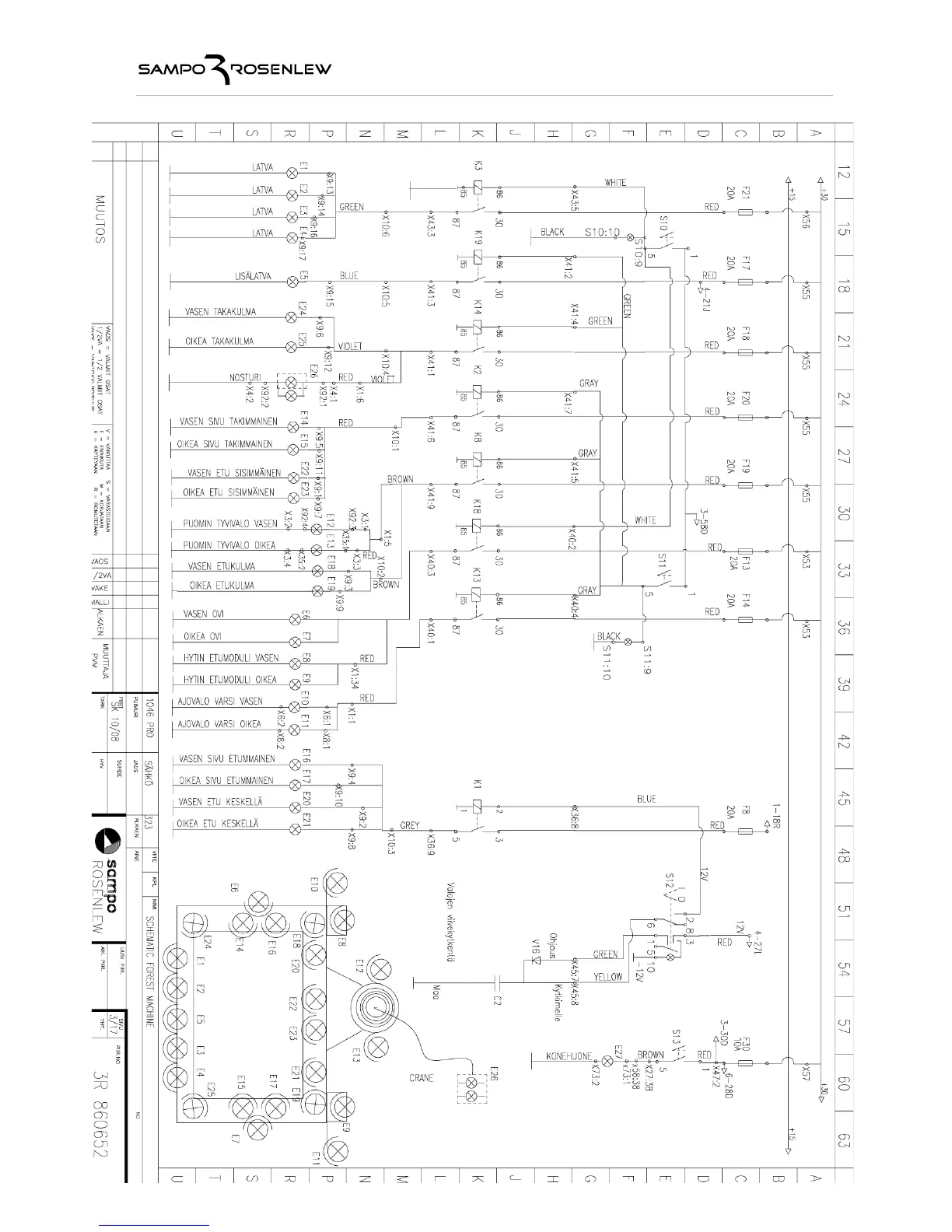

Electric Diagram71
Electrical Parts88
