62 EB 8384-2 EN
Mounting and start-up
Intermediate plate for AA4 interface
Î RefertoFig.17.
An intermediate plate (1) must be mounted
between the adapter block and adapter
bracketforPFEIFFERSRPandDAProtaryac-
tuators in sizes 900 and 1200 with AA4 in-
terface. This plate is included in the accesso-
riesfortheshaftadapterAA4(seeTable6
onpage26).
Mounting a solenoid valve
Î RefertoFig.18.
A solenoid valve can also be mounted in
place of the blank plate (18). The orientation
of the turnboard (17) determines the mount-
ing position of the solenoid valve. Alterna-
tively, a restrictor plate can be mounted. Fur-
ther information can be found in the docu-
ment uAB11(AccessoriesforSolenoid
Valves).
Version for single-acting actuator: Version for double-acting actuator:
11 Intermediate plate
11 11

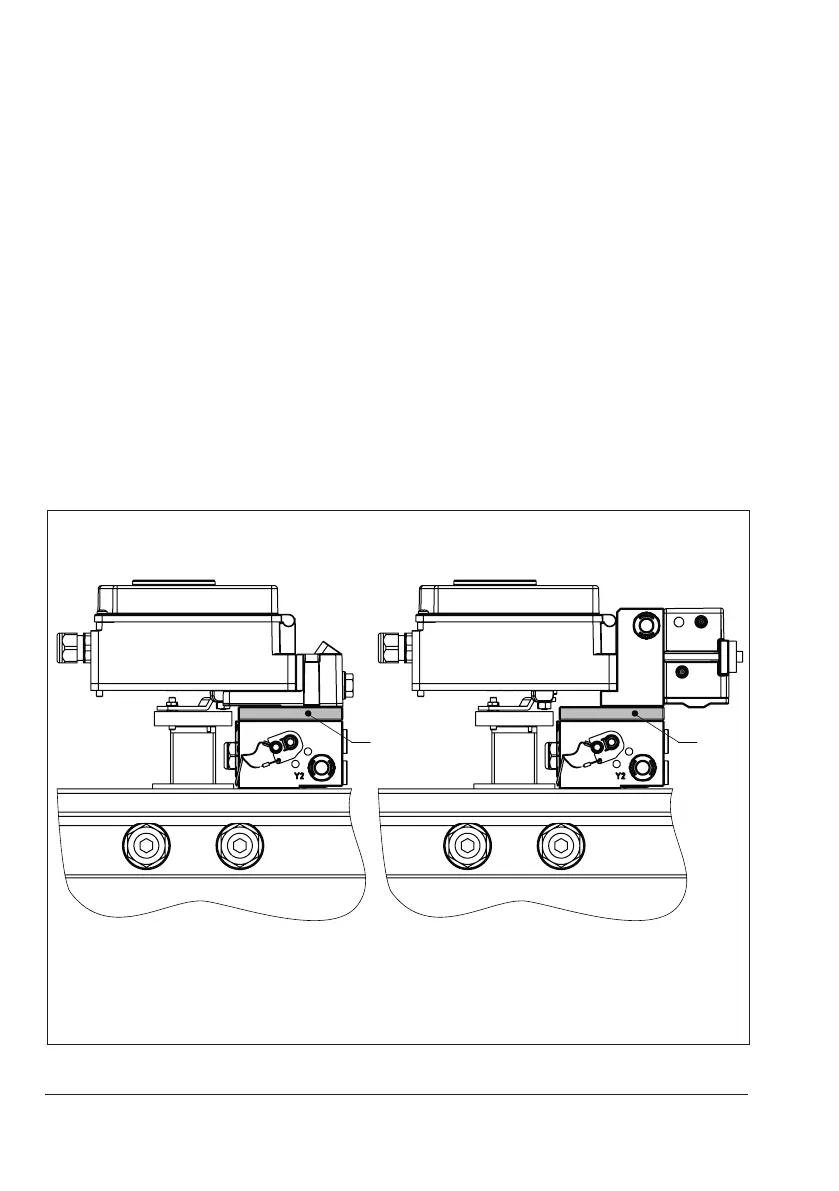

Fig.17: Intermediate plate for actuators in sizes 900 and 1200 for AA4 interface
