Disassembly and Reassembly
Samsung Electronics4-51
No Parts Procedure Remark
4
Ass'y Control In

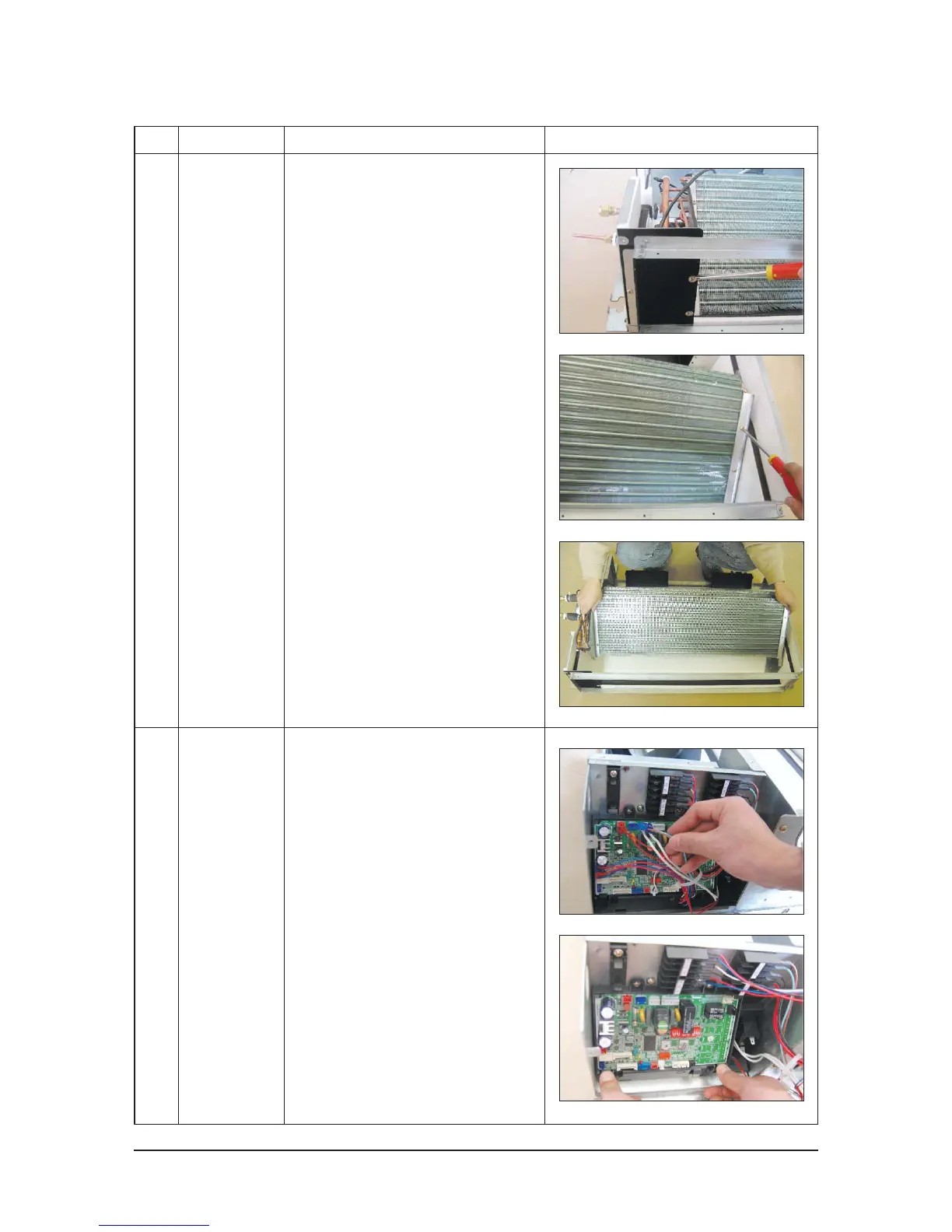

3) Disassemble the Support Evap. LF that
fixes the Evaporator.
– Unscrew 2 screws
4) Disassemble the Support Evap RH.
– Unscrew 2 screws
5) Disassemble the Evaporator form the set.
✳ The Control In should be disassembled
after disassembling the Cover Control
1-3).
1) Disassemble all Control Wires connected
to the inside of PCB.
2) In case of disassembling the PCB
separately, disassemble the PCB from
the case with pushing the hook after
unscrewing the screw.
– Unscrew 1 screw
To Next Page
