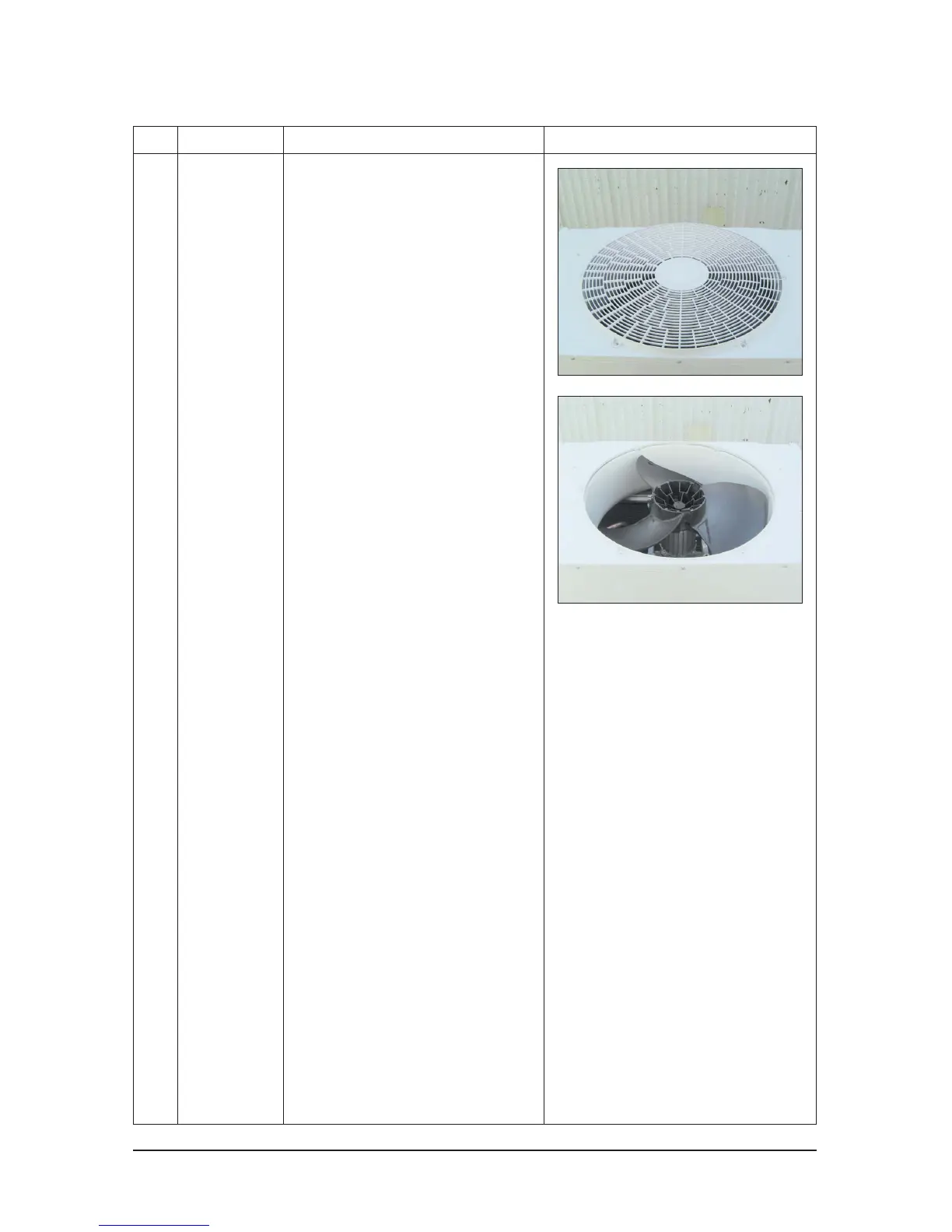

Disassembly and Reassembly
4-76Samsung Electronics
No Parts Procedure Remark
2 Motor
&
Fan
1) Remove fixing screw from the Bell Mouth.
2) Separate the Bell Mouth.
3) Remove fixing bolt from the Fan.
4) Separate the Fan from the Outdoor Unit.
5) Remove fixing screw and
6) After removing screws, separate the
Motor.
