Samsung DVM Plus 2 Series User Manual

Disassembly and Reassembly
4-12Samsung Electronics

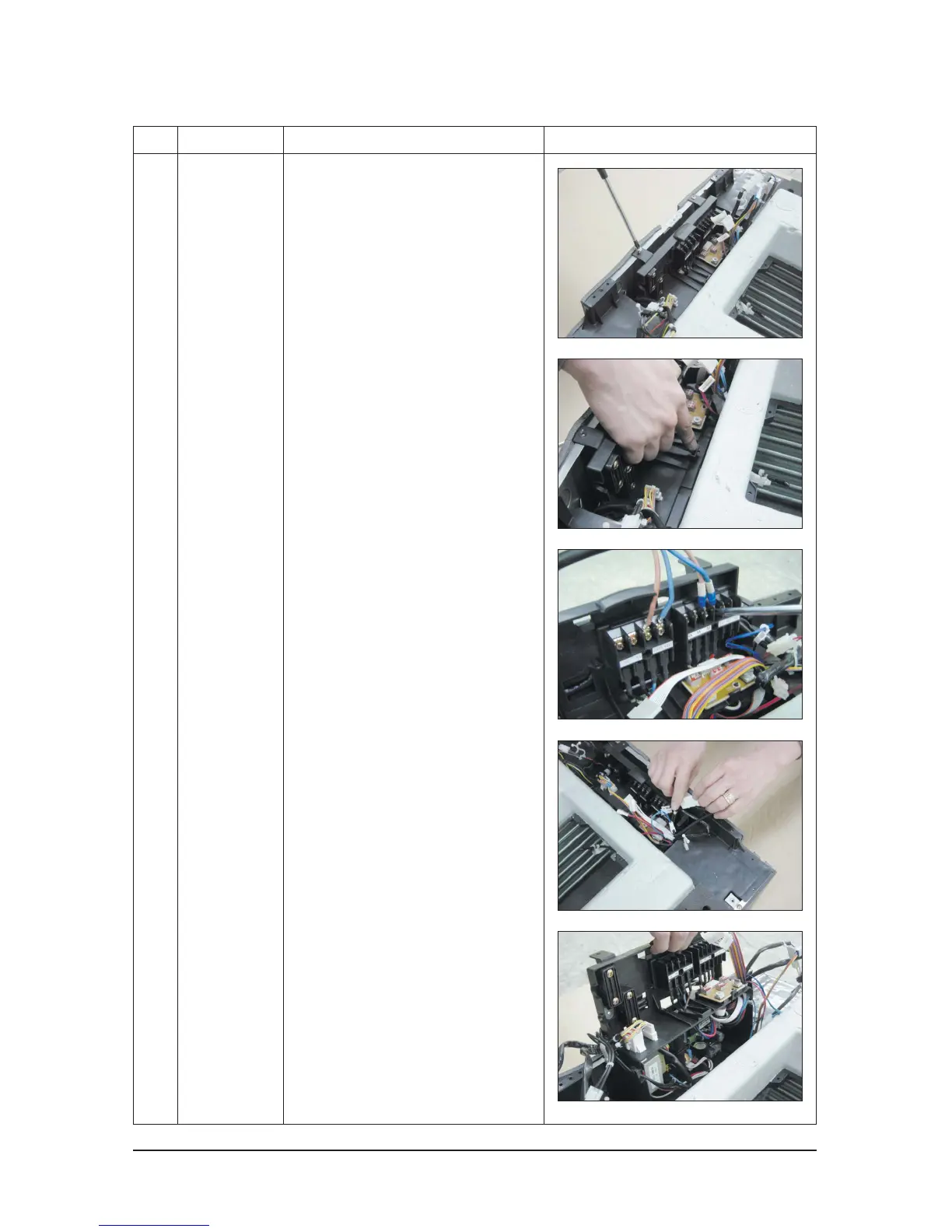

No Parts Procedure Remark
2 Ass’y Control In
1) Remove 2 fixing screws from the
Electronic Component part and separate
the Sensor Wire and Holder.
2) Separate the Case by pressing the hook.
3) Separate the Terminal Block Ass'y for
connection of the power cable and the
communication cable.
4) Separate the fan Motor Connector,
Sensor Connector, Drain Pump, and
Flat S/W Connector.
5) Remove the Electronic Component part
from the Indoor Unit.
