Disassembly and Reassembly
Samsung Electronics4-17

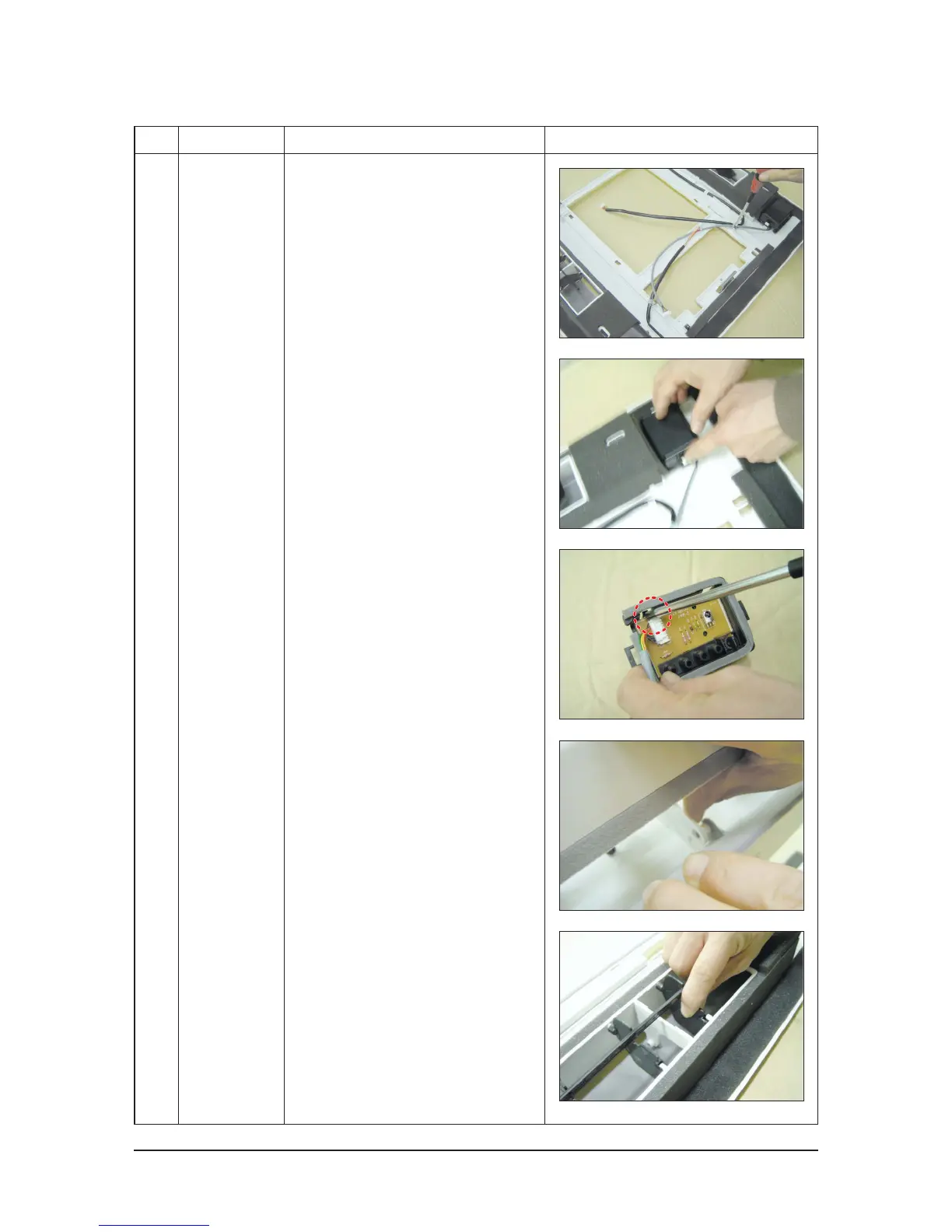

No Parts Procedure Remark
3) Remove the Cable Clamp fixing screws.
4) Separate the PCB Case form the Panel.
5) After removing the PCB fixing screws,
remove the PCB from the Case.
6) Pull back the Blade to the Panel and
separate the Blade starting from the
opposite side of the Step-Motor.
7) For separation of Blade V, after removing
the fixed partition, separate it by pulling
back to the left and right.
