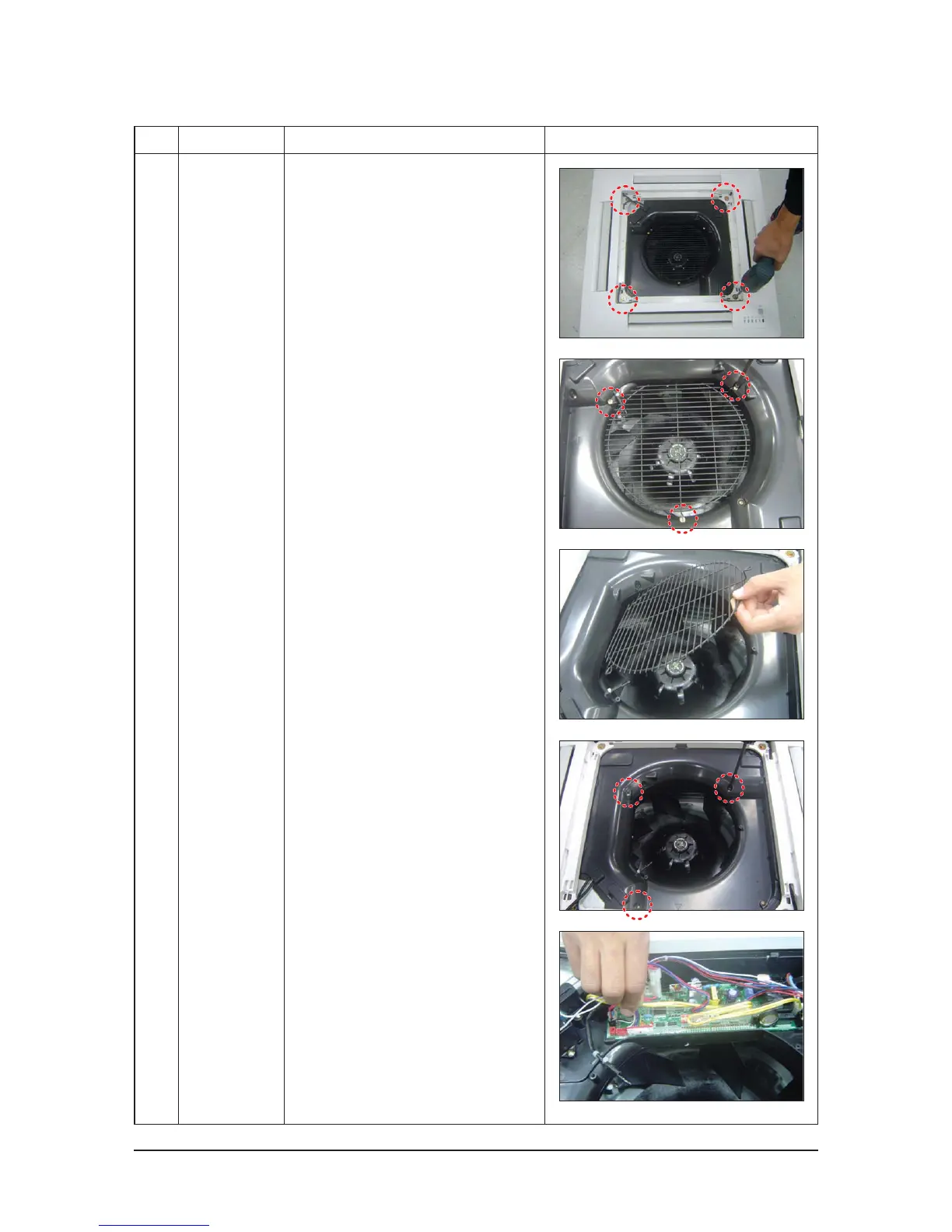

Disassembly and Reassembly
Samsung Electronics4-27
No Parts Procedure Remark
4) Loosen the 4 bolts slowly.
5) Loosen the bolt of the front net to
disassemble the safety net.
6) Loosen the 3 bolts to uncover the
Component Electric Box cover.
7) Disassemble the 2 cables between the
indoor unit and the Panel.
– Stepping Motor Connector
– Receiving &Display Unit Connector
