2. Panel
14
. Installation
Λ
Λ

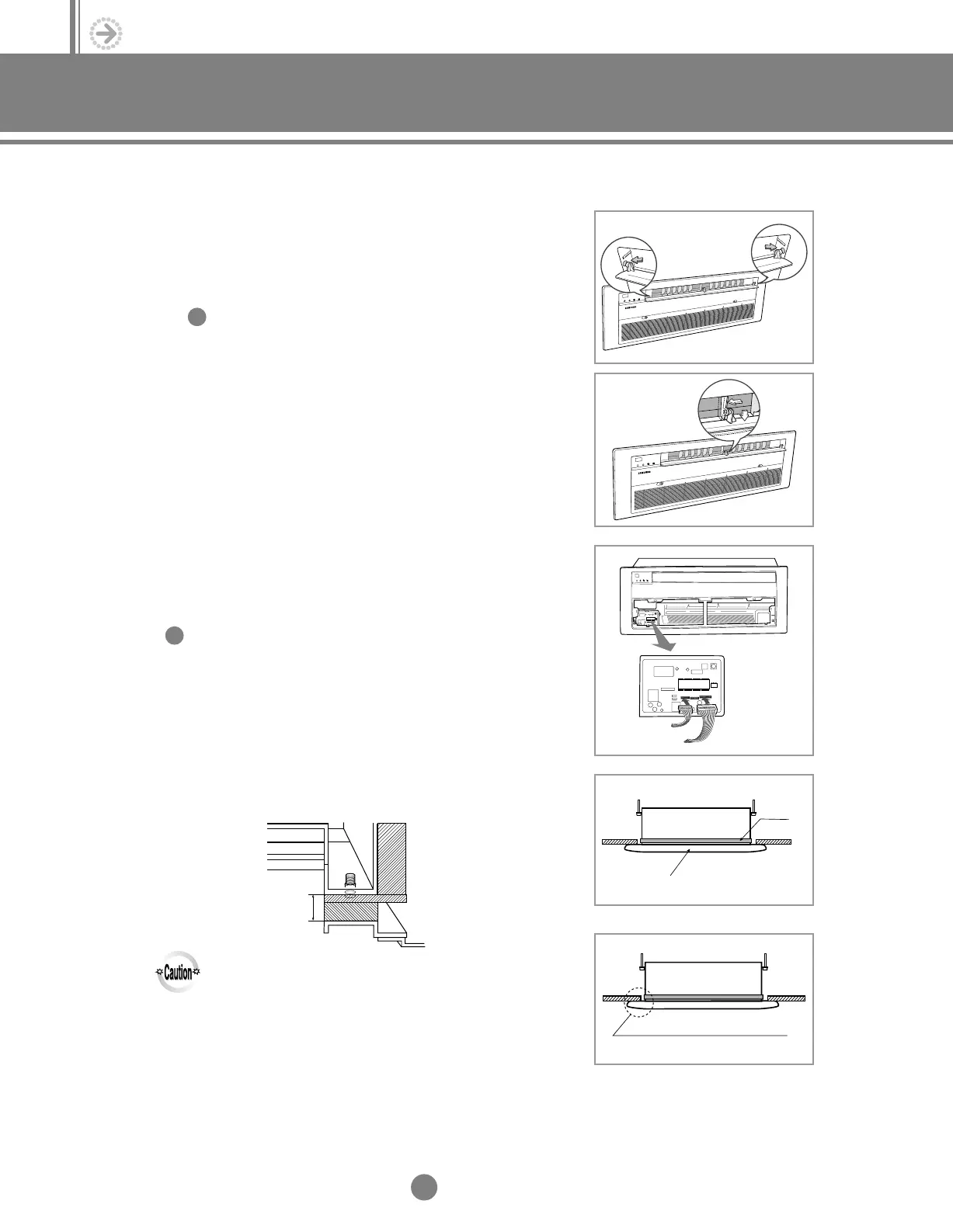

4) Install the air vane.
4-1 Affix the RHS of the vane to the indoor unit.
4-2 Affix the other side of the vane.
4-3 Fix the middle part of the blade by pushing slightly on
the middle tab in the indoor unit.
5) Open the electrical component box by removing the screws,
then connect the wiring between the electrical component
box and the panel.
6) Fix the panel by fastening the 4 bolts.
7) Reinstall the front grille.
➁
①
➂
Indoor unit
Panel
Insulation
Must fit tightly against the ceiling without any gap
◆ If the direction is incorrect, the blade will not be
insert easily. The right hand side has a small
rectangular groove.
IMPORTANT
◆ Make sure the wire colors are correct so that they
will not be mixed up.
IMPORTANT
Panel
Standard
length:3/4”
Indoor unit
◆
If there is a gap between the panel and the ceiling, adjust
the height of the indoor unit. If this gap is not removed,
condensate may form and drip from the gap.
5-1.Installation_TM_E_06890 2/27/03 10:15 AM Page 14
