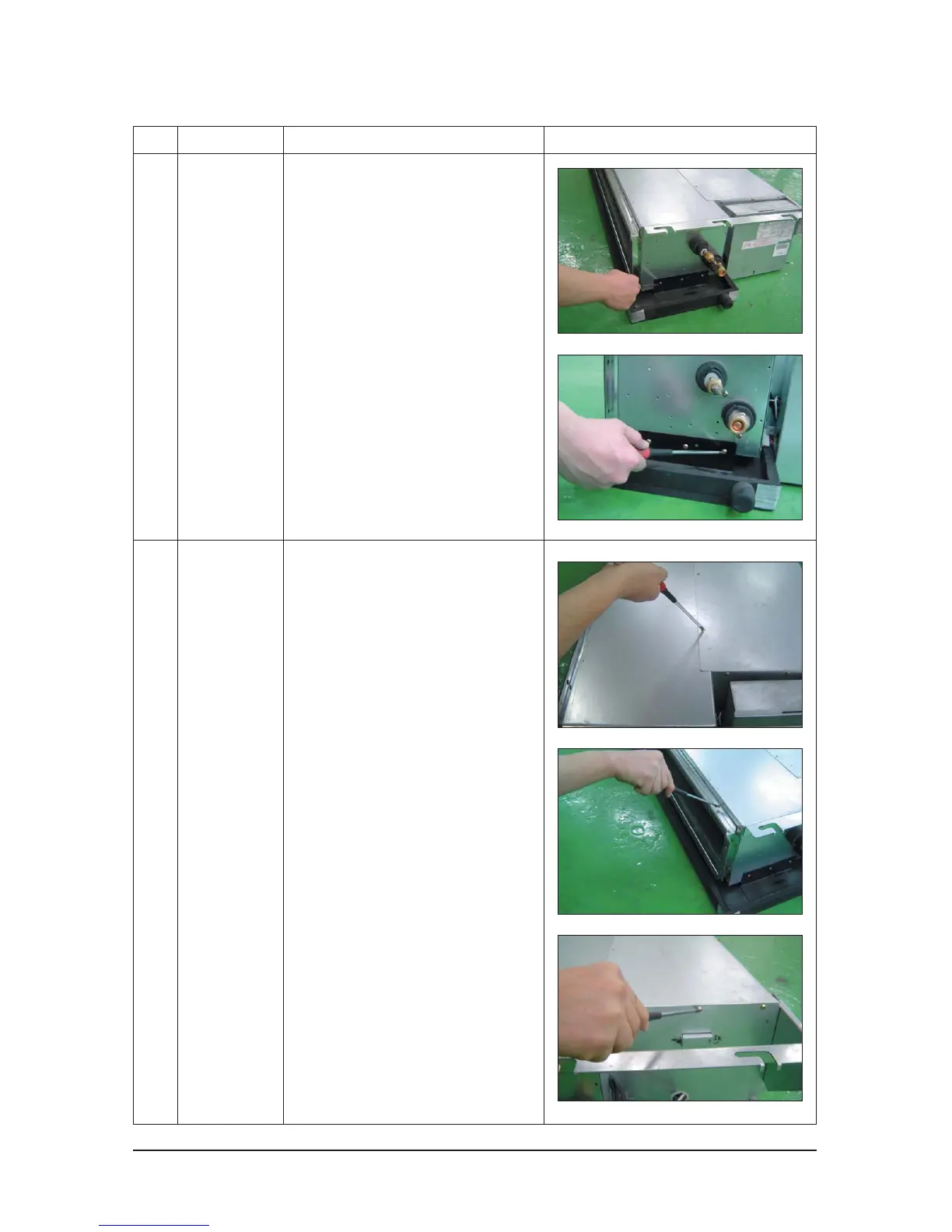

Disassembly and Reassembly
4-38Samsung Electronics
No Parts Procedure Remark
4
5
Drain Pan
EVAP
1) Disassemble indicating screws to detach
Ass'y Drain Pan. (screws each at left and
right side)
✳ Work is possible when disassembling the
Ass'y Drain Pan.
1) Disassemble indicating screws.
(each at left and right side)
2) Disassemble indicating screws.
3) Disassemble indicating screws.
✳ It is possible at the status of No.3 Ass'y
Control In disassembly at the time.
