Disassembly and Reassembly
Samsung Electronics4-154-15

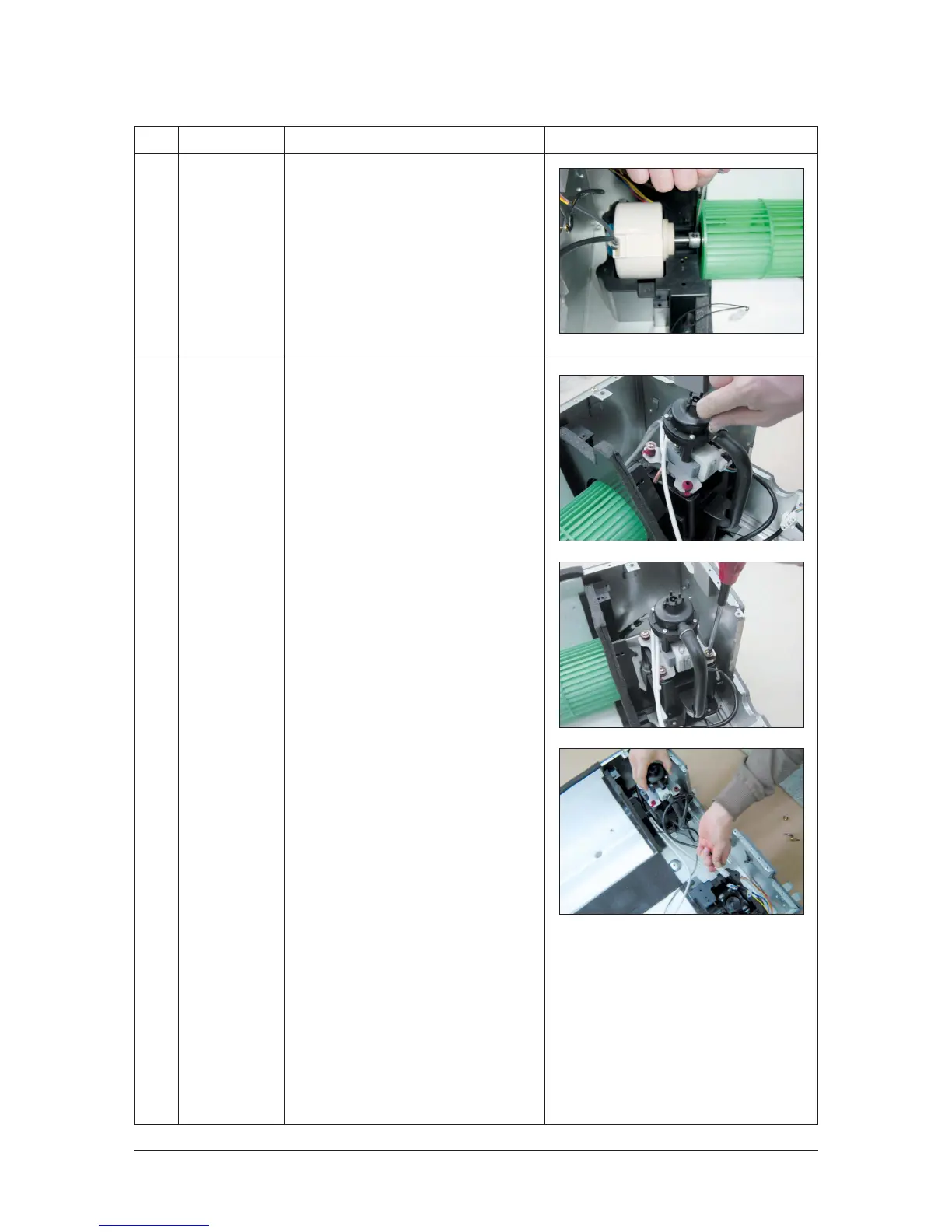

No Parts Procedure Remark
5 Drain Pump
3) Separate the Motor and Fan from the
Indoor Unit. (When separating the Fan
from the Motor, use a M3 wrench.)
1) Pull back the spring and separate the
Drain Hose from the Pump.
2) Disassemble 4 fixing screws fro the
Drain Pump.
3) After separate the Drain Pump connector,
separate the Pump.
