Disassembly and Reassembly
4-14Samsung Electronics

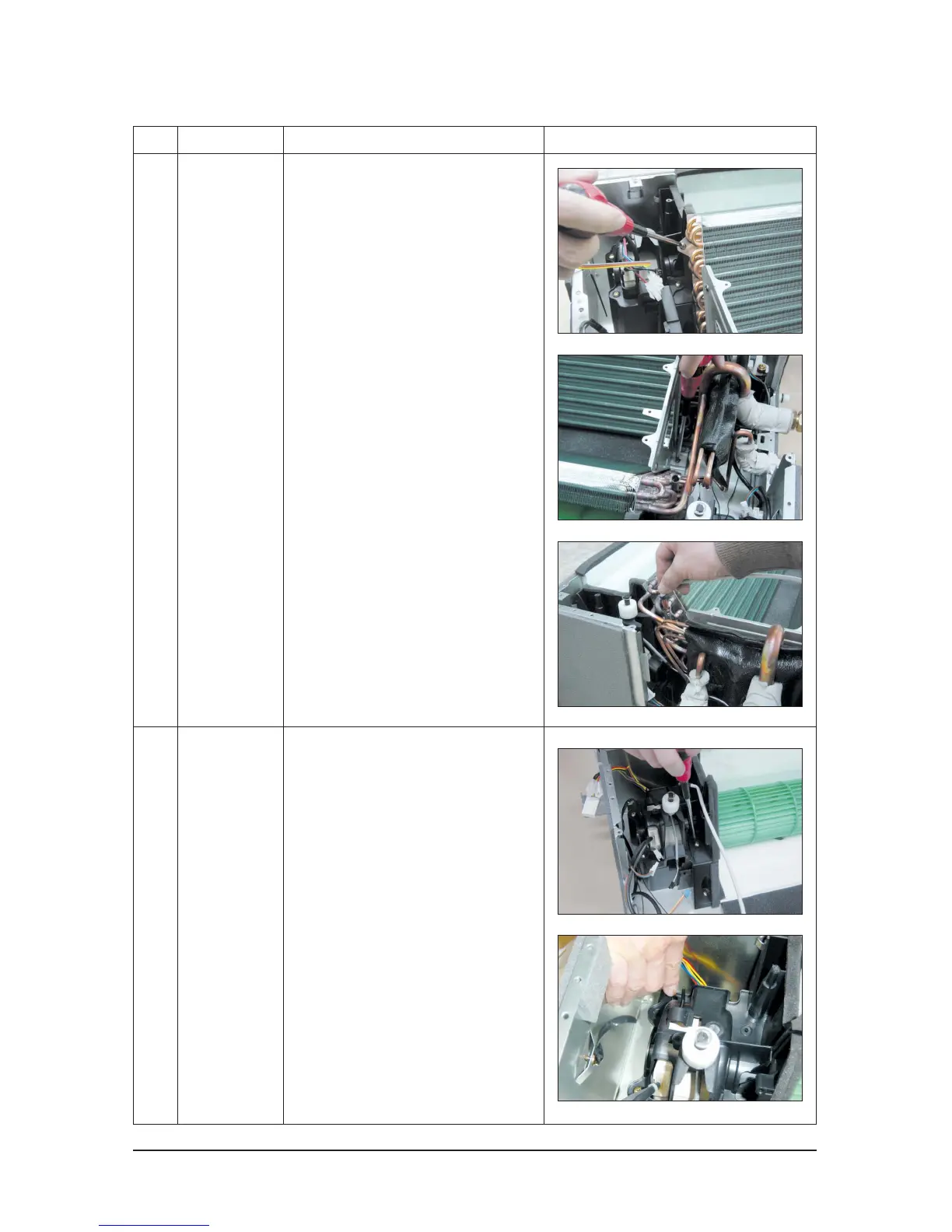

No Parts Procedure Remark
4
Fan
&
Motor
5) Remove 4 fixing screws from the Heat
Exchanger.
6) Remove the Drain Pump Sensor and
separate the Heat Exchanger from the
Indoor Unit.
1) Remove the Cover Motor and fixing
screws of Evap Guide.
2) After removing the Cover Motor by
pressing the hook, separate the Evap
Guide.
