OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 7 MAY 2010
7.25
REMOVE
KNOCKOUTS

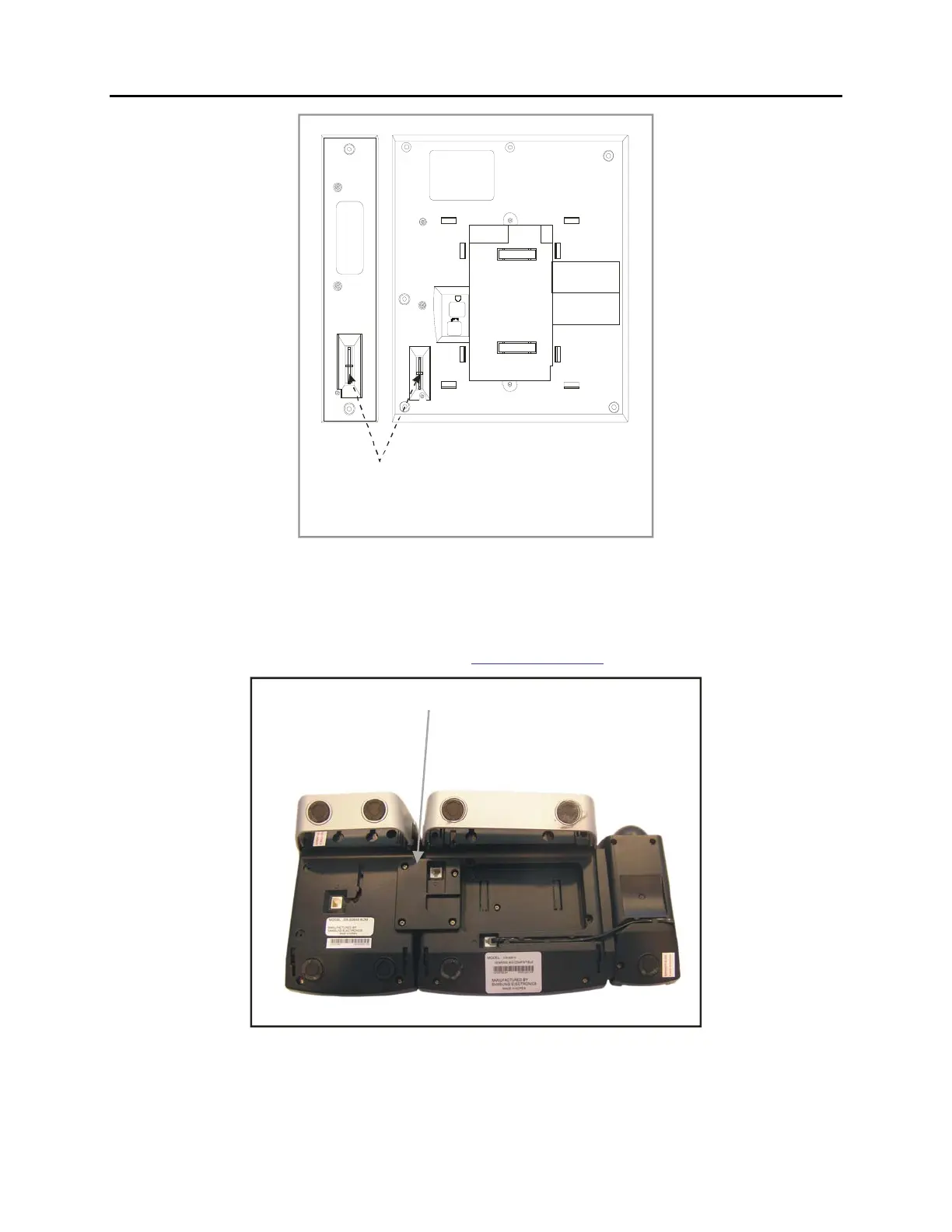

Figure 7.26 Attaching iDCS 14 Button Module to an iDCS Keyset
ATTACHING DS 64 BM TO a DS 5021D or a DS 5014D KEYSET
First, attach the bracket to the keyset with two of the screws provided. Then attach the 64BM
to the bracket with the remaining two screws. (See Figure 7.27).
MOUNTING BRACKET
Figure 7.27 Attaching DS 64 Button Modules to a DS 5021D or a DS 5014D Keyset
