Samsung OfficeServ 7400 - Page 36

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.20
S2 OFF ON
1 E1 T1
2 T1/E1 PRI
3 24B + D 24B
4 User (Slave) Network (Master)

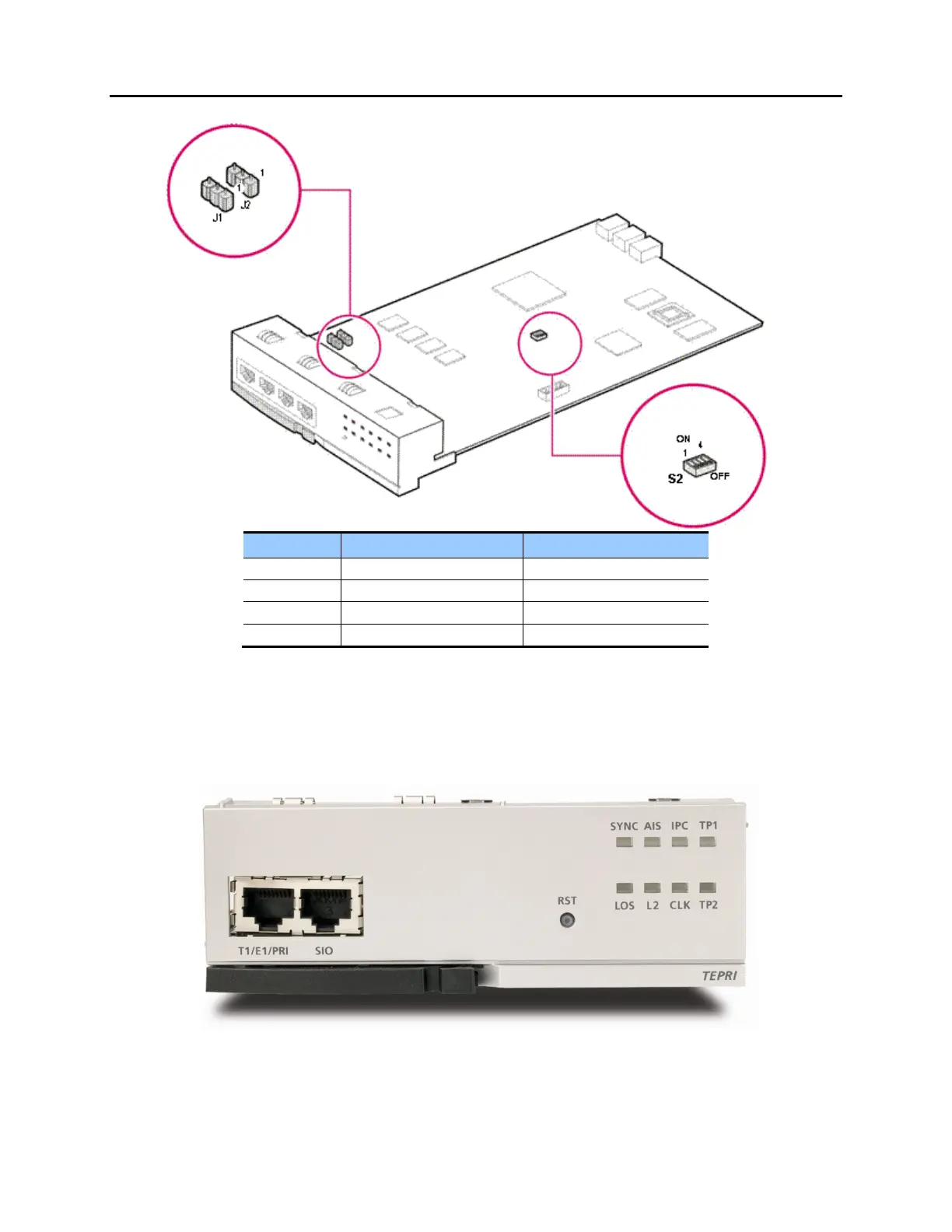

Figure 3.17 Setting Switches and Jumpers on the TEPRIa
FRONT VIEW OF TEPRI BOARD
The front view of the TEPRI board is shown in the picture below.
Figure 3.18 Front View of the TEPRI
