Samsung OfficeServ 7400 - Page 35

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.19

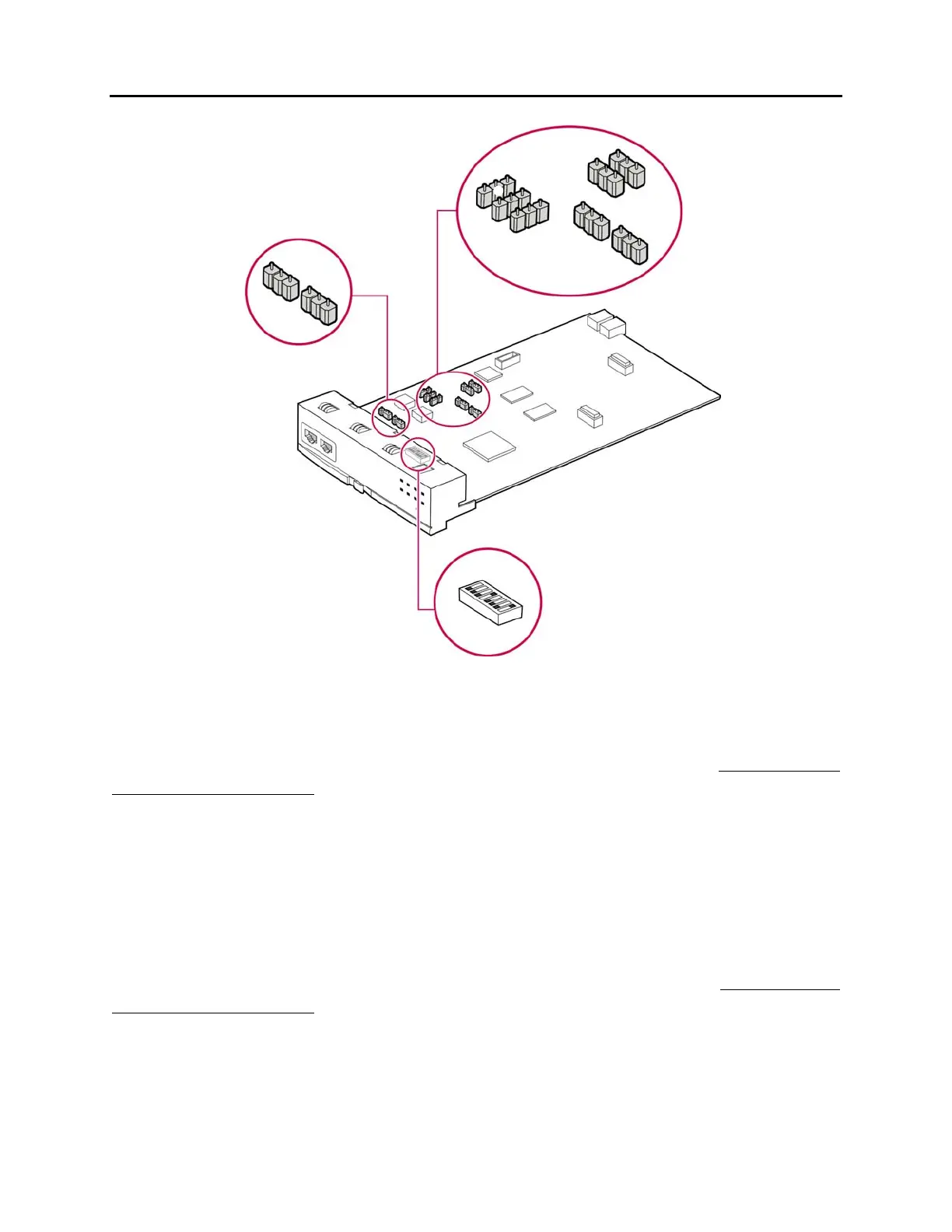

Figure 3.16 Setting Switches and Jumpers on the TEPRI
JUMPER SETTING FOR TEPRI
The TEPRI board comes from the factory with the following jumper settings. These settings
should NOT be changed.
 J1 & J2: Pins 2 & 3 connected
 J3: Pins 2 & 3 connected
 J4~J9: Pins 1 & 2 connected
 Pin 1 is labeled on the board for each jumper.
JUMPER SETTING FOR TEPRIa
The TEPRIa board comes from the factory with the following jumper settings. These settings
should NOT be changed.
 J1 & J2: Connect #1 and #2 for E1 cable #2 and #3 for T1 cable.
SW1
SW8
Off
On
JP
J2
1
J1
1
JP
1
1
JP
JP
1
1
1
1
JP
JP
JP
1
