OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.42
3.3.15 GPLIMT
The Gigabit PoE LAN Interface Module TX (GPLIMT) board provides data transmission through
the intranet. Compared to the PLIM, the GPLIMT board comes with an additional GbE
interface and can provide 12 10/100 Base-T interface ports and 2 1000 Base-TX ports. The
GPLIMT board provides a simple switching hub function. Only one GPLIMT may be installed
per cabinet.
Major Functions
The major functions of the GPLIMT data board are as follows:
 L2 Ethernet Switching
 10/100 Base Full/Half duplex auto-sensing
 VLAN Networking (802.1q)
 Packet Priority Control (802.1p)
 Flow Control (802.3x)
 Multi-casting (IGMP Snooping)
 IEEE 802.3af PoE (Power over Ethernet)
Specification
The specification of the GPLIMT data board is as follows:
 12 10/100 Base-T interface port
 2 10/100/1000 Base-TX interface port
 1 Serial console port (also used as P12)

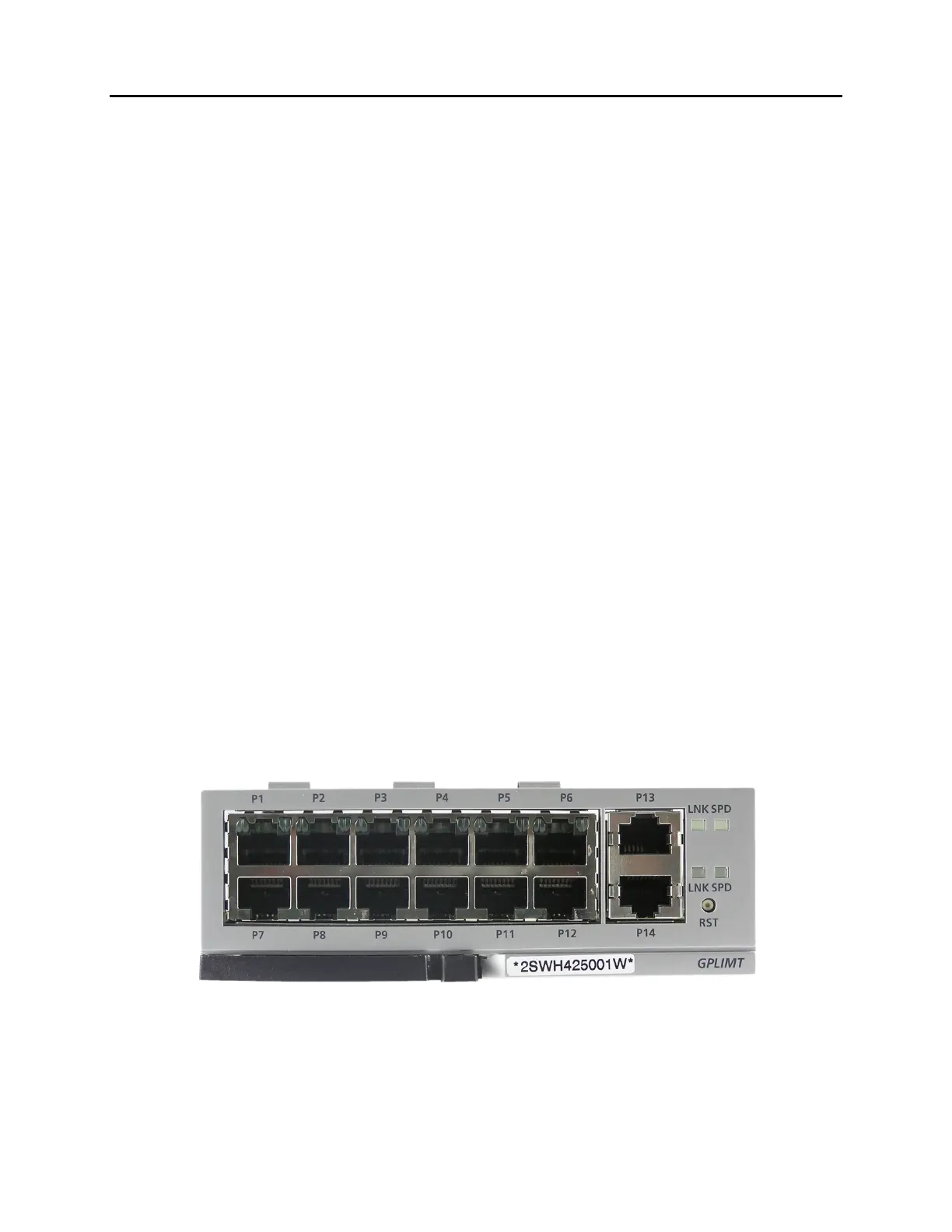

FRONT VIEW OF THE GPLIMT
The front view of the GPLIMT data board is shown in the picture below.
Figure 3.43 Front View of the GPLIMT
