Samsung OfficeServ 7400 - Page 70

OfficeServ 7400 INSTALLATION
TECHNICAL MANUAL PART 3 MAY 2010
3.54
Ports 1 ~ 4
Slot 0
Ports 5 ~ 8
Slot 1
Ports 9 ~ 12
Slot 2
Slot 2
8VPMF-E
Slot 1 VPM-E or
VPMF-E
O
K
NOT O
K
Slot 1
8VPMF-E
Slot 1
8VPMF-E

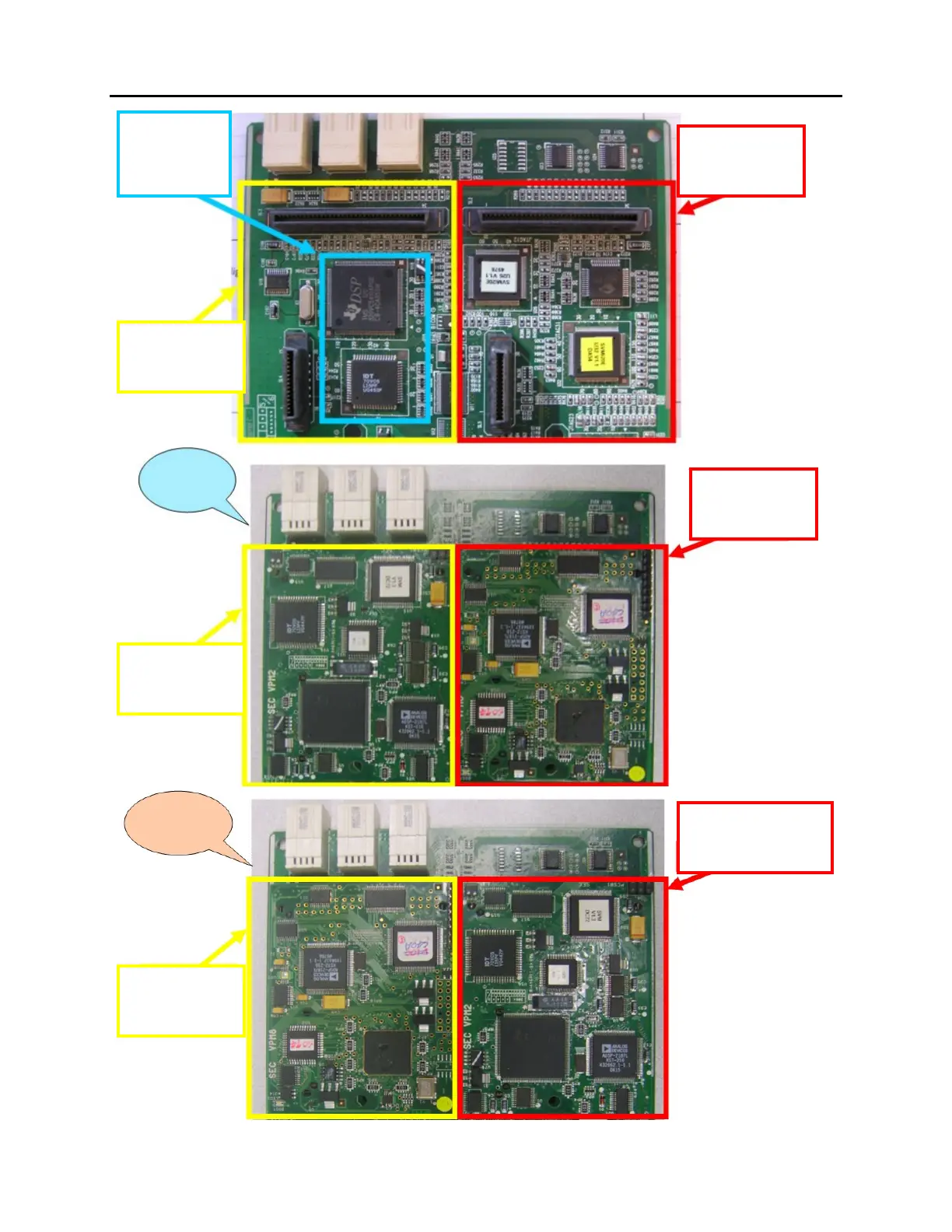

Figure 3.51 VPM-E, VPMF-E and 8VPMF-E Combinations
Embedded
Ports 1 ~ 4 no
connector
provided.
Ports 9 ~ 12
SL2 connectors.
No VPM
installed.
Ports 5 ~ 8
SL3 connectors.
No VPM
installed.
8VPMF-E
Installed in SL2
connectors.
VPM-E or
VPMF-E installed
in SL3
connectors.
8VPMF-E
installed in SL3
connectors.
VPM-E or VPMF-E
Installed in SL2
connectors.
