4.4.5 DADF Test
Test Item[DADF Diagnostic]
- Clutch Test: Pick up clutch, Regi clutch, Duplex clutch
- Motor Test: Scan Motor, Duplex CW, Duplex CCW
4.4.6 Report

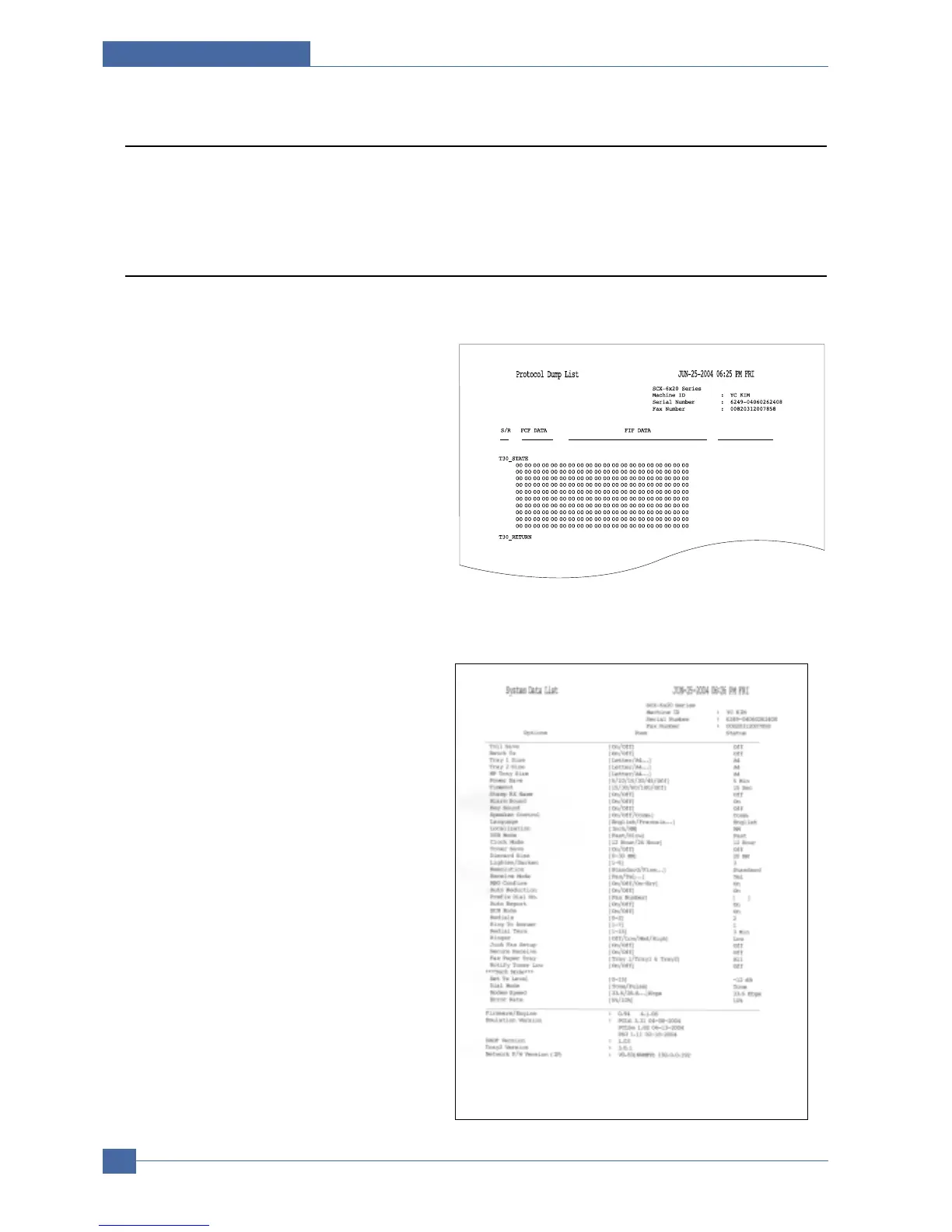

4.4.6.1 Protocol Dump List
This list shows the sequence of the CCITT group 3
T.30 protocol during the most recent sending or
receiving operation. Use this list to check for send
and receive errors. If a communication error occurs
while the machine is in TECH mode, the protocol
list will print automatically.
4.4.6.2 System Data List
This list provides a list of the user system data
settings and tech mode settings.
