Service Manual
5-21
5.16 Feed Ass’y
1. Before you remove the Feed Ass’y, you should
remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
- Side Cover Ass'y (see page 5-12)
- Exit Ass’y (see page 5-15)
- Cover Paper Exit Ass’y(see page 5-15)
- LSU (see page 5-18)
- Main Frame Ass’y (see page 5-19)
- MP Ass’y(see page 5-20)

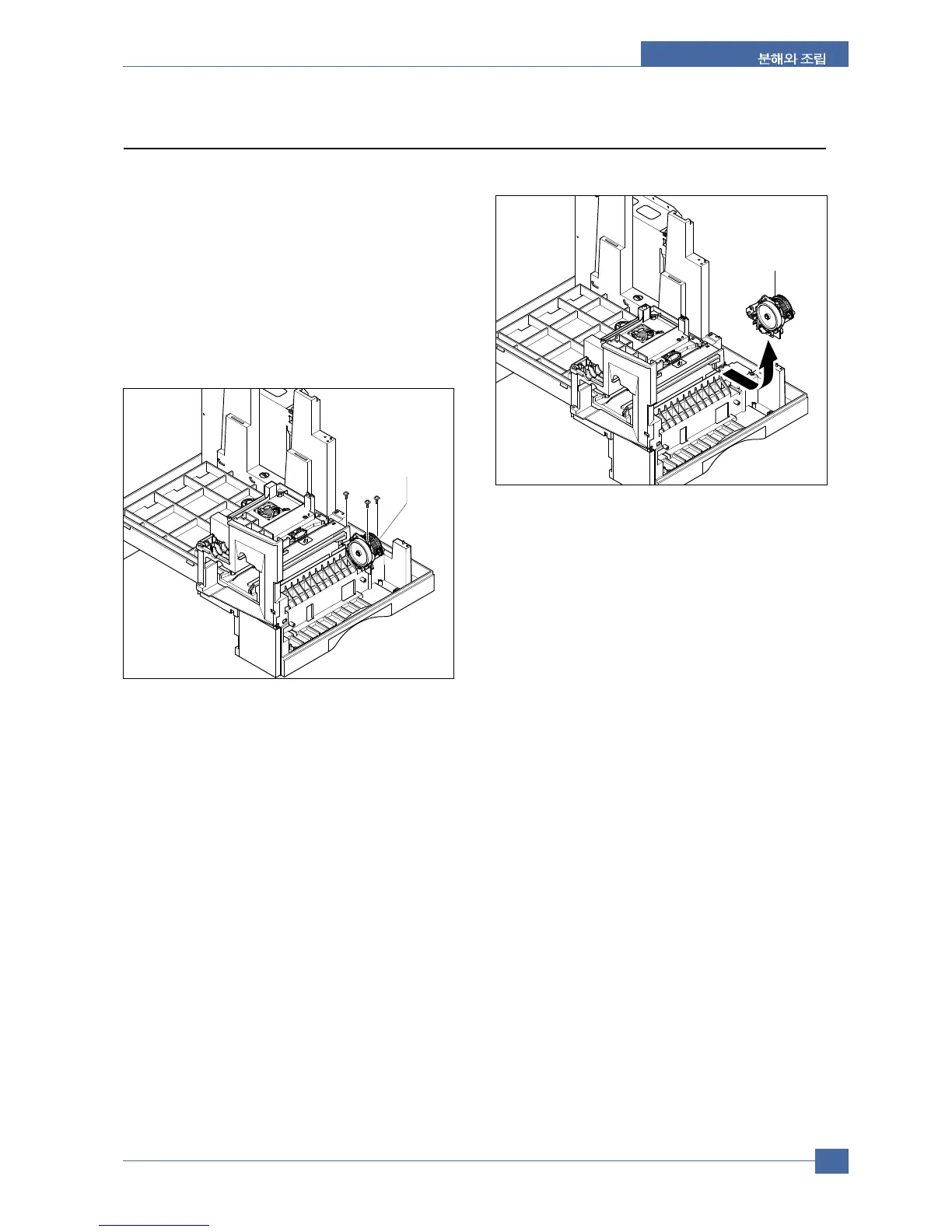

2. Remove the three screws.
3. Pull the Feed Ass'y upward and remove it.
MP Ass'y
Feed Ass'y
