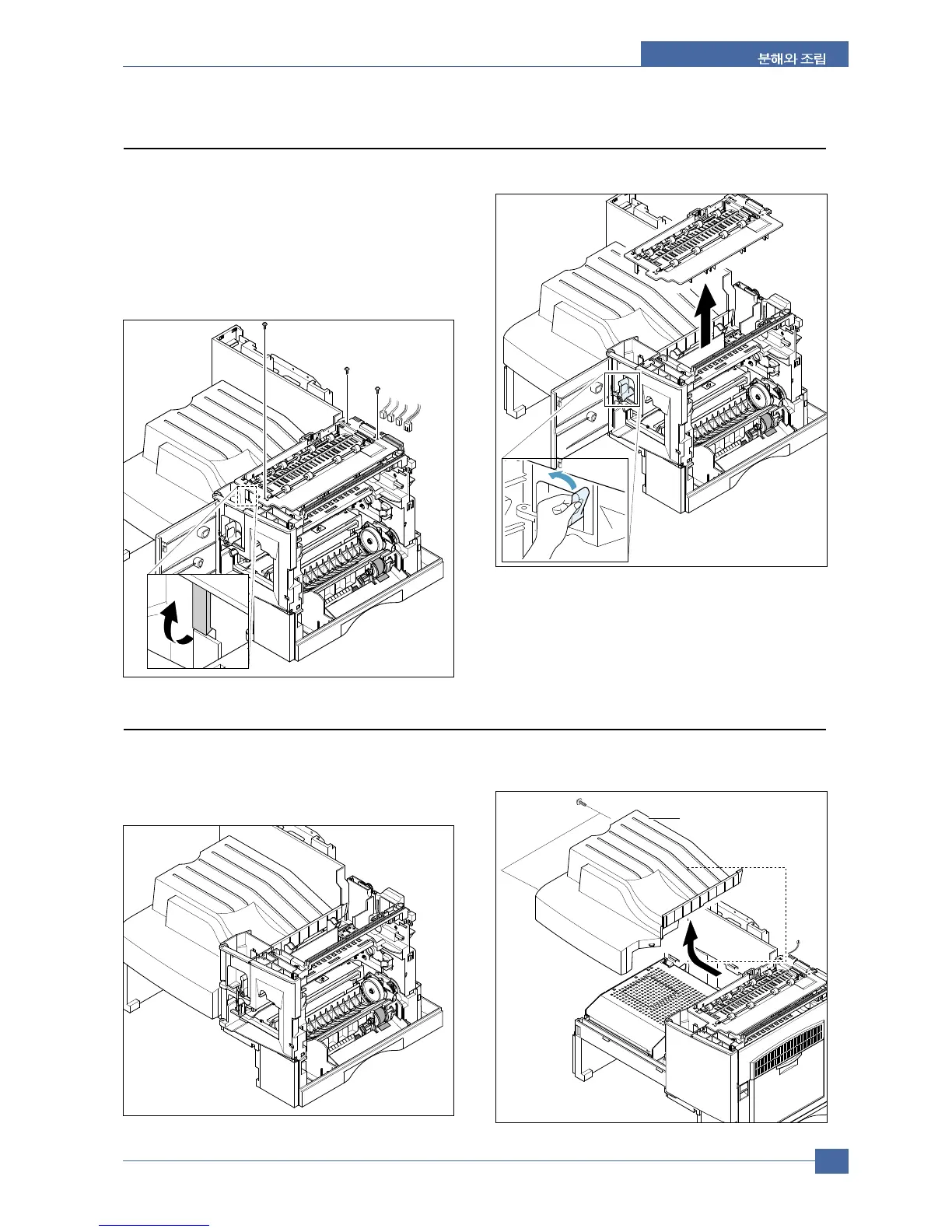

5.8 Exit Ass'y
1. Before you remove Exit Ass'y, you should remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
2. Remove three screws, and then untie the harness
from the Exit Upper. Unplug one connector from the
Main PBA and unlatch the Dummy Base Frame using
a flat blade screwdriver, as shown below.
3. Lift the exit ass'y and remove it.
5.9 Cover Paper Exit Ass'y
1. Before you remove the Cover Paper Exit Ass'y, you
should remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
2. Remove two screws and Cover Paper Exit Ass'y, as
shown below.
Cover Paper Exit Ass'y
