5.12 LSU (Laser Scaning Unit)

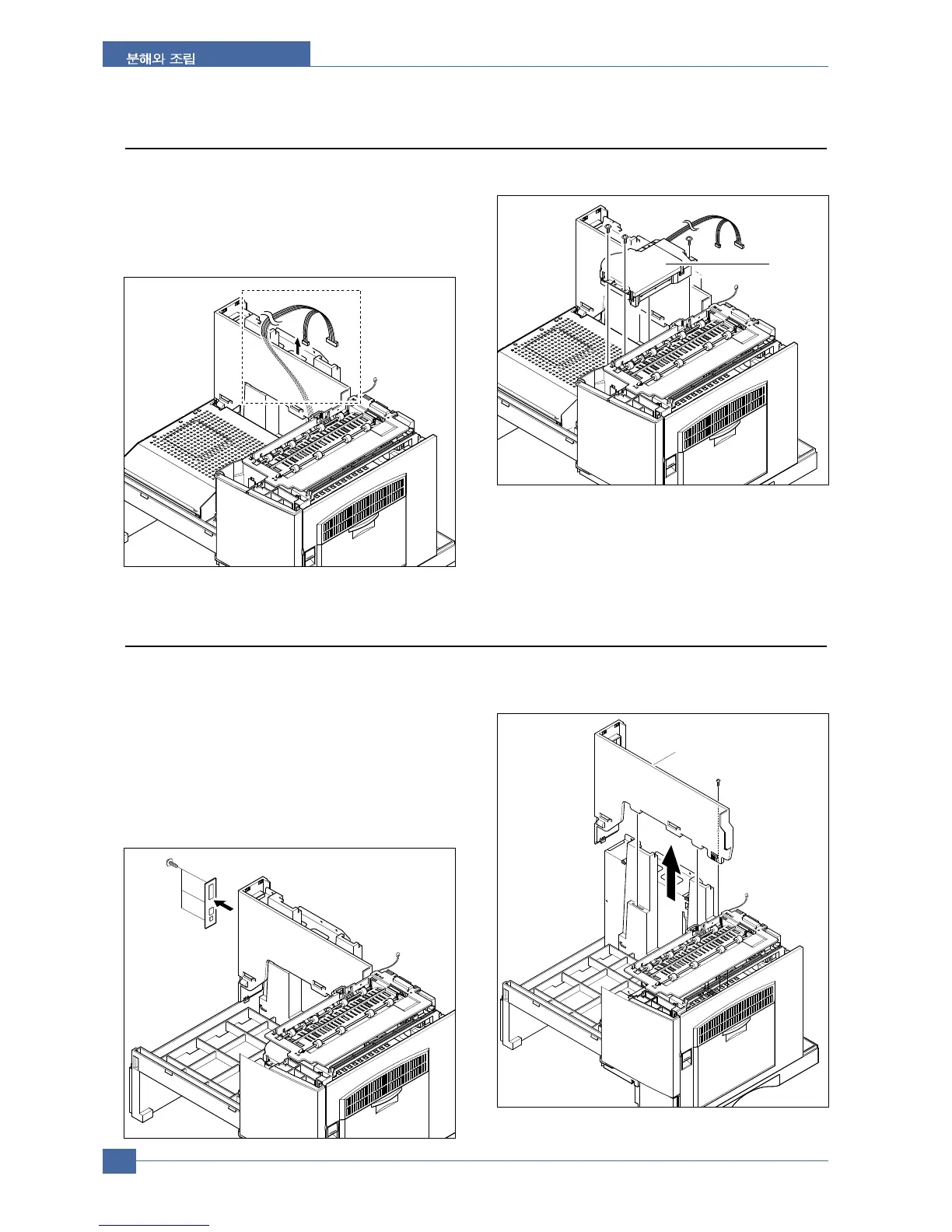

1. Before you remove the LSU, you should remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
- Cover Paper Exit Ass’y (see page 5-15)
2. Unplug the two connectors.
3. Remove the three screws and take out the LSU.
LSU
5.13 Cover Exit Rear
1. Before you remove the Cover Exit Rear, you should
remove:
- Rear Cover (see page 5-1)
- Scanner Ass'y (see page 5-2)
- Exit Ass'y (see page 5-15)
- Cover Paper Exit Ass’y(see page 5-15)
- SMPS (see page 5-17)
2. Remove the three screw and take out the Panel
Connect MPF.
3. Remove the one screw and Cover Exit Rear, as
shown below.
Cover Exit Rear
