Samsung Electronics
Service Manual
5-12

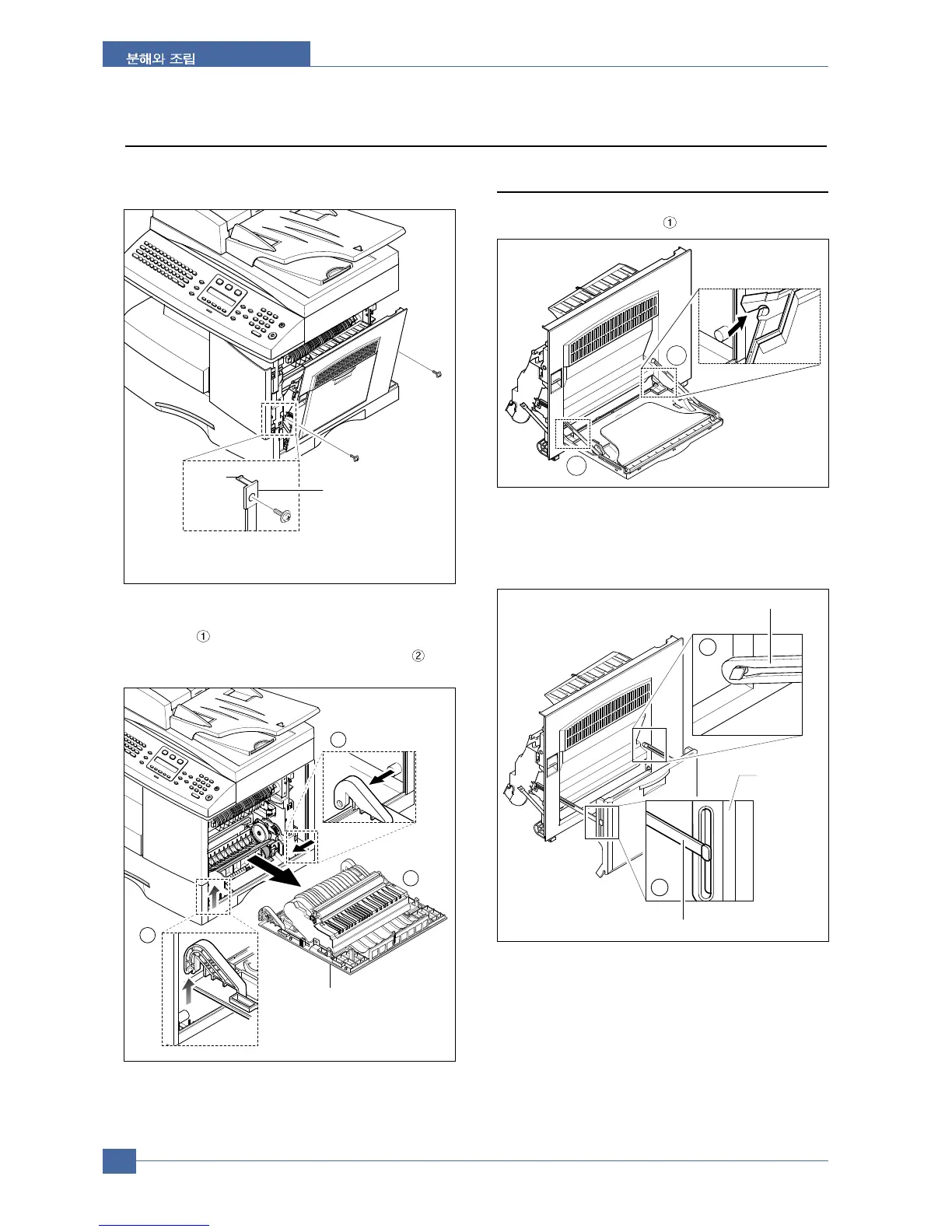

5.6 Side Cover Ass’y
1. Remove two screws to release the Stopper securing
the Side Cover to the Main Frame.
2. Lift hinge
to release it and then slide the Side
Cover Ass’y towards the front to release hinge
and
lift out the cover.
* MP-Tray
1. Pull firmly on both hinges to release them.
2. Taking care not to damage the Tray Links position the
Tray Case so that the Tray Links are at 45° and
release the Tray Links from the slot in the Tray Case.
1
1
MP Tray
2
1
Tray Link
Tray-Case
Side Cover Ass'y
2
1
3
